Ergotron's LX Pro on a wall base, for one screen of 1.8 to 10 kg and up to 34 inches. Constant Force lift through 33 cm, up to 64 cm of reach, folds to 9 cm from the wall, and Ergotron's 10-year warranty.
Ergotron LX Pro Wall
A Screen Where There Is No Desk

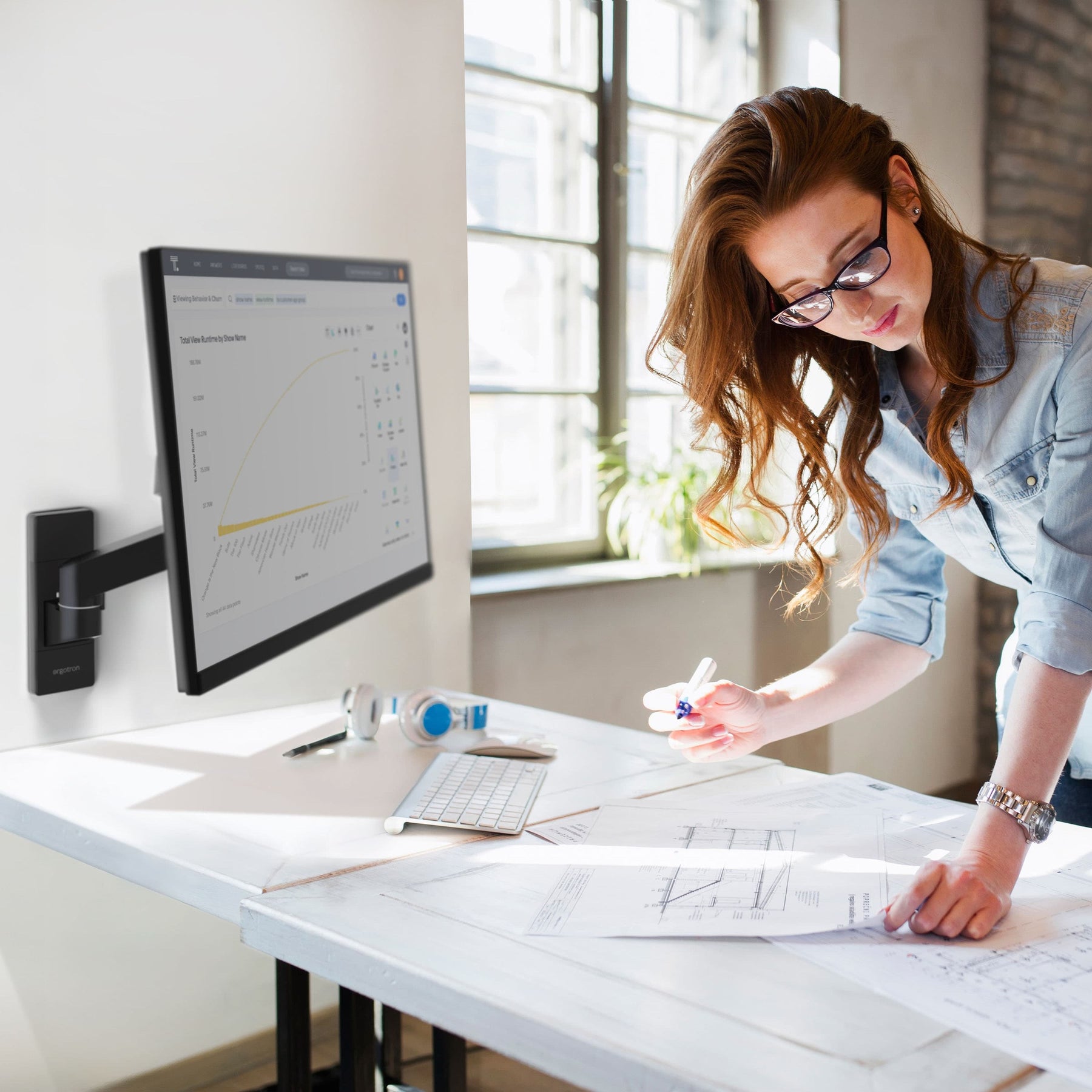

The LX Pro Wall Arm takes the LX Pro and puts it on a wall base. It holds one screen of 1.8 to 10 kg and up to 34 inches, with 33 cm of lift and up to 64 cm of reach, beside a drafting table, a bench, a reception counter or a bed.

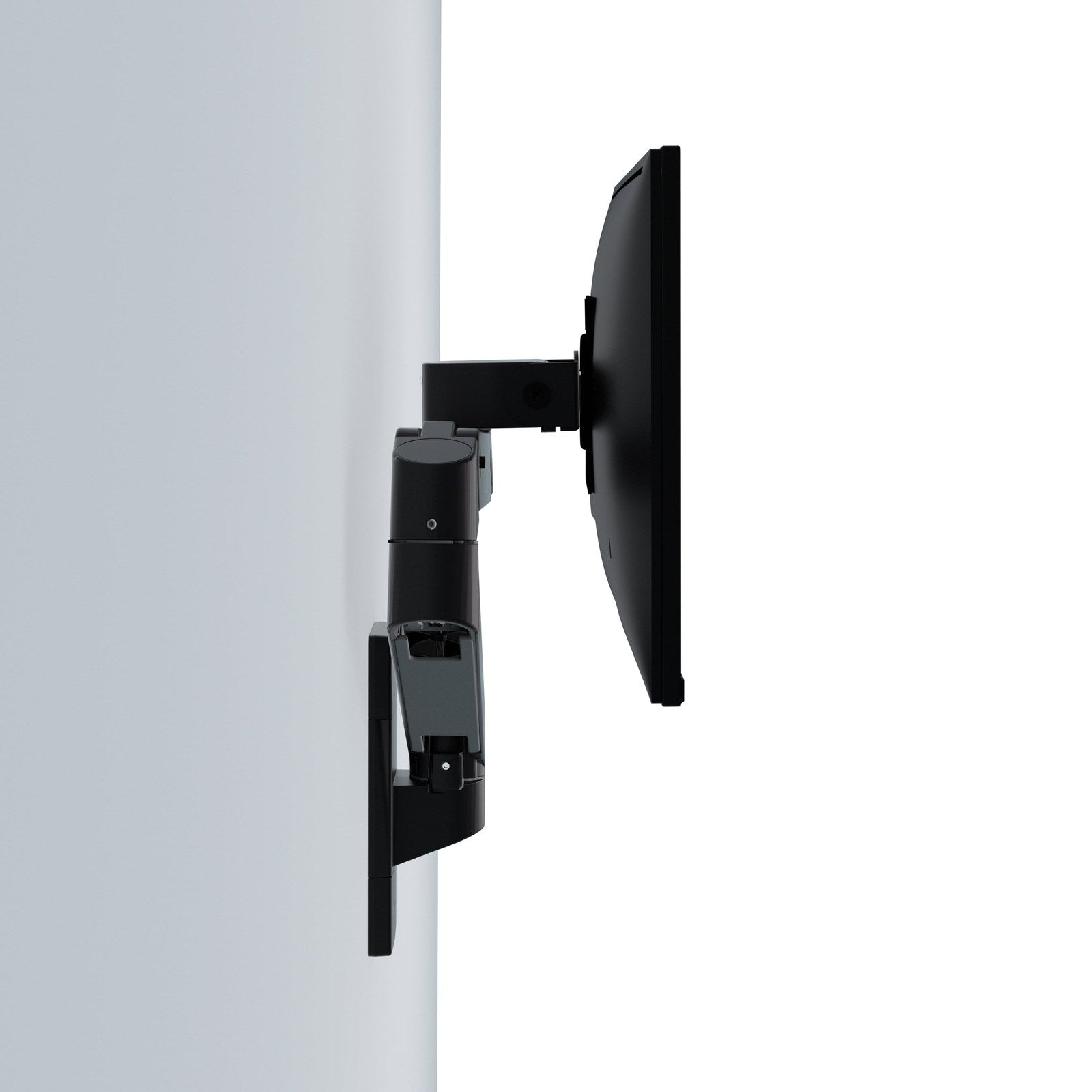

When it is not in use, the arm folds the screen back to 9 cm from the wall.
Where It Works

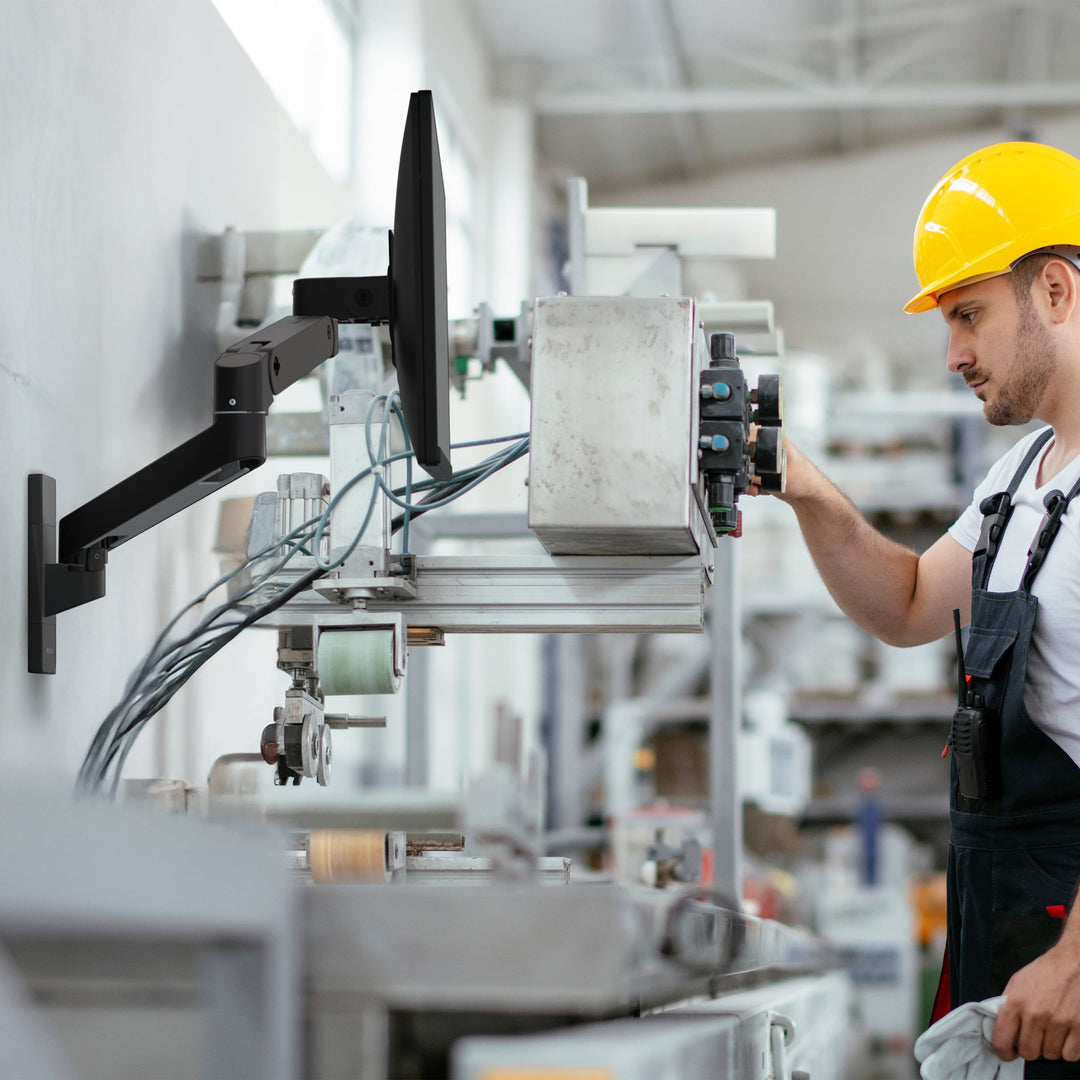

Benches, Workshops and Clinics
Anywhere the work surface has to stay clear, or there is no desk at all, a wall arm puts the screen at eye level and swings it away again. The screen tilts 85° (70° up, 15° down), pans 180° and rotates 360°; the base pans 360°, or 180° with the rotation stop engaged.
The arm and screen load is carried by the wall, so it should be fixed into studs or solid masonry. Ask us about installation on 02 9640 0642.
Ergotron LX Pro Wall Monitor Arm installation and adjustment
The Details
Five Things That Make It an LX Pro Wall Arm
The parts, the lift, the wall base, the rating and the rotation stop.

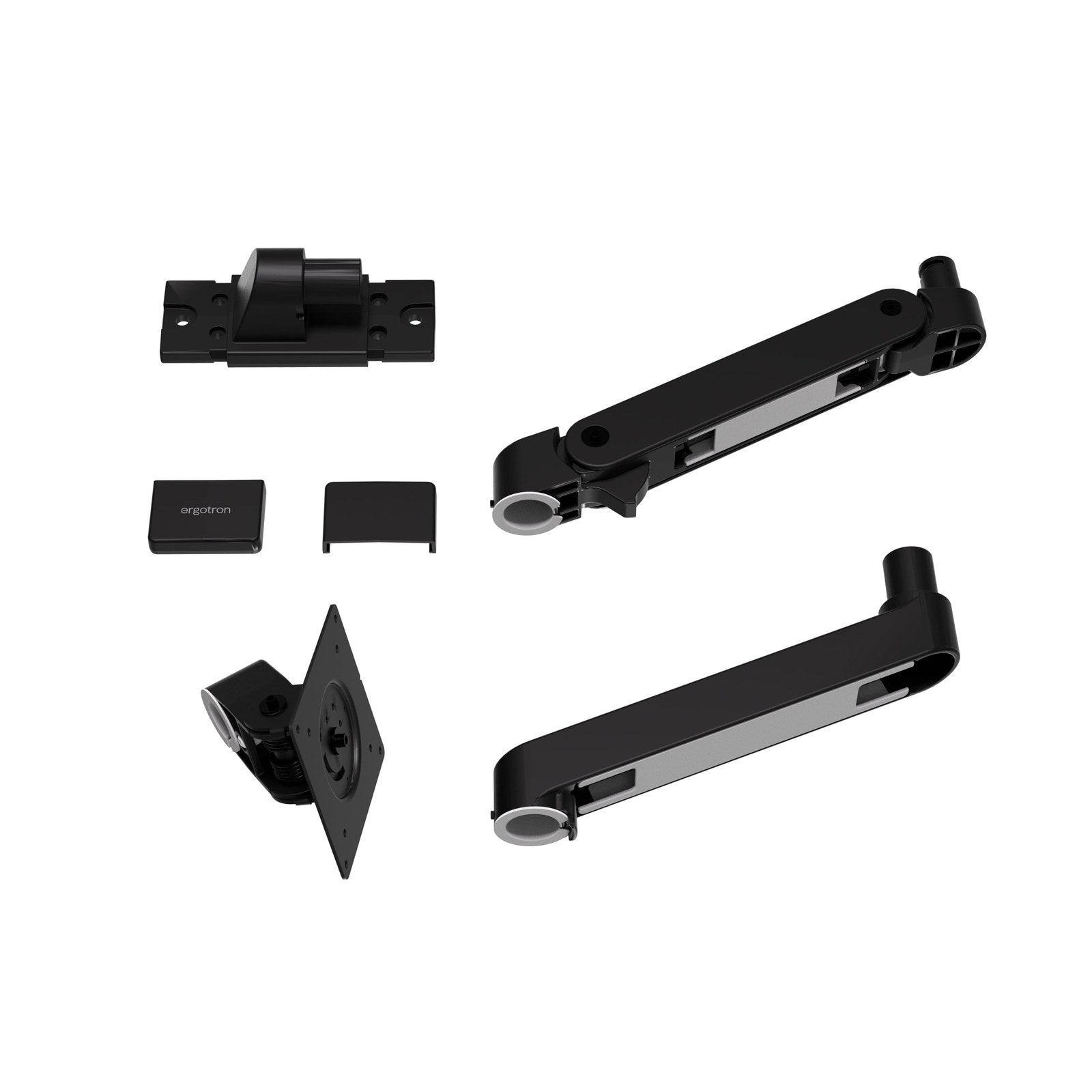

Four Parts
Wall base, arm, extension and a detachable monitor pivot.

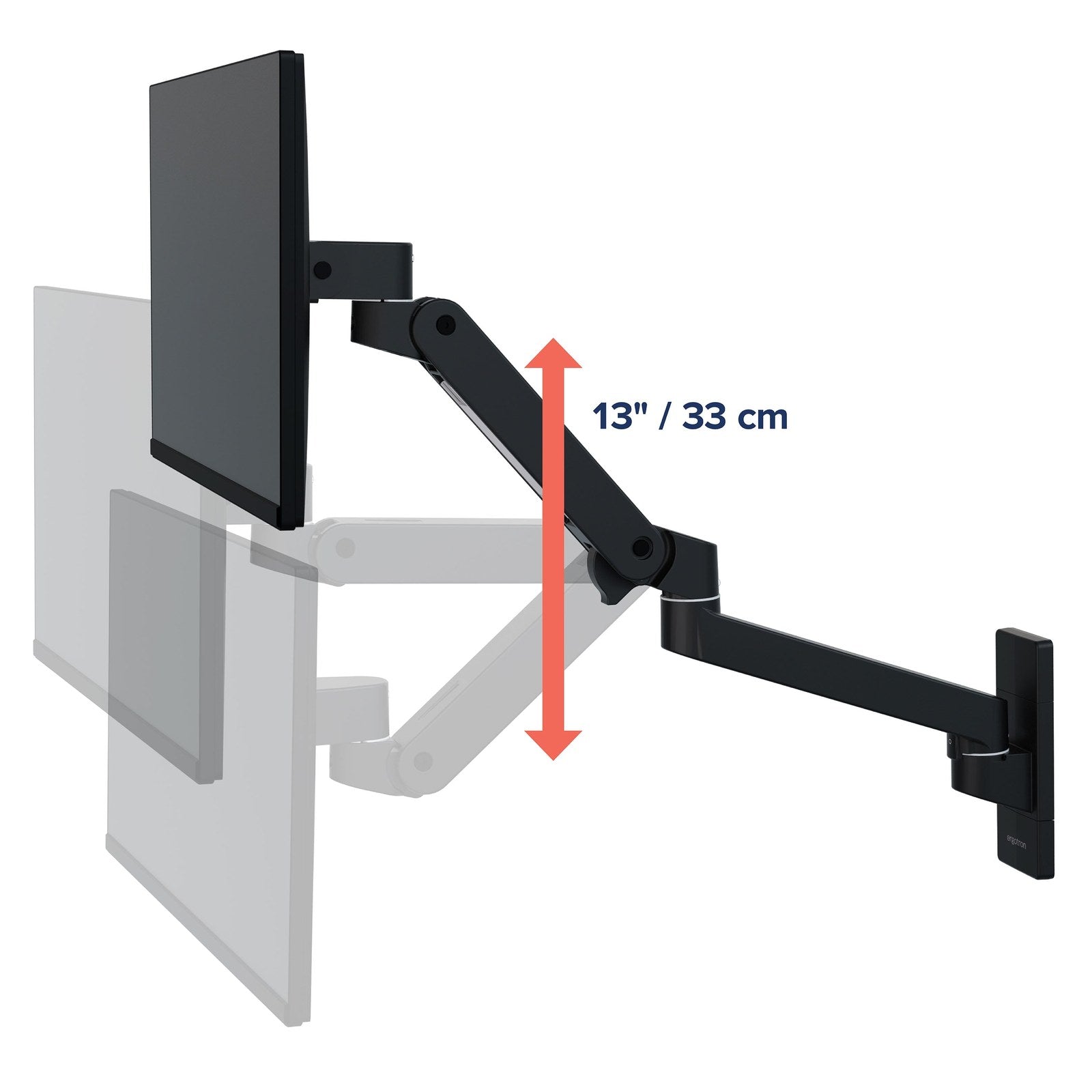

33 cm of Lift
Constant Force™ lift moves the screen with a light, even touch.
Wall Base
The base fixes to the wall; the arm pans 360°, or 180° with the stop.
1.8 to 10 kg
Screens up to 34 inches on VESA 75 or 100.

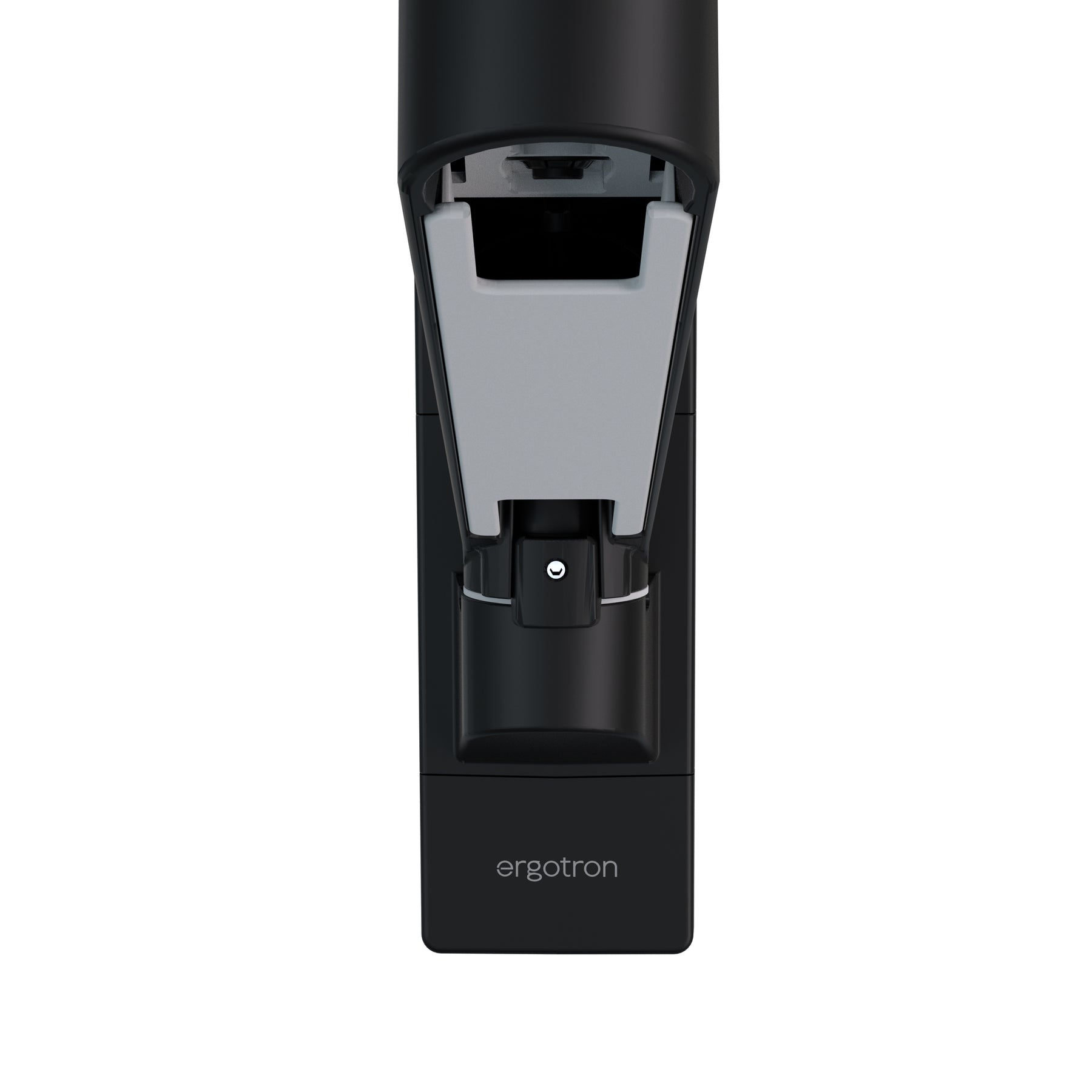

Rotation Stop
The wall base pans 360°, or 180° with the rotation stop engaged.
The Numbers
- Screen Weight
- 1.8–10 kg
- Screen Size
- Up to 34 in
- Lift
- 33 cm
- Extension
- Up to 64 cm
- Folded Depth
- 9 cm
- Warranty
- 10 years
Figures are from Ergotron's LX Pro Wall Monitor Arm specification sheet (2025). Weigh your screen without its stand; fix the base into studs or solid masonry.
Set-Up
Set the Spring Before the Screen Goes On

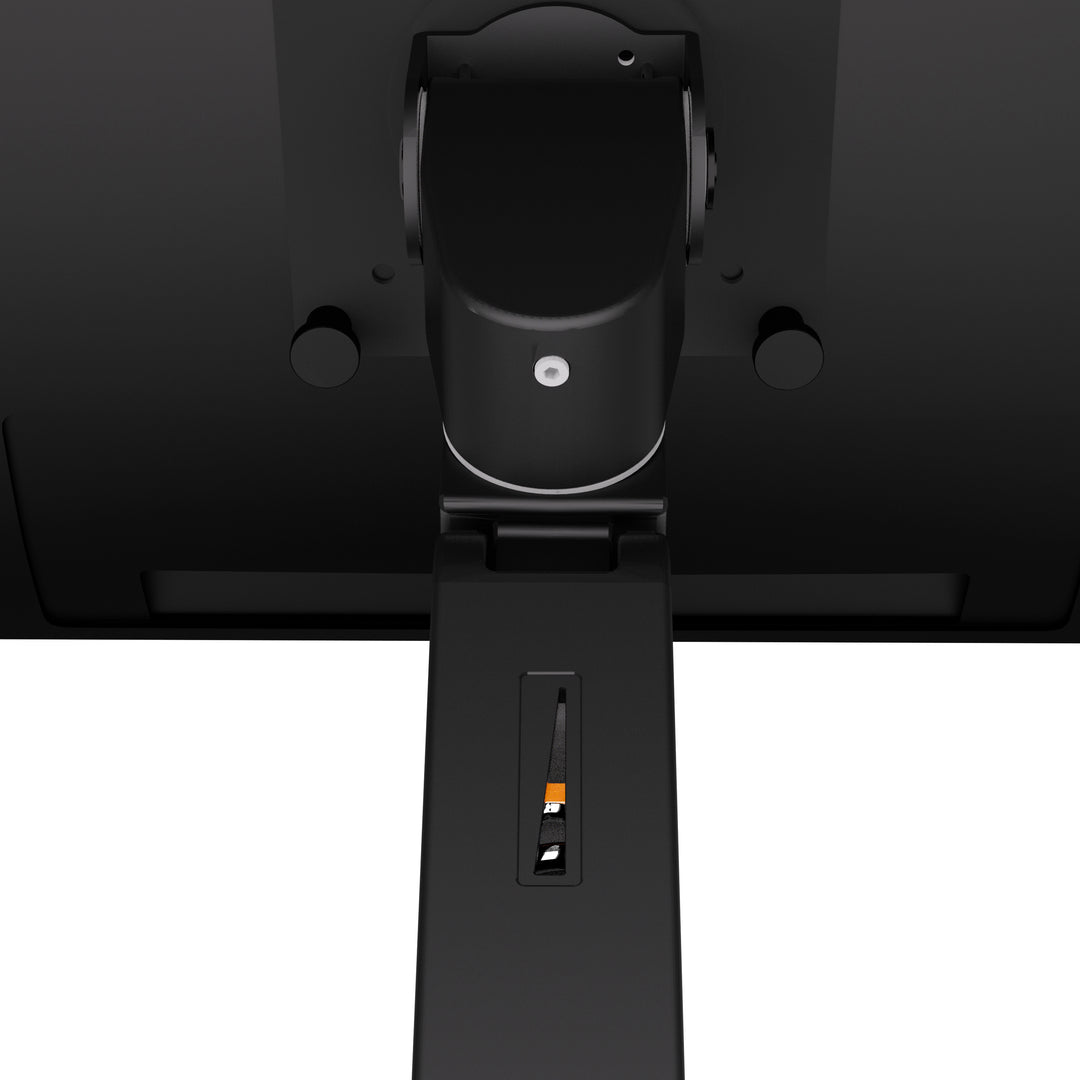

The LX Pro's tension indicator shows the spring setting, so the arm can be set to the screen's weight before the screen goes on, which saves holding a screen at head height on a wall while you adjust it.

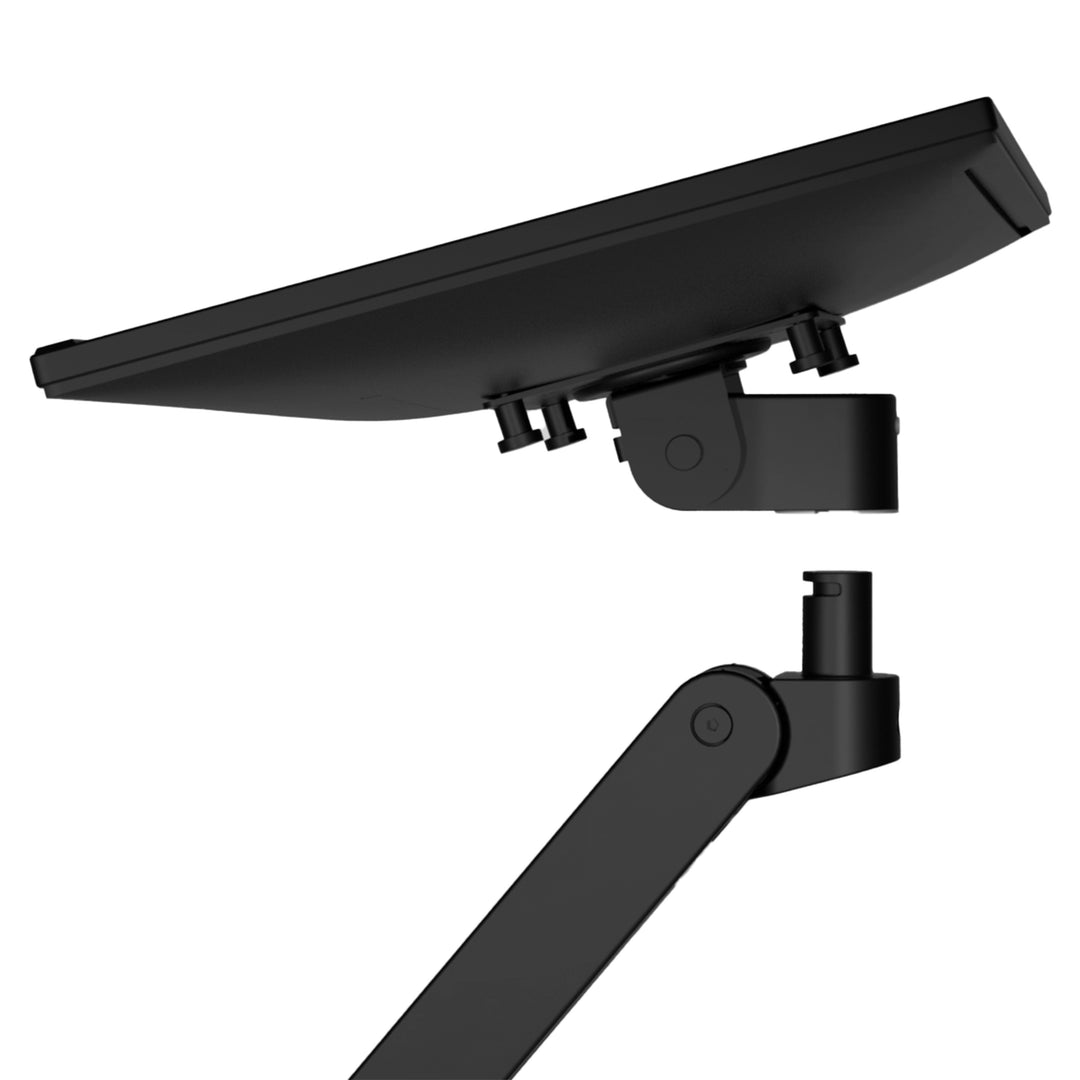

The monitor pivot detaches from the arm, so it can be fitted to the screen first. The base pans 360°, or 180° with the rotation stop engaged.

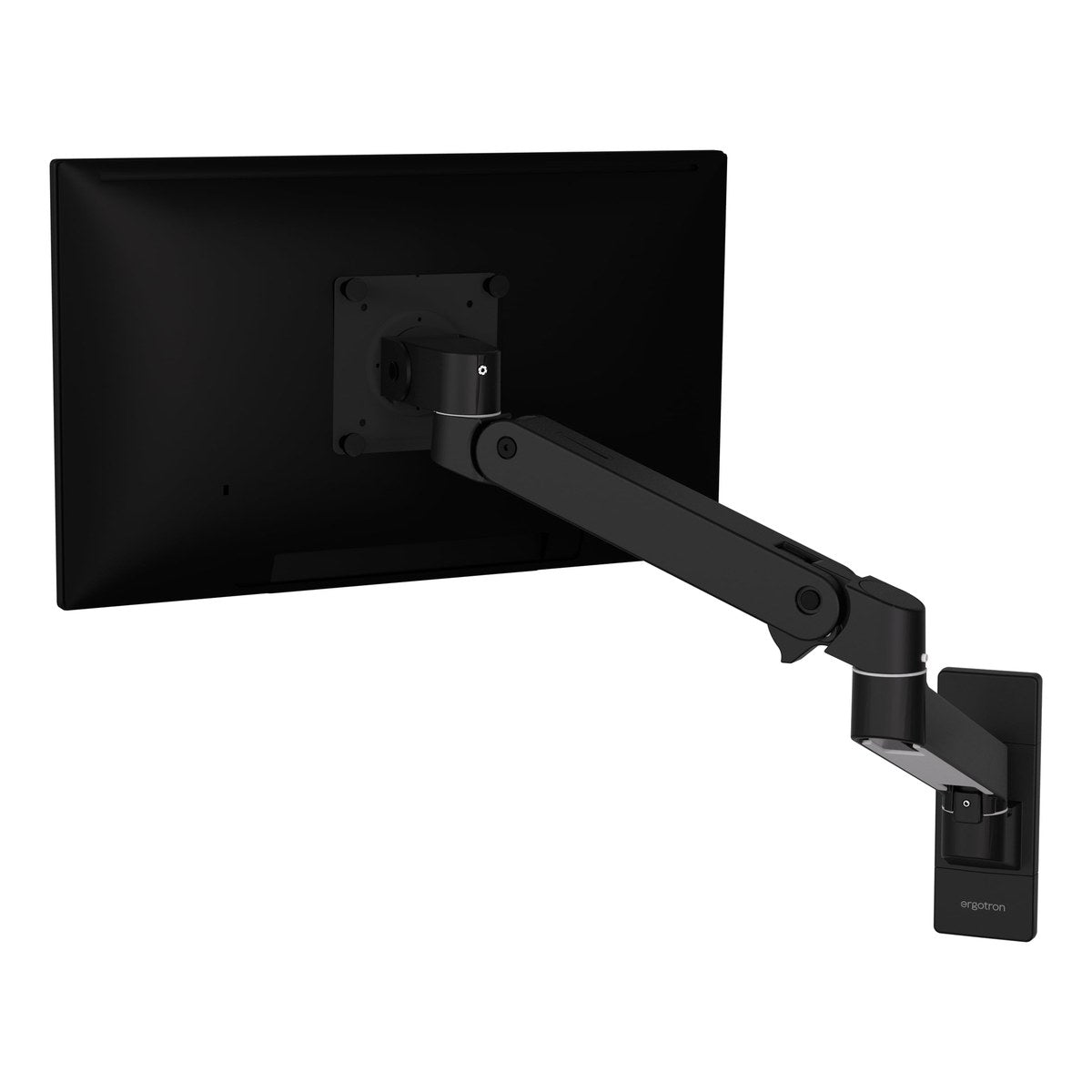

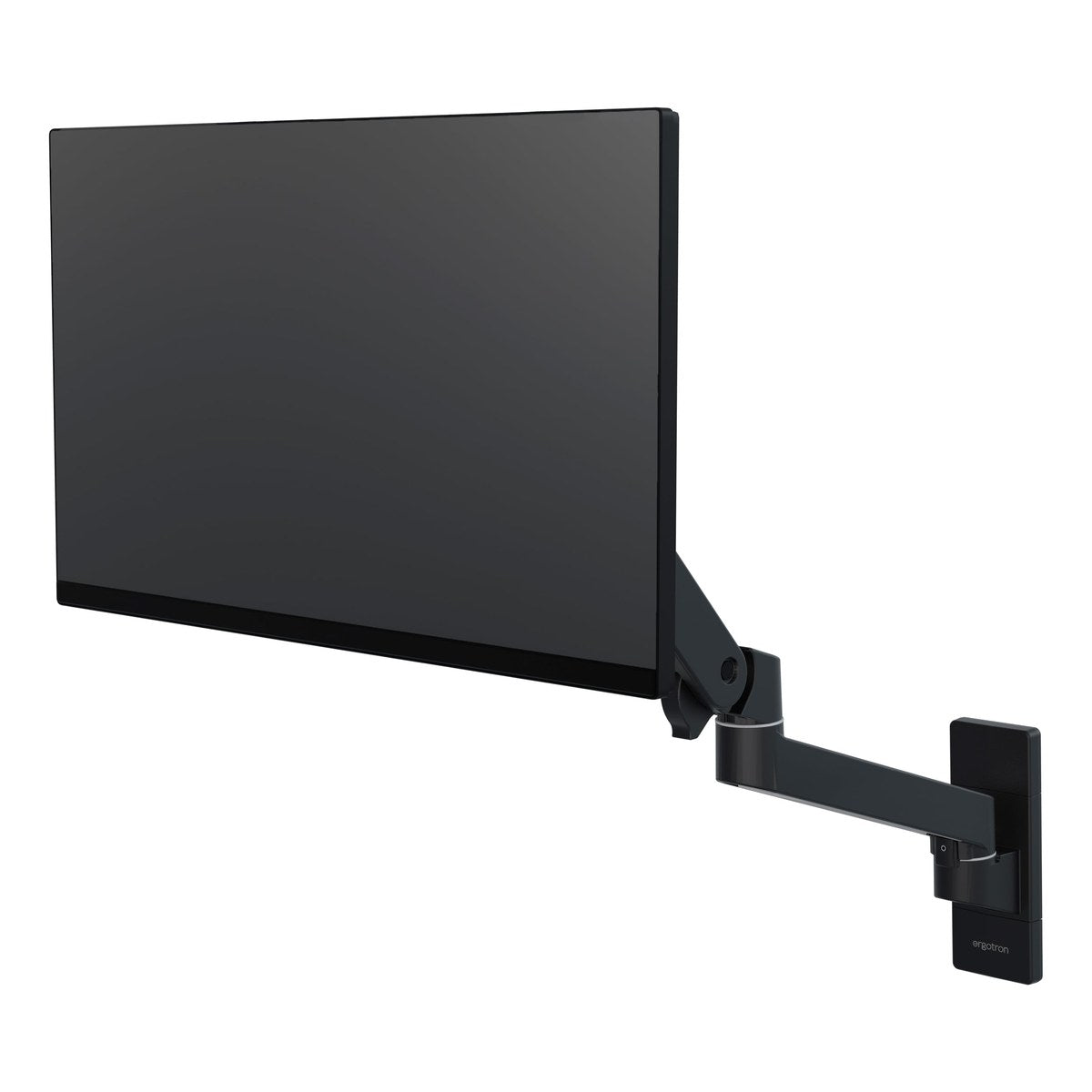

LX Pro Wall Arm, Black
This Model
This listing is the Ergotron LX Pro Wall Monitor Arm in matte black (45-683-292). In the box: arm, extension, monitor pivot, wall-mount base and attachment hardware.
Need a keyboard on the wall too? See the LX Pro Wall Mount System. For a desk, the LX Pro Desk Arm.
Why We Stock the Ergotron LX Pro Wall Arm
We stock the LX Pro Wall Arm for screens that need to be off the desk entirely: beside a bench, a bed, a counter or a drafting table. It brings the LX Pro's Constant Force™ lift and 85° of tilt to a wall base and folds back to 9 cm when not in use.
Ergotron's warranty terms give 10 years on LX monitor arms, including the LX Pro, and claims are handled by Chair Dinkum in Sydney on 02 9640 0642. Your rights under the Australian Consumer Law for faulty or damaged goods are separate and are not limited by it.
Features & Specifications
Key Features
-Single monitor arm on a wall-mount base
-Constant Force™ lift: Ergotron's spring mechanism keeps the effort small and even through the range of movement
-Screen weight 1.8–10 kg
-Screens up to 34 in
-Lift 33 cm
-Extension up to 64 cm
-Folded depth 9 cm
-Tilt 85° (70° up / 15° down); monitor pan 180°; base pan 360° (180° with rotation stop engaged); screen rotation 360°
-VESA 75 × 75 and 100 × 100
-Shipping weight 5.2 kg
-Finish: matte black 45-683-292
-Warranty: 10 years (Ergotron)
Downloads
Chair Dinkum — warrantyLink →Dimensions
Screens1
Screen Weight1.8–10 kg
Screen SizeUp to 34 in
Lift33 cm
ExtensionUp to 64 cm
Folded Depth9 cm
Tilt85° (70° up / 15° down)
Screen Rotation360°
VESA75 / 100 mm
Shipping Weight5.2 kg
Part Number45-683-292
Warranty10 years
Figures are from Ergotron's LX Pro Wall Monitor Arm specification sheet (2025). Ergotron does not publish the arm's own weight. Weigh your screen without its stand. Warranty terms are on our warranty page.
Frequently Asked Questions
If the screen weighs 1.8 to 10 kg without its stand, is 34 inches or smaller and has 75 or 100 mm VESA holes, it is within Ergotron's rating.
The arm and screen load is carried by the wall, so fix the base into studs or solid masonry rather than plasterboard alone. If you are unsure what is behind the wall, use a qualified installer. Call 02 9640 0642 if you want help.
Ergotron's sheet gives a folded depth of 9 cm from the wall.
Not to this arm. The LX Pro Wall Mount System adds a keyboard arm and tray on a wall track.
10 years. Ergotron's warranty terms give a 10-year warranty on LX monitor arms, and the product's specification sheet states 10 years. Claims are handled by Chair Dinkum in Sydney on 02 9640 0642; full terms are on our warranty page. Your rights under the Australian Consumer Law for faulty or damaged goods are separate and are not limited by it.
Call 02 9640 0642 to check which arms are on display at our Pyrmont showroom, 1/209 Harris Street, before you visit. We can also check your screen and wall over the phone before you order.
