Ergotron's LX Pro Wall Mount System: a monitor arm, keyboard arm, keyboard tray, slide-out mouse tray and mouse holder on a 34-inch wall track, for a standing workstation with no desk. Screens of 1.8 to 10 kg up to 34 inches, keyboards to 2.2 kg, and a 10-year warranty.
Ergotron LX Pro Wall Mount System
A Standing Workstation With No Desk

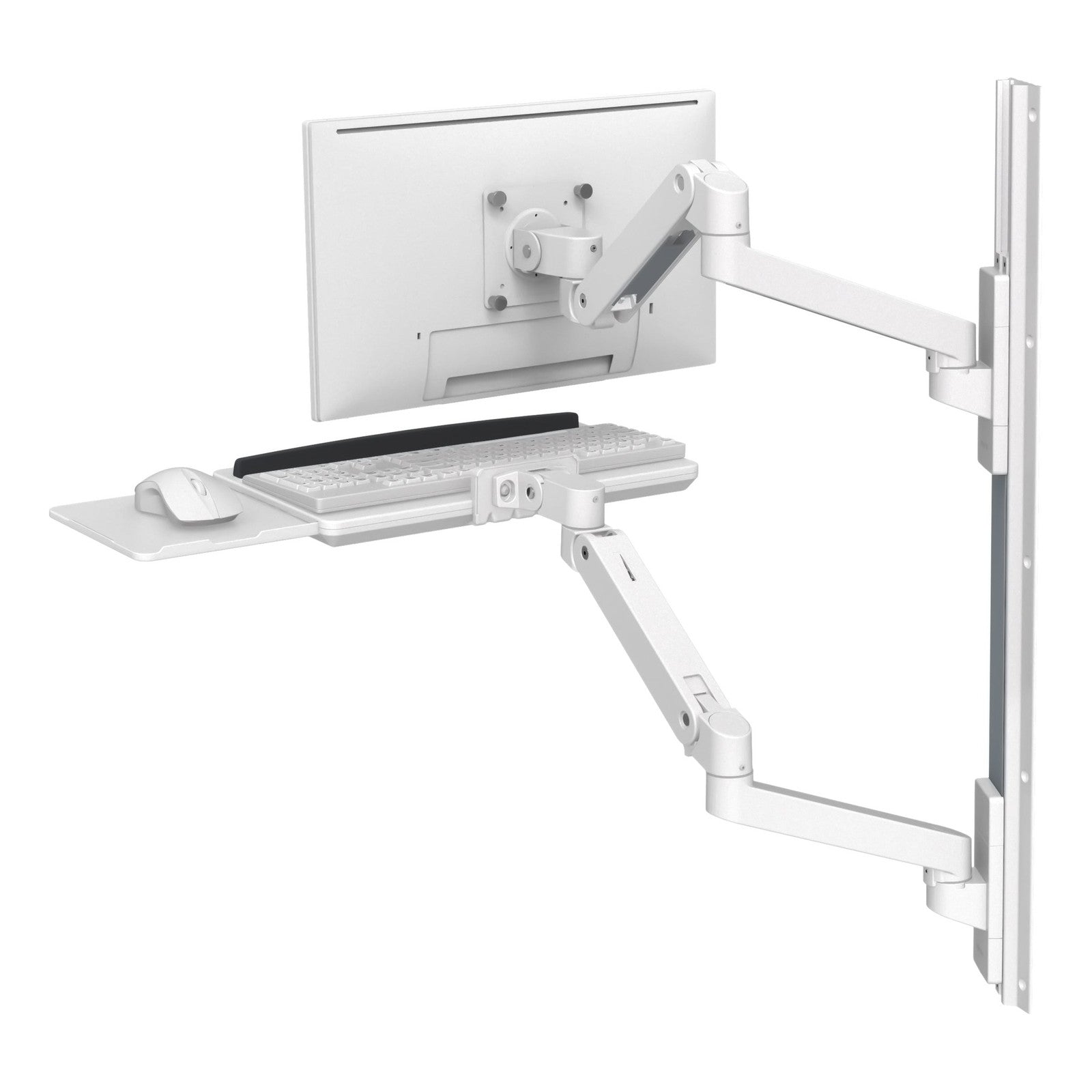

The LX Pro Wall Mount System puts a monitor arm and a keyboard arm on a wall track, with a keyboard tray, a slide-out mouse tray and a mouse holder. It suits clinics, labs, warehouses, workshops and anywhere a shared computer is used standing for a few minutes at a time.

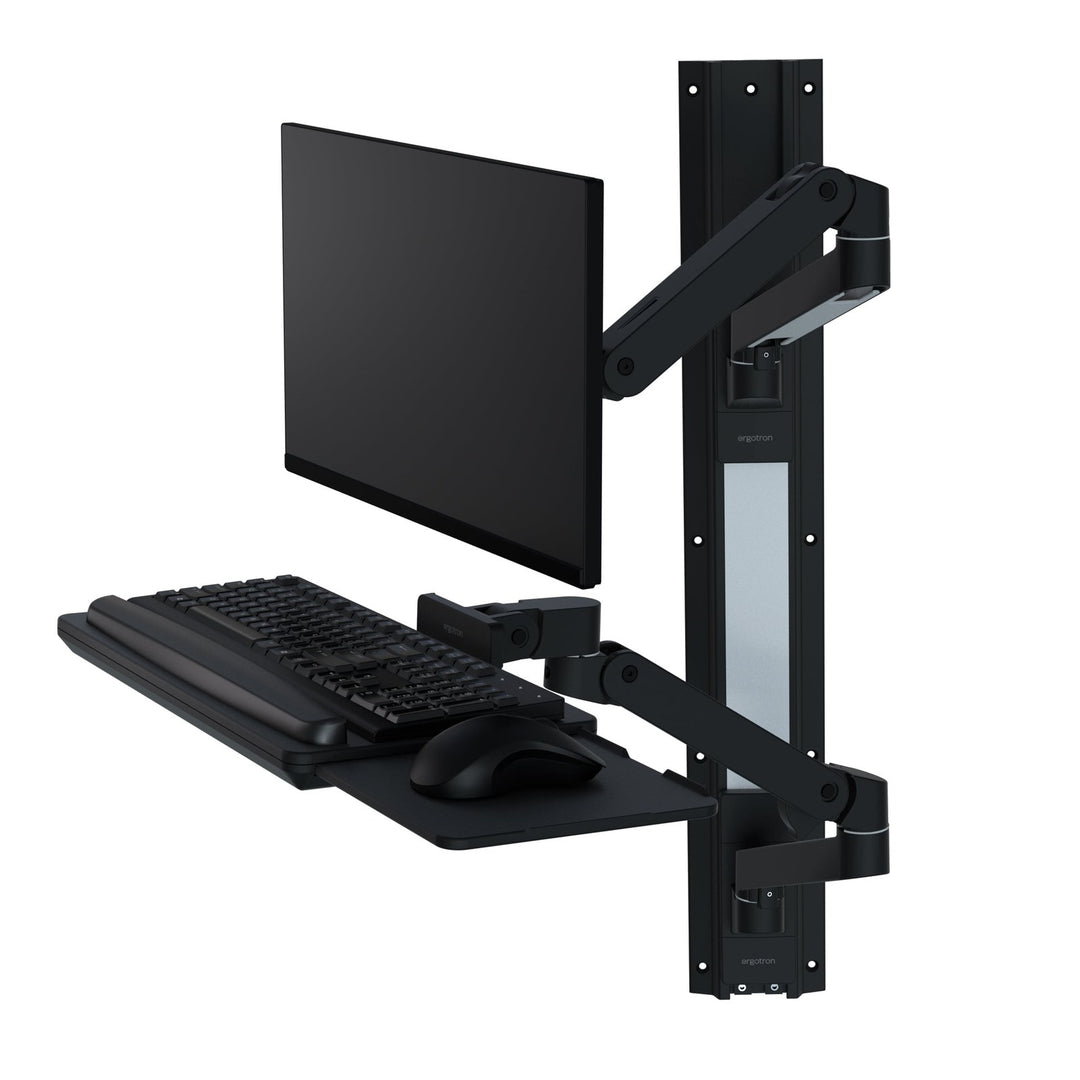

The monitor arm takes a screen of 1.8 to 10 kg and up to 34 inches; the keyboard tray takes up to 2.2 kg. The render shows the black version; this listing is white.
Set-Up
Fixed to the Wall, Set to Each User

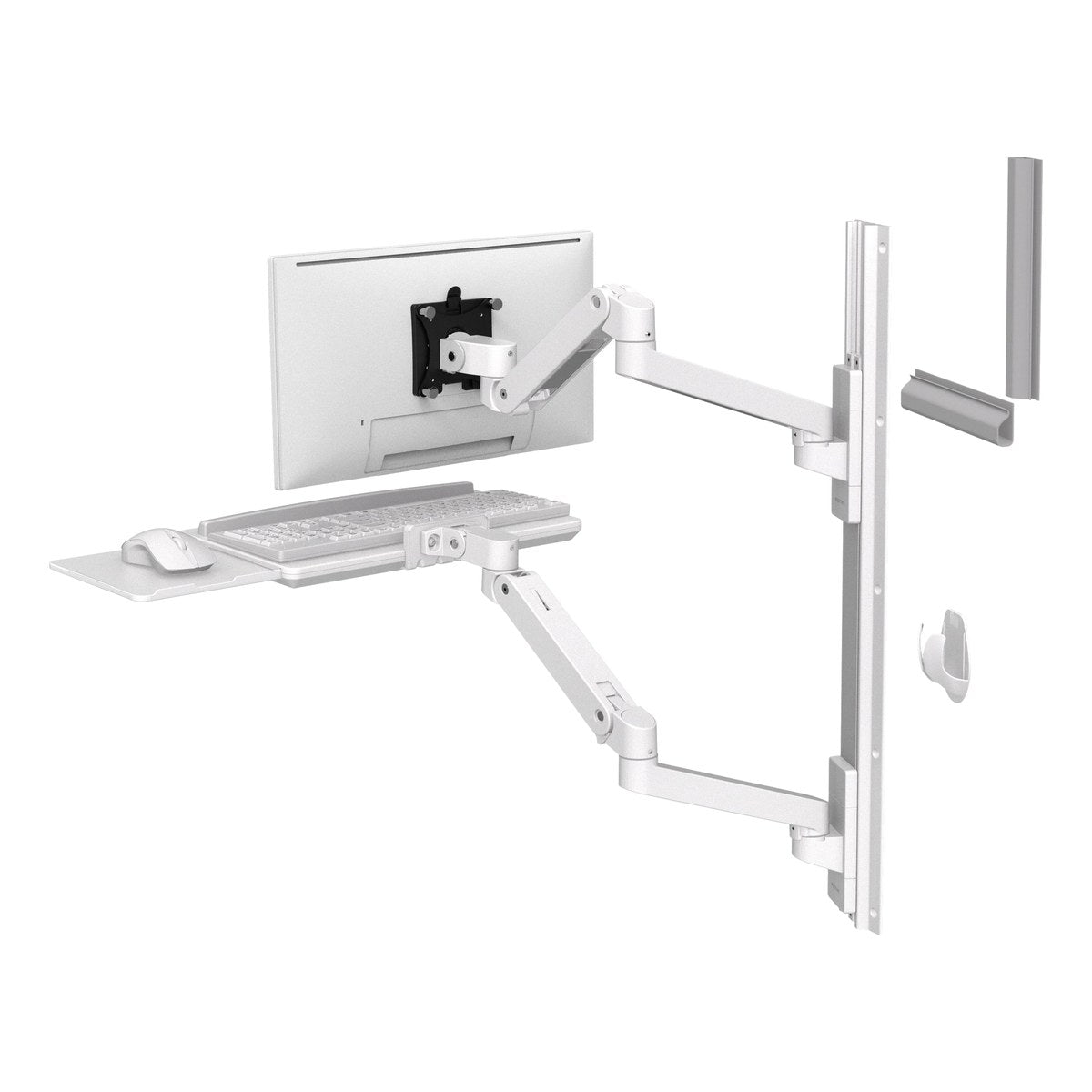

The monitor arm and keyboard arm mount on two wall bases on one 34-inch wall track, with two cable channels to carry the cables. The monitor arm reaches up to 64 cm with 33 cm of lift; the keyboard arm reaches up to 89 cm.
Fasteners for wood-stud or concrete walls are in the box. The system carries its load into the wall, so fix it into studs or solid masonry; ask us about installation on 02 9640 0642. The detail photo shows the wall base in black.
Ergotron LX Pro Wall Mount System installation and adjustment
The Details
Five Things That Make It an LX Pro Wall System
The full workstation, the two arms, the fixings, the lift and the reach.
Monitor, Keyboard, Mouse
Monitor arm, keyboard tray, slide-out mouse tray and mouse holder on one wall track.
Two Arms on One Track
The monitor arm reaches up to 64 cm and the keyboard arm up to 89 cm.
Fixings Included

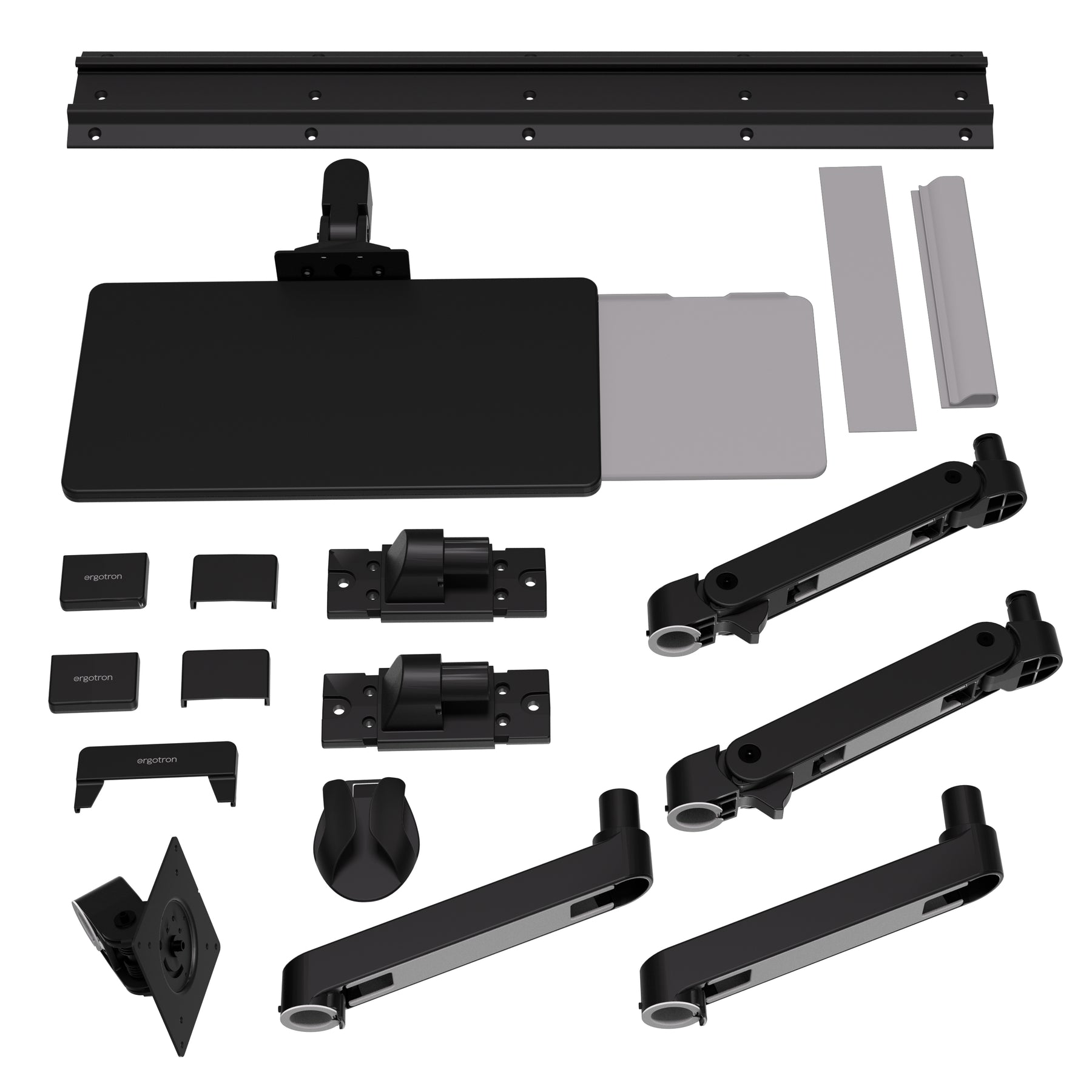

Fasteners for wood-stud or concrete walls are in the box, with two cable channels. Shown in black.

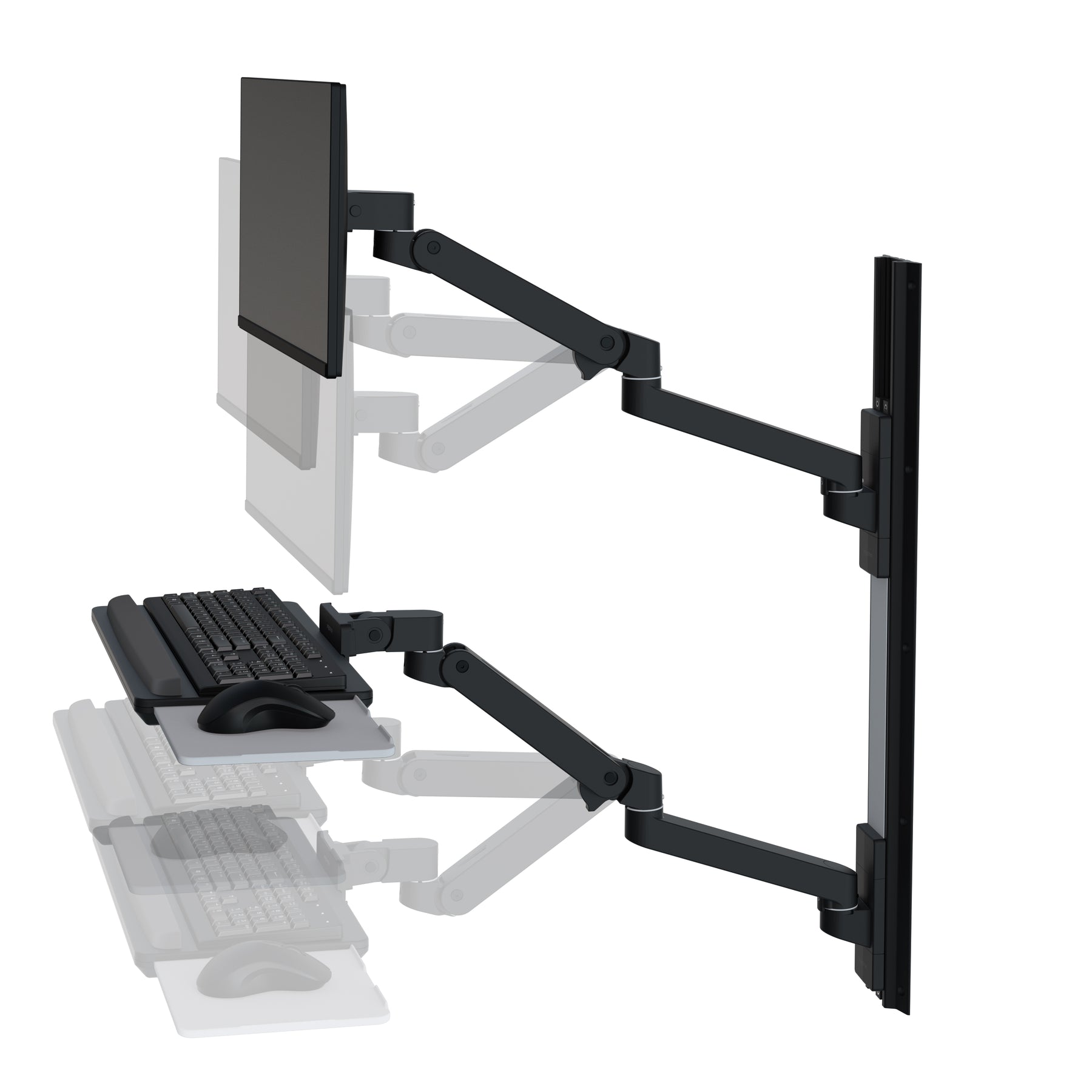

33 cm of Lift
The monitor rises and falls through 33 cm on a Constant Force™ arm. Shown in black.

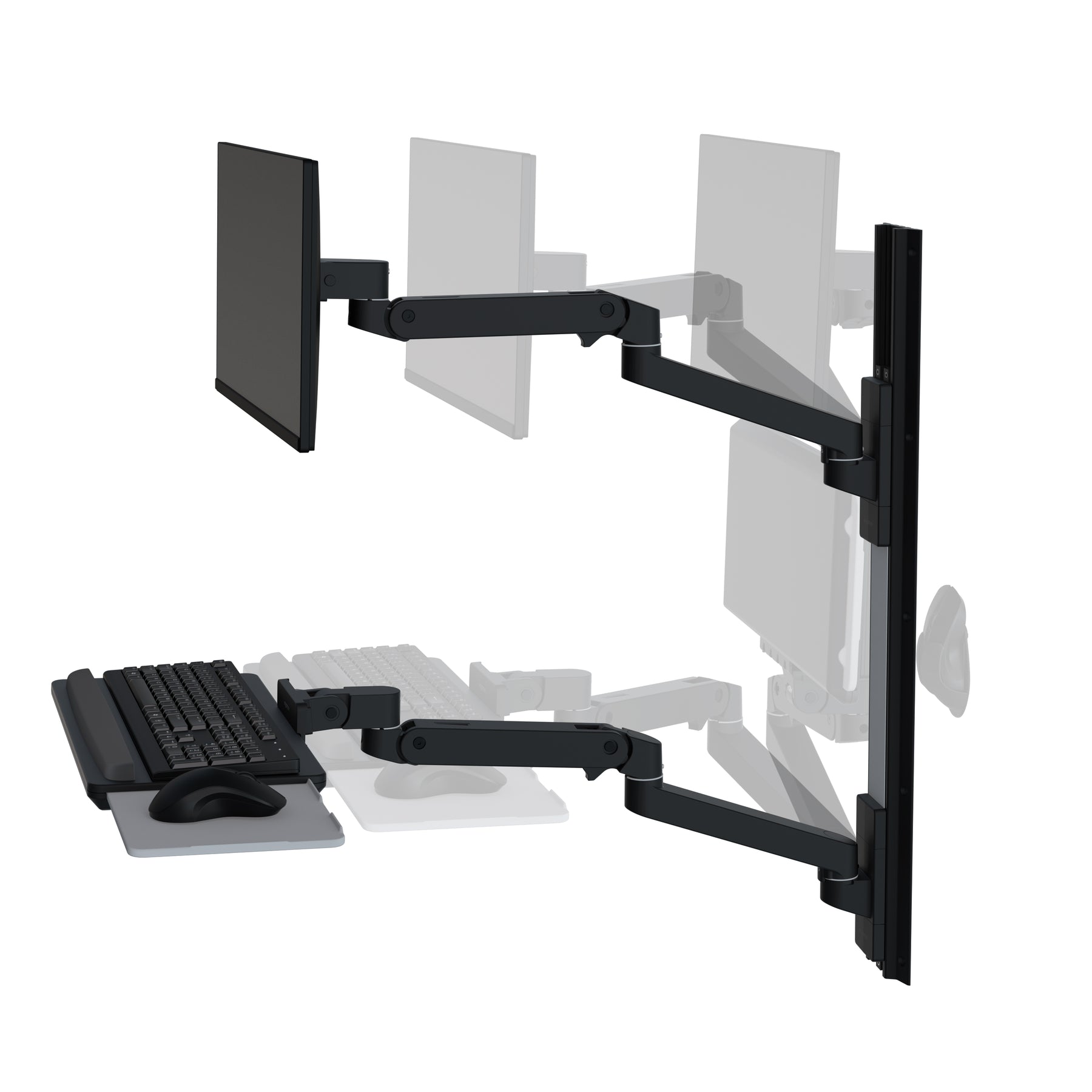

Reach to 89 cm
The keyboard arm extends up to 89 cm and the monitor arm up to 64 cm. Shown in black.
The Numbers
- Screen Weight
- 1.8–10 kg
- Screen Size
- Up to 34 in
- Keyboard Load
- Up to 2.2 kg
- Keyboard Tray
- 48 × 24 cm
- Wall Track
- 34 in
- Warranty
- 10 years
Figures are from Ergotron's LX Pro Wall Mount System specification sheet (2025) and Ergotron's product specification as published in Australia. A PC holder is an accessory sold separately.

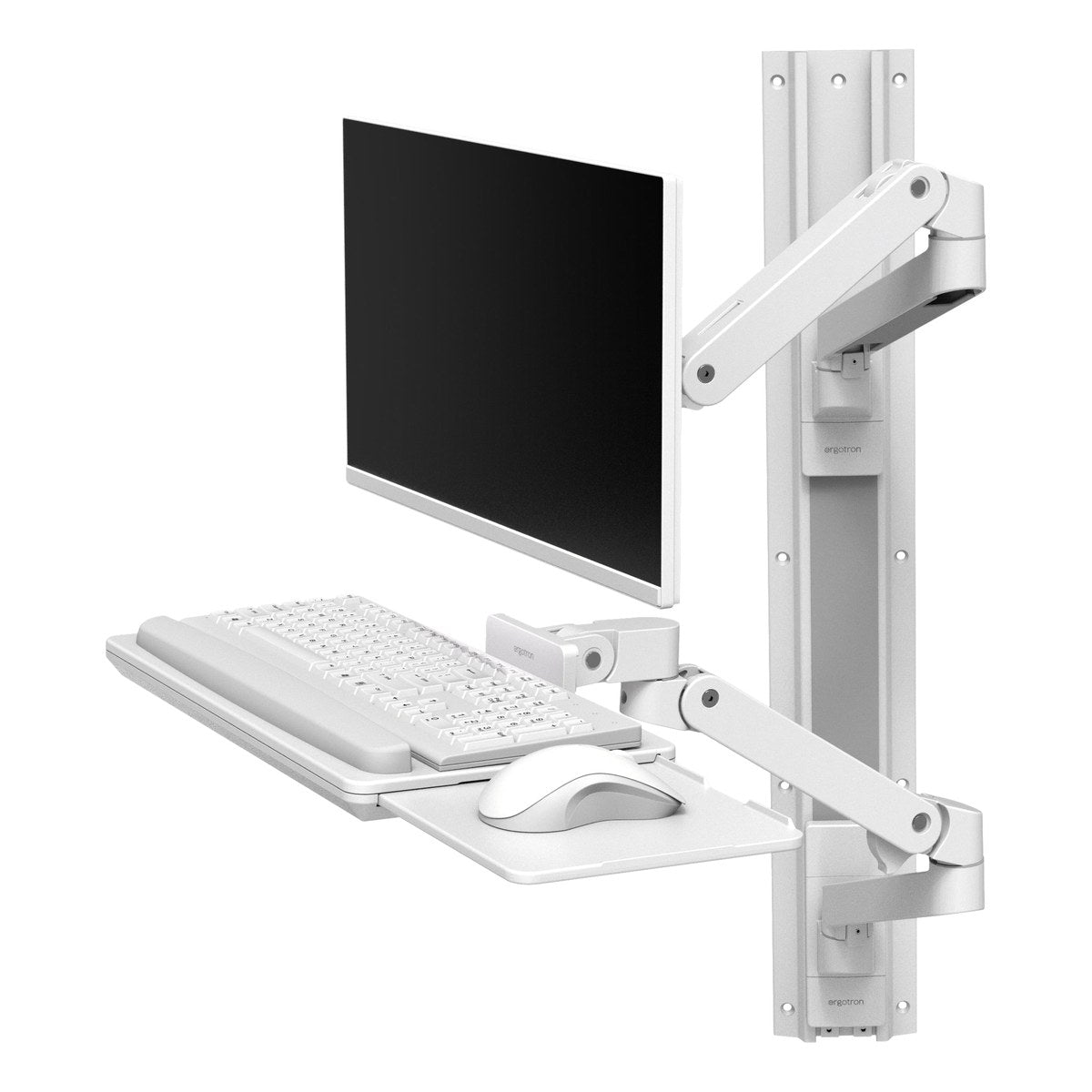

LX Pro Wall Mount System, White
This Model
This listing is the Ergotron LX Pro Wall Mount System, Keyboard and Monitor, in white (45-696-290). In the box: two arms, two extensions, monitor pivot, keyboard pivot, keyboard tray, mouse tray, mouse holder, two wall-mount bases, wall track, track brackets, two cable channels and fasteners.
A CPU holder and mini PC mount are optional; ask us. Screen only? See the LX Pro Wall Monitor Arm.
Why We Stock the LX Pro Wall Mount System
We stock it for places that need a computer but have no room for a desk: clinics, labs, workshops and warehouses. Screen, keyboard and mouse come off one wall track, and move on Ergotron's Constant Force™ lift.
Ergotron's specification sheet for this system states a 10-year warranty, and claims are handled by Chair Dinkum in Sydney on 02 9640 0642. Your rights under the Australian Consumer Law for faulty or damaged goods are separate and are not limited by it.
Features & Specifications
Key Features
-Wall workstation: monitor arm and keyboard arm on a 34-inch wall track
-Constant Force™ lift: Ergotron's spring mechanism keeps the effort small and even through the range of movement
-Monitor: 1.8–10 kg, screens up to 34 in, lift 33 cm, extension up to 64 cm
-Monitor tilt 70° up / 15° down; screen rotation 360°
-Keyboard: up to 2.2 kg; keyboard arm extension up to 89 cm
-Keyboard tray 48 × 24 cm; slide-out mouse tray and mouse holder
-VESA 75 × 75 and 100 × 100
-Includes two arms, two extensions, monitor pivot, keyboard pivot, keyboard tray, mouse tray, mouse holder, two wall-mount bases, wall track, track brackets, two cable channels and fasteners for wood-stud or concrete walls
-Optional CPU holder and mini PC mount (ask us)
-Product weight 11.5 kg; shipping weight 15.3 kg
-Finish: white 45-696-290
-Warranty: 10 years (Ergotron specification sheet)
Downloads
Chair Dinkum — warrantyLink →Dimensions
Screen Weight1.8–10 kg
Screen SizeUp to 34 in
Monitor Lift33 cm
Monitor ExtensionUp to 64 cm
Keyboard LoadUp to 2.2 kg
Keyboard ExtensionUp to 89 cm
Keyboard Tray48 × 24 cm
Wall Track34 in (86 cm)
VESA75 / 100 mm
Product / Shipping Weight11.5 kg / 15.3 kg
Part Number45-696-290
Warranty10 years
Figures are from Ergotron's LX Pro Wall Mount System specification sheet (2025) and Ergotron's product specification as published in Australia. Fix the system into studs or solid masonry. Warranty terms are on our warranty page.
Frequently Asked Questions
A computer workstation used standing, where there is no desk or the floor must stay clear: clinics, labs, warehouses, workshops, reception points and shared kiosks.
The monitor arm takes a screen of 1.8 to 10 kg and up to 34 inches on VESA 75 or 100. The keyboard tray, 48 by 24 cm, takes up to 2.2 kg.
Fasteners for wood-stud or concrete walls are included. Fix the track into studs or solid masonry, not plasterboard alone, and use a qualified installer if you are unsure. Call 02 9640 0642 if you want help planning it.
Ergotron sells CPU holders and a mini PC mount for the system as accessories. Tell us your computer and we will supply the right one.
10 years. Ergotron's warranty terms give a 10-year warranty on its LX products; the system's specification sheet states 10 years, and the product's specification sheet states 10 years. Claims are handled by Chair Dinkum in Sydney on 02 9640 0642; full terms are on our warranty page. Your rights under the Australian Consumer Law for faulty or damaged goods are separate and are not limited by it.
Call 02 9640 0642 to check which arms are on display at our Pyrmont showroom, 1/209 Harris Street, before you visit. For multi-site or clinic projects, call us for a quote.
