Ergotron's LX Pro: the aluminium successor to the LX, for one screen of 1.8 to 10 kg and up to 34 inches. Constant Force lift through 33 cm, 65.6 cm of reach, 85 degrees of tilt, a two-piece clamp for desks up to 60 mm, and Ergotron's 10-year warranty.
Ergotron LX Pro
The LX, Brought Up to Date
Ergotron calls its LX line a trusted choice for over 20 years, and the LX Pro the next generation of it: an aluminium arm with the same Constant Force™ lift, a smaller base, a cable cover, a tension indicator, a rotation stop and more tilt.
Ergotron rates it for one screen of 1.8 to 10 kg and up to 34 inches, with 33 cm of lift and 65.6 cm of reach.
Installation
Fewer Parts, Faster to Fit

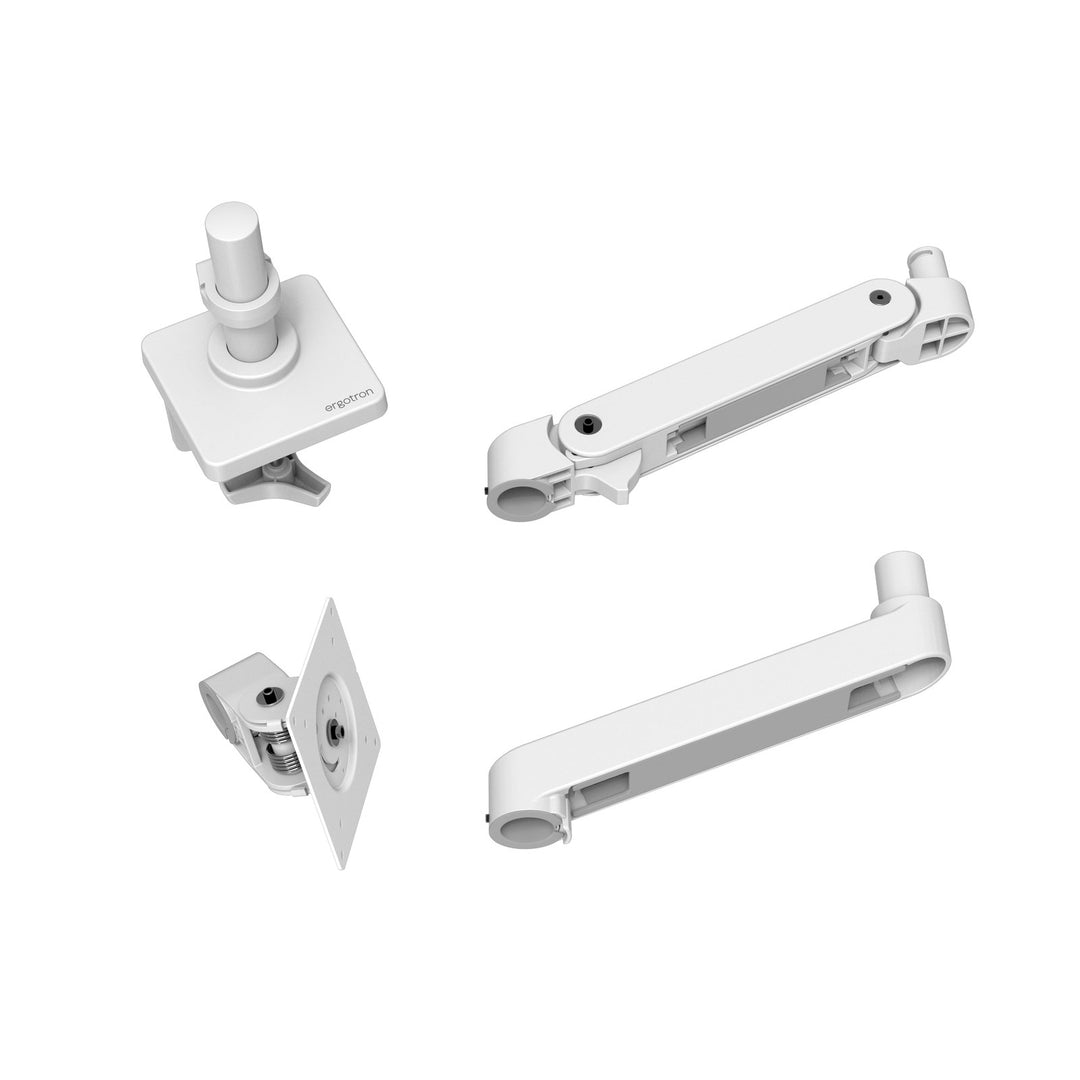

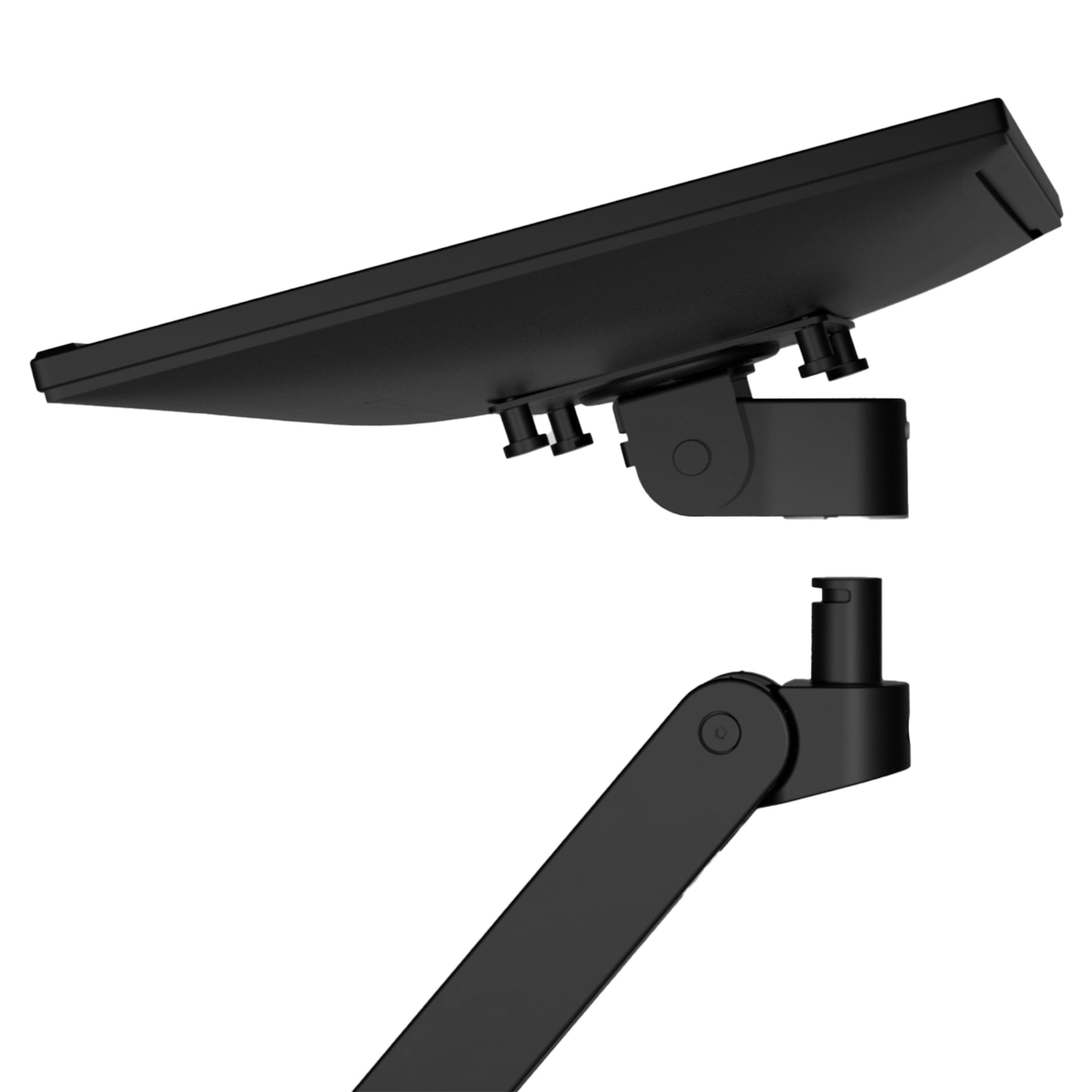

The LX Pro arrives as a base and pole, the arm, an extension and a detachable monitor pivot, so the head goes on the screen first and then clicks onto the arm. Ergotron's tension indicator lets you set the spring to the screen before it goes on, which speeds up a fit-out of many desks.
The two-piece clamp has three settings: up to 10 mm, 12 to 35 mm and 37 to 60 mm. A grommet-mount version exists as a separate part (45-708); ask us if you need it.
Ergotron LX Pro Desk Monitor Arm installation and adjustment
The Details
Five Things That Make It an LX Pro
The clamp, the tilt, the lift, the reach and the screen range.

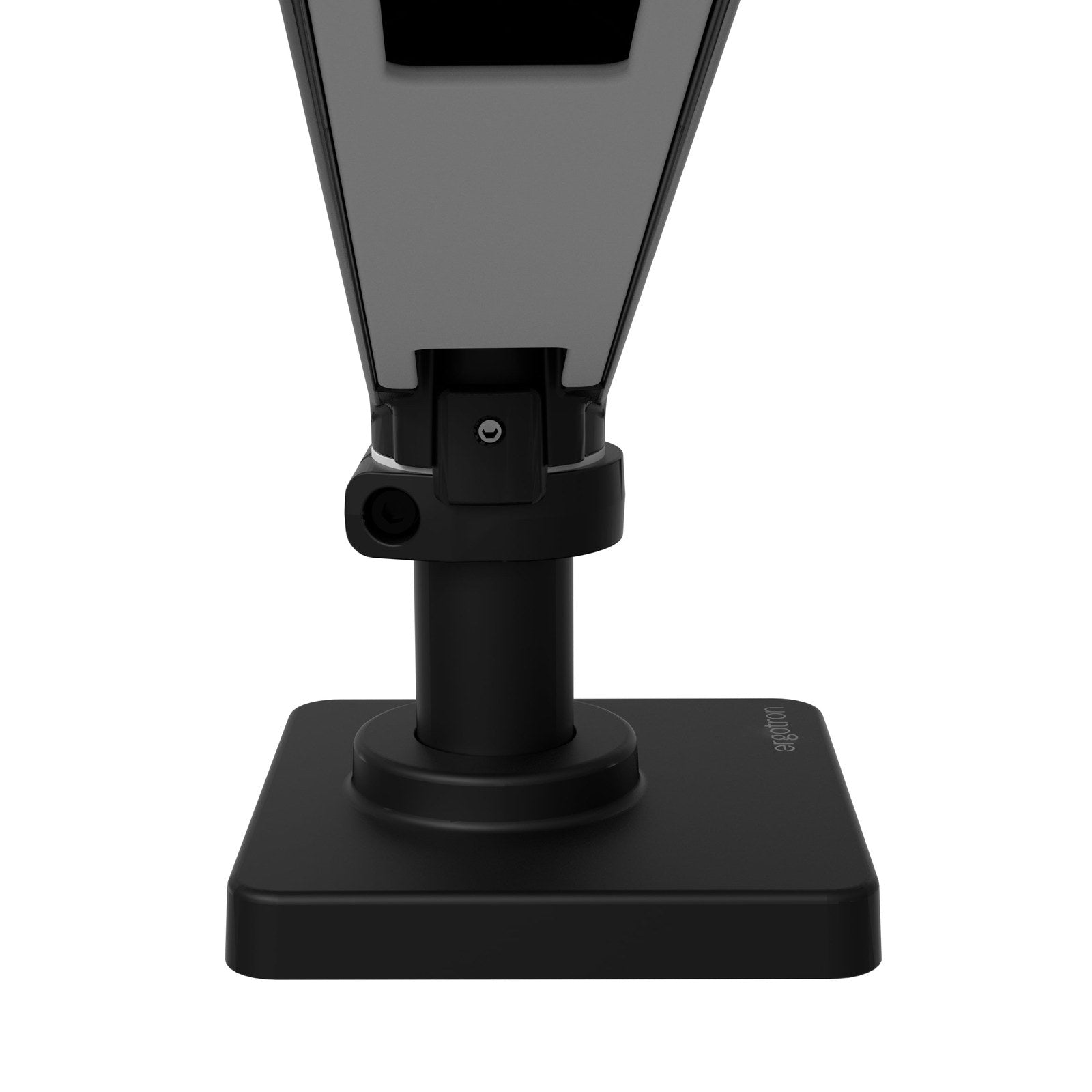

A Smaller Base
The two-piece clamp has three settings, covering desks up to 60 mm thick.

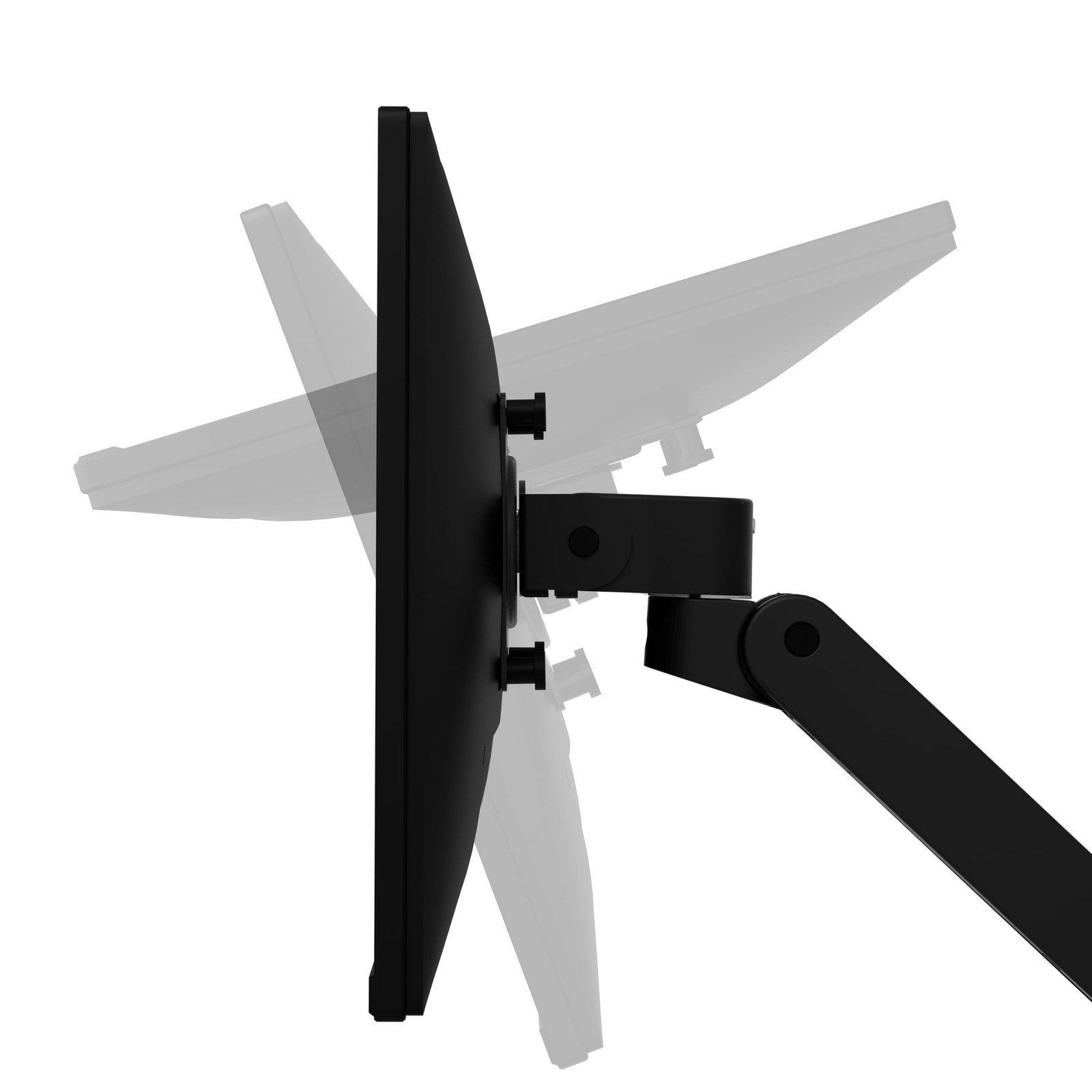

85 Degrees of Tilt
70° up and 15° down, more than the original LX.

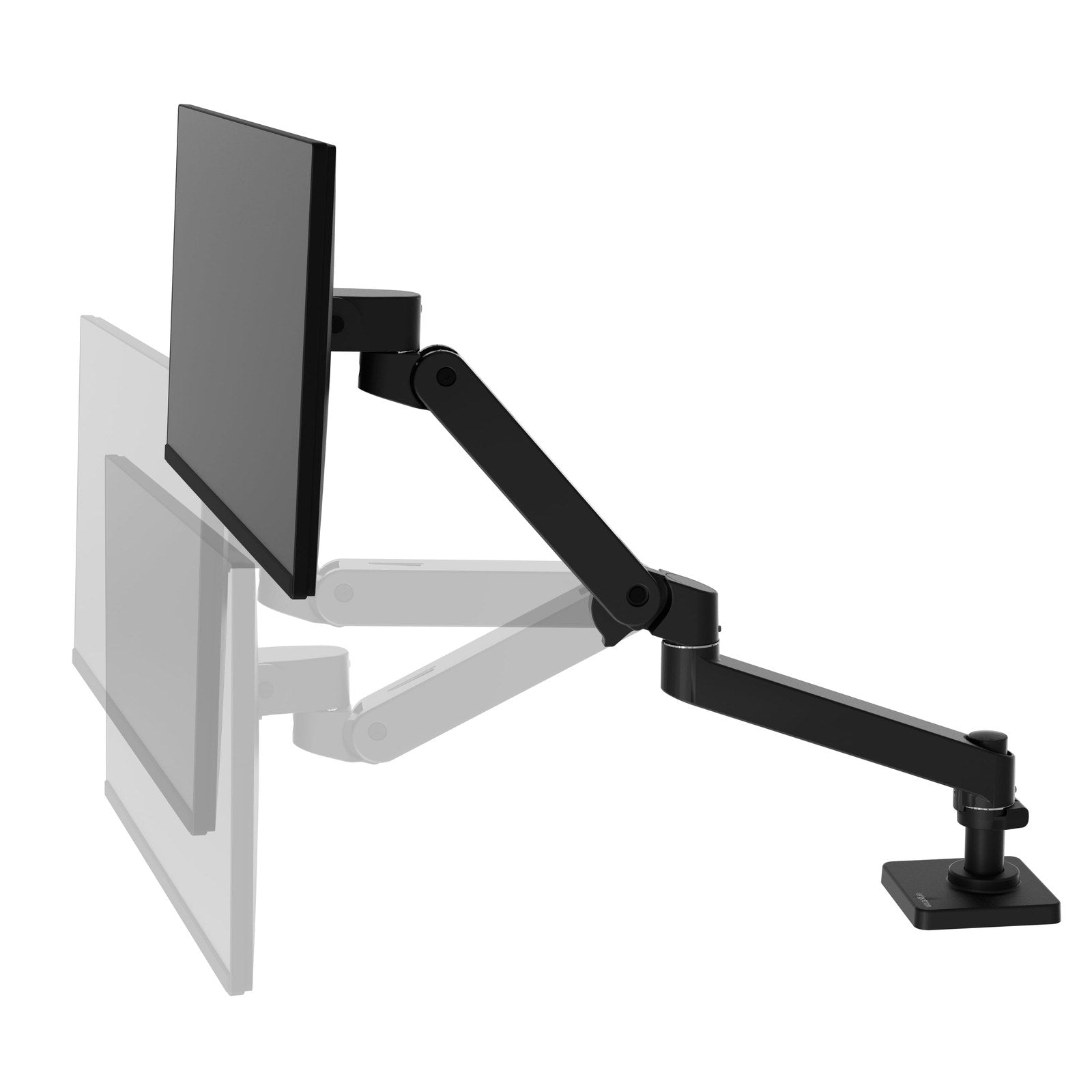

33 cm of Lift
Constant Force™ lift moves the screen with a light, even touch.
65.6 cm of Reach
Pull the screen in to read or push it back to the edge of the desk.
1.8 to 10 kg
Screens up to 34 inches, on VESA 75 or 100.
The Numbers
- Screen Weight
- 1.8–10 kg
- Screen Size
- Up to 34 in
- Lift
- 33 cm
- Reach
- 65.6 cm
- Desk Thickness
- Up to 60 mm
- Warranty
- 10 years
Figures are from Ergotron's LX Pro Desk Monitor Arm specification sheet (2026) and dimension drawing (rev. 10 Aug 2026). Ergotron's 2025 sheet gave 64 cm of extension. Weigh your screen without its stand.
What Is New
Tension Indicator, Rotation Stop, Cable Cover
Ergotron lists four additions over the original LX: a cable cover, a tension indicator, a rotation stop and a wider tilt range. The tension indicator shows the spring setting, so the arm can be set to a screen's weight before the screen goes on.
The base pans 360°, or 180° with the rotation stop engaged, which keeps the arm off a wall or partition behind the desk. Tilt runs 70° up and 15° down.

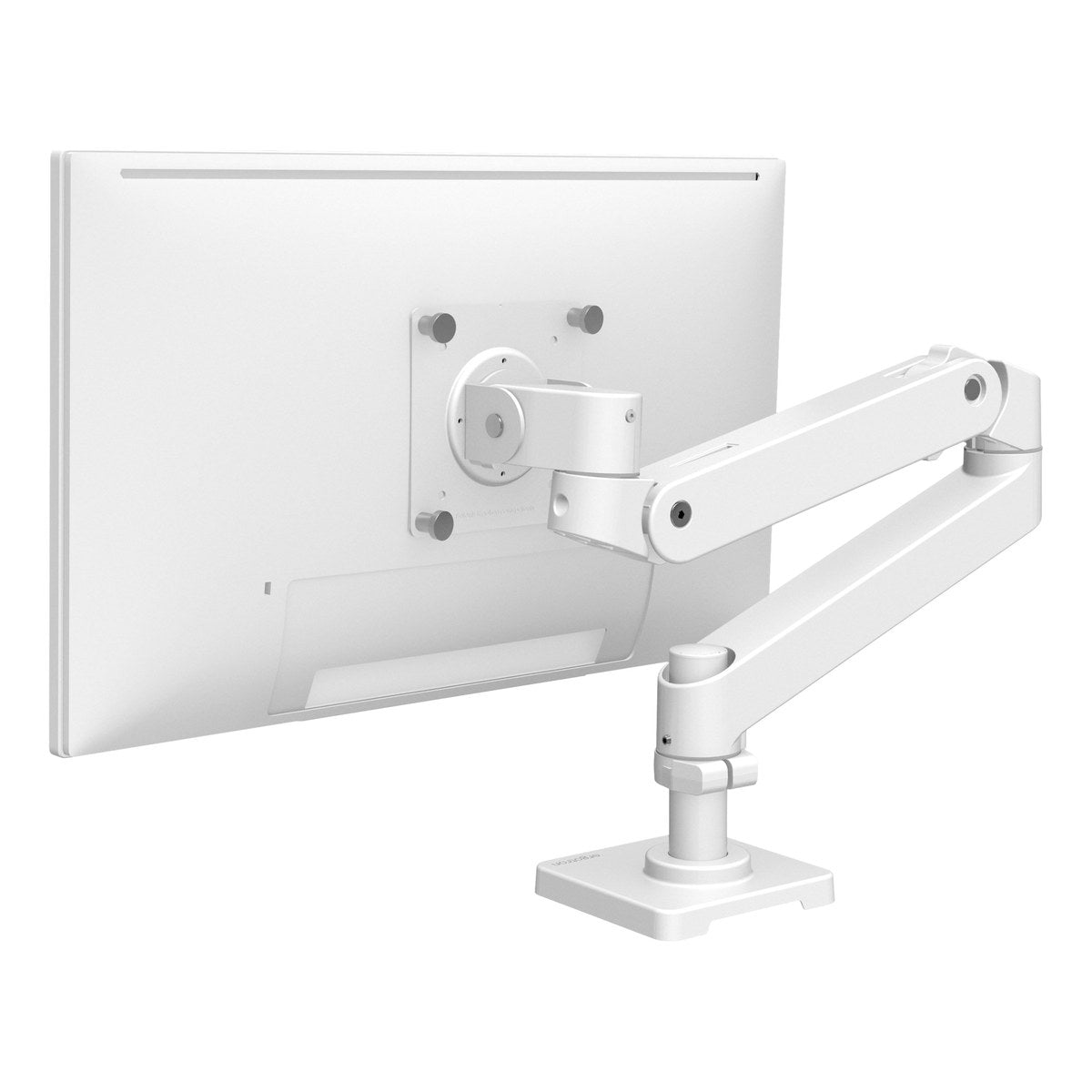

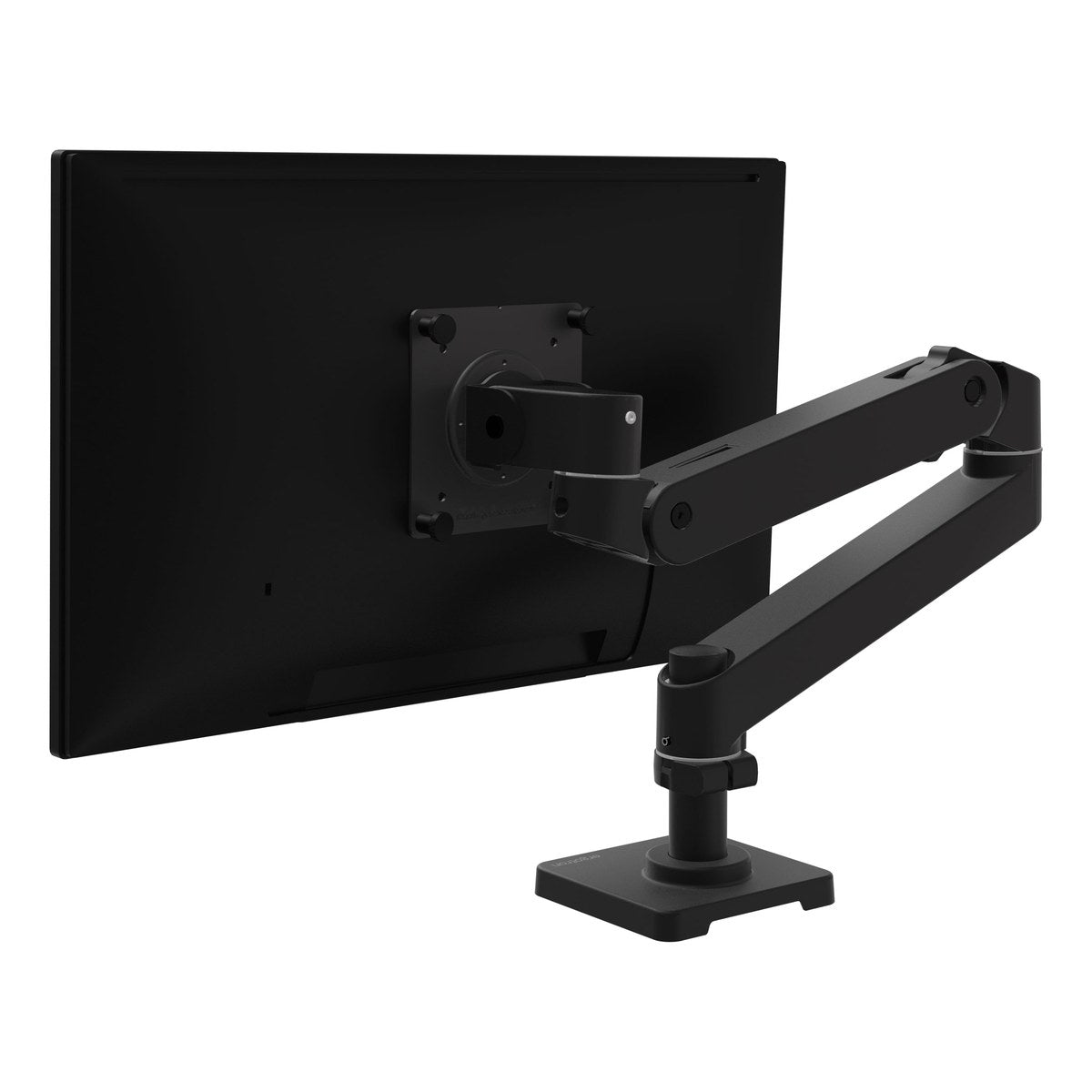

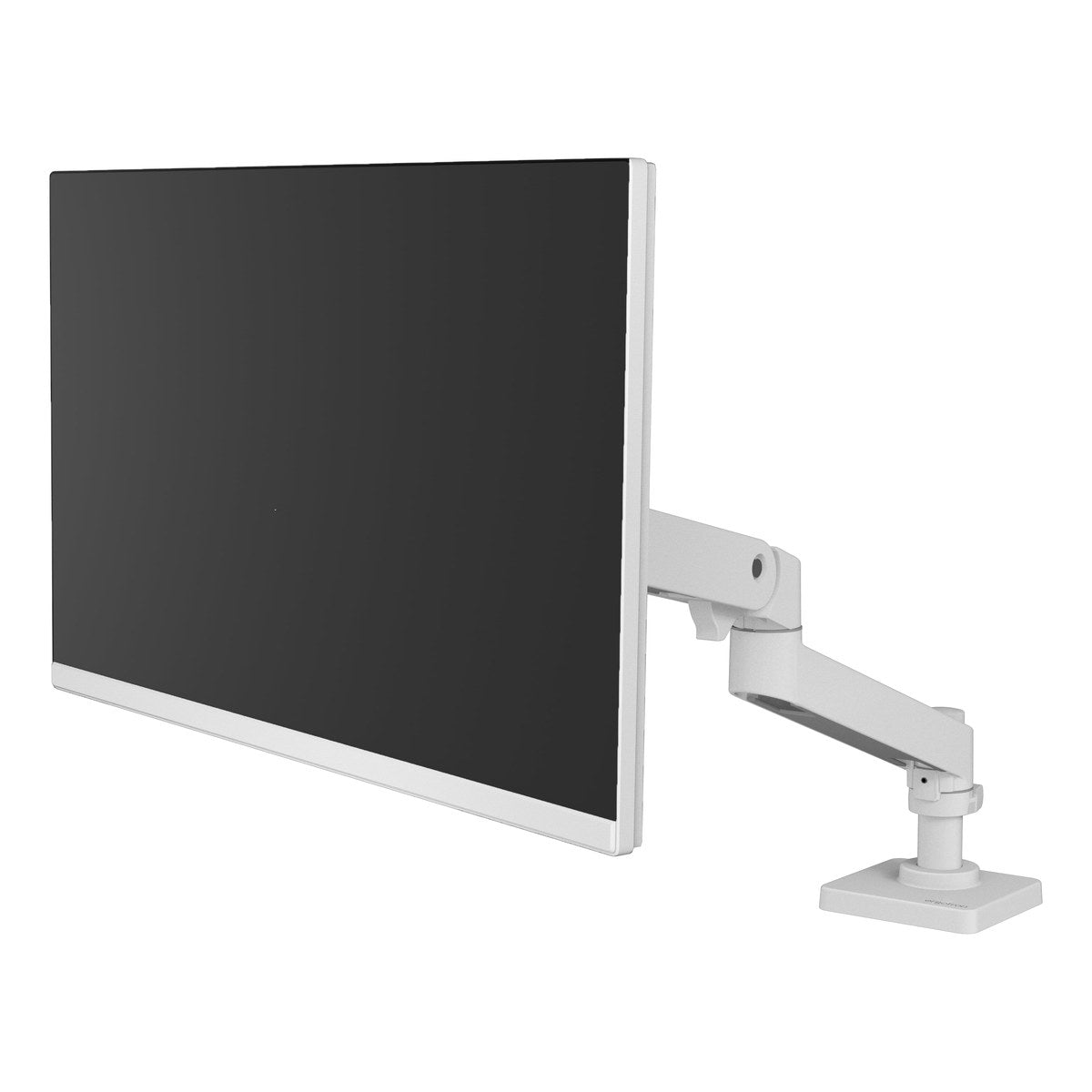

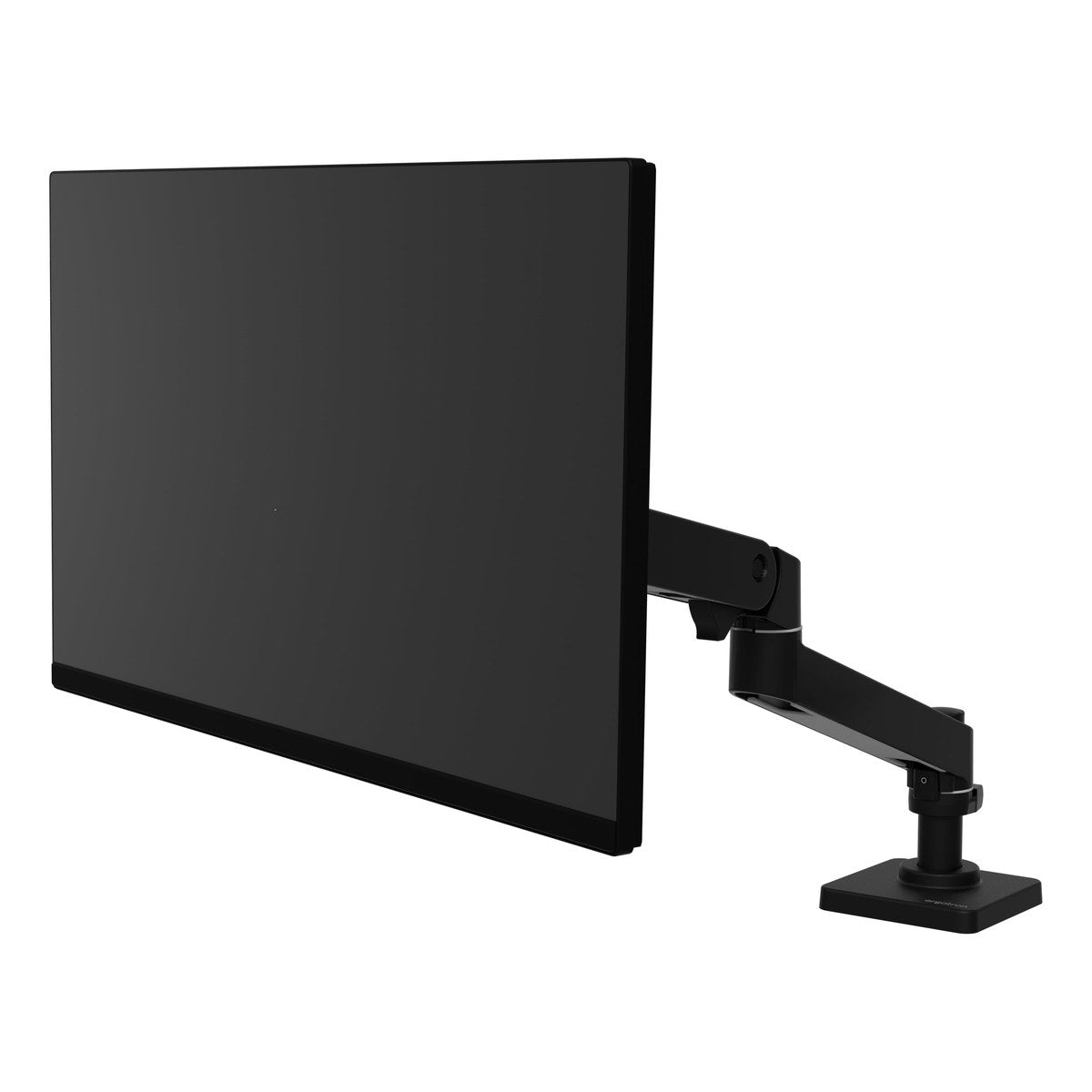

LX Pro Desk Arm, Black or White
This Model
This listing is the Ergotron LX Pro Desk Monitor Arm with the standard two-piece desk clamp, in matte black (45-682-292) or white (45-682-290). In the box: arm, extension, monitor pivot, two-piece desk clamp, 13.5 cm pole and attachment hardware.
Two screens? See the LX Pro Dual Side-by-Side or the LX Pro Dual Stacking Arm. A screen heavier than 10 kg needs the HX.
Why We Stock the Ergotron LX Pro
We stock the LX Pro because the LX is the arm many offices already know, and this is Ergotron's current version of it: the same Constant Force™ lift for screens of 1.8 to 10 kg, with a detachable monitor pivot, a tension indicator and a clamp that covers desks up to 60 mm. Ergotron tests it to 10,000 lift cycles.
Ergotron's warranty terms give 10 years on LX monitor arms, including the LX Pro, and claims are handled by Chair Dinkum in Sydney on 02 9640 0642. Your rights under the Australian Consumer Law for faulty or damaged goods are separate and are not limited by it.
Features & Specifications
Key Features
-Aluminium single monitor arm with Constant Force™ lift
-Screen weight 1.8–10 kg
-Screens up to 34 in
-Lift 33 cm
-Extension 65.6 cm (2026 drawing; 64 cm on the 2025 sheet)
-Tilt 85° (70° up / 15° down); monitor pan 180°; base pan 360° (180° with rotation stop engaged); screen rotation 360°
-VESA 75 × 75 and 100 × 100
-Two-piece desk clamp, three settings: up to 10 mm, 12–35 mm, 37–60 mm
-13.5 cm pole
-LX Pro additions per Ergotron: cable cover, tension indicator, rotation stop and increased tilt range
-Tested to 10,000 lift cycles (Ergotron)
-Grommet-mount version (45-708) and tall-pole version (45-695) are separate parts
-Finishes: matte black 45-682-292; white 45-682-290
-Warranty: 10 years (Ergotron)
Downloads
Chair Dinkum — warrantyLink →Dimensions
Screens1
Screen Weight1.8–10 kg
Screen SizeUp to 34 in
Lift33 cm
Extension65.6 cm
Tilt85° (70° up / 15° down)
Monitor Pan180°
Base Pan360° (180° with stop)
Screen Rotation360°
Pole13.5 cm
Desk ThicknessUp to 60 mm (three clamp settings)
VESA75 / 100 mm
Part Numbers45-682-292 black; 45-682-290 white
Warranty10 years
Figures are from Ergotron's LX Pro Desk Monitor Arm specification sheet (2026) and dimension drawing (rev. 10 Aug 2026); the 2025 sheet gave 64 cm of extension. Ergotron does not publish the arm's own weight. Weigh your screen without its stand. Warranty terms are on our warranty page.
Frequently Asked Questions
If the screen weighs 1.8 to 10 kg without its stand, is 34 inches or smaller and has 75 or 100 mm VESA holes, it is within Ergotron's rating. Check the weight on the screen maker's specification sheet.
The two-piece clamp has three settings covering desks up to 10 mm, 12 to 35 mm and 37 to 60 mm thick, and needs a clear back edge. For a grommet hole, Ergotron's grommet version (45-708) is a separate part; call 02 9640 0642 and we will order it.
Ergotron describes the LX Pro as the next generation of the LX: the same Constant Force™ lift, plus a cable cover, tension indicator, rotation stop, more tilt and a smaller base.
Ergotron sells an add-an-arm kit that converts the LX Pro from single to dual, and a notebook tray. Ask us and we will supply the right part for your arm.
10 years. Ergotron's warranty terms give a 10-year warranty on LX monitor arms, and the product's specification sheet states 10 years. Claims are handled by Chair Dinkum in Sydney on 02 9640 0642; full terms are on our warranty page. Your rights under the Australian Consumer Law for faulty or damaged goods are separate and are not limited by it.
Call 02 9640 0642 to check which arms are on display at our Pyrmont showroom, 1/209 Harris Street, before you visit. We can also check your screen and desk over the phone before you order.
