Two Ergotron LX Pro arms on one pole, each for a screen of 1.8 to 9 kg and up to 27 inches (18.1 kg in total). Constant Force lift through 33 cm per screen, 85 degrees of tilt, a two-piece clamp for desks 10 to 60 mm, and Ergotron's 10-year warranty.
Ergotron LX Pro Dual Side-by-Side
Two Arms, Each Doing Its Own Job
The LX Pro Dual Side-by-Side puts two full LX Pro arms on one pole, joined by a T-bracket. Each carries a screen of 1.8 to 9 kg and up to 27 inches, with 33 cm of lift and its own extension, so the screens can sit edge to edge or at different heights and depths.
Ergotron rates the pair at 18.1 kg in total.
Movement
Light to Move, Stays Put
Ergotron's Constant Force™ lift balances each screen on a spring, so moving it takes the same small effort through the whole range. Each screen tilts 85° (70° up, 15° down), pans 180° and rotates 360° for portrait work.
The base pans 360°, or 180° with the rotation stop engaged, which keeps the arms off a wall or partition.
Ergotron LX Pro Dual Side-by-Side Arm installation and adjustment
The Details
Five Things That Make It an LX Pro Dual

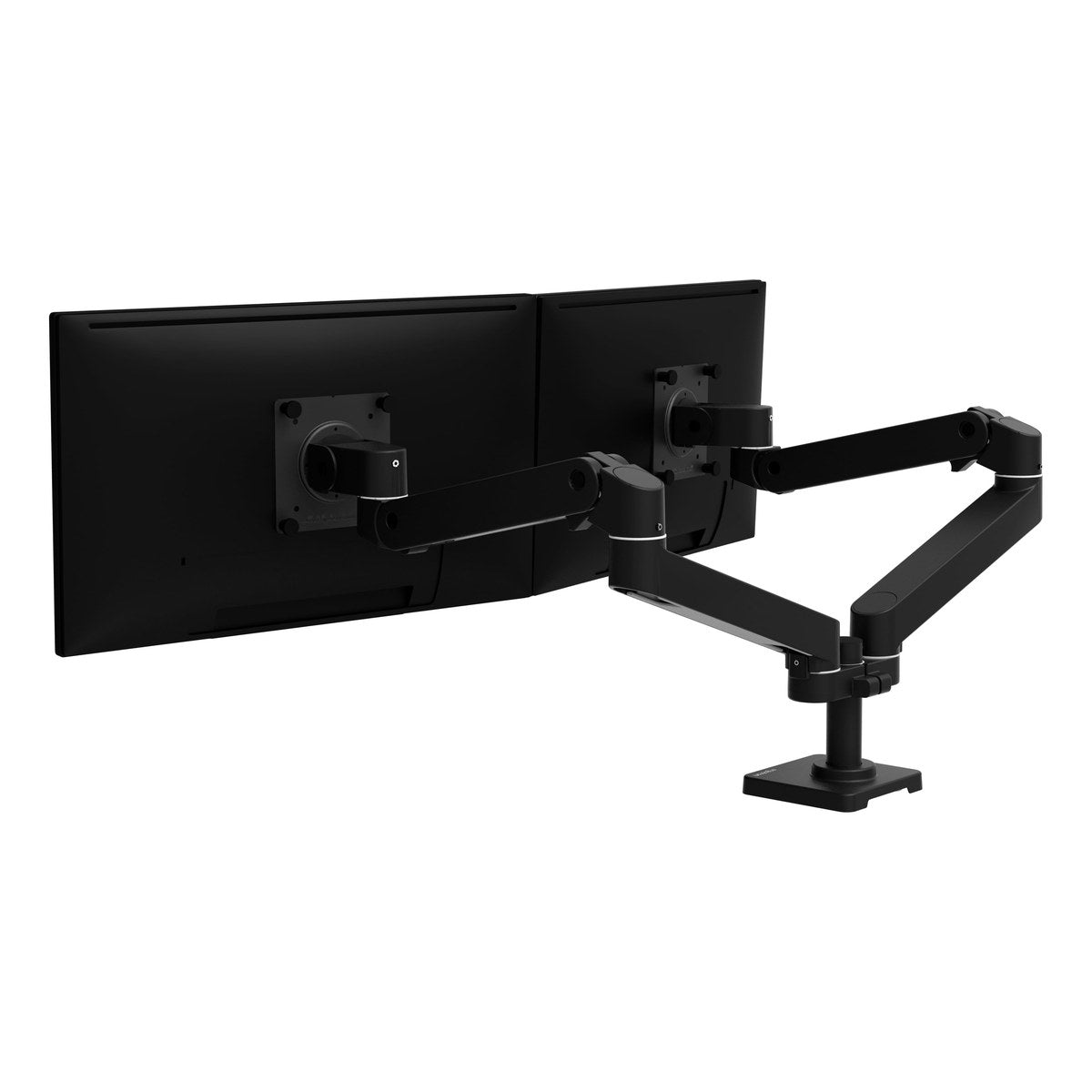

The parts, the lift, the rear view, the cable route and the finishes.

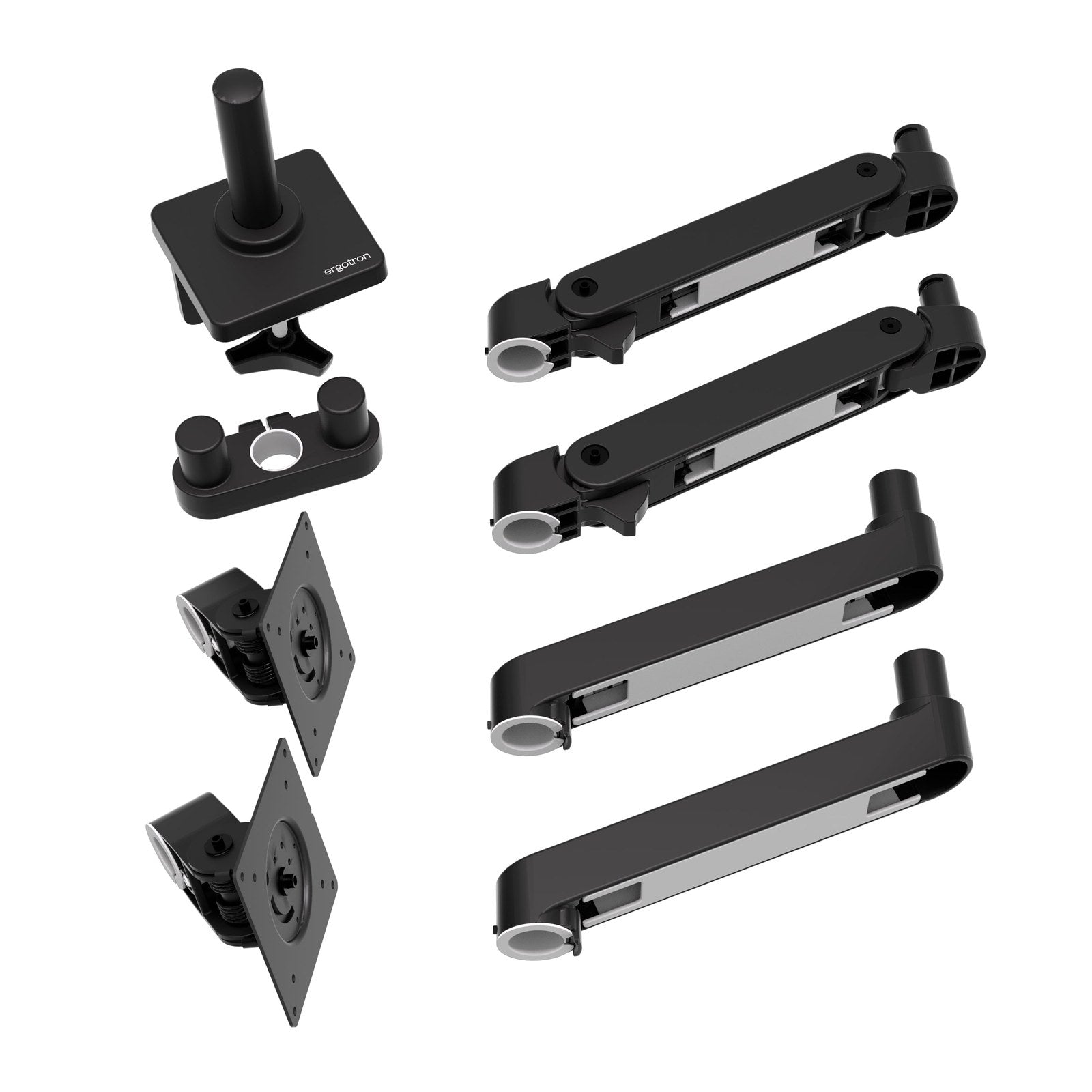

Two Complete Arms
Two arms, two extensions and two pivots on one pole and clamp.

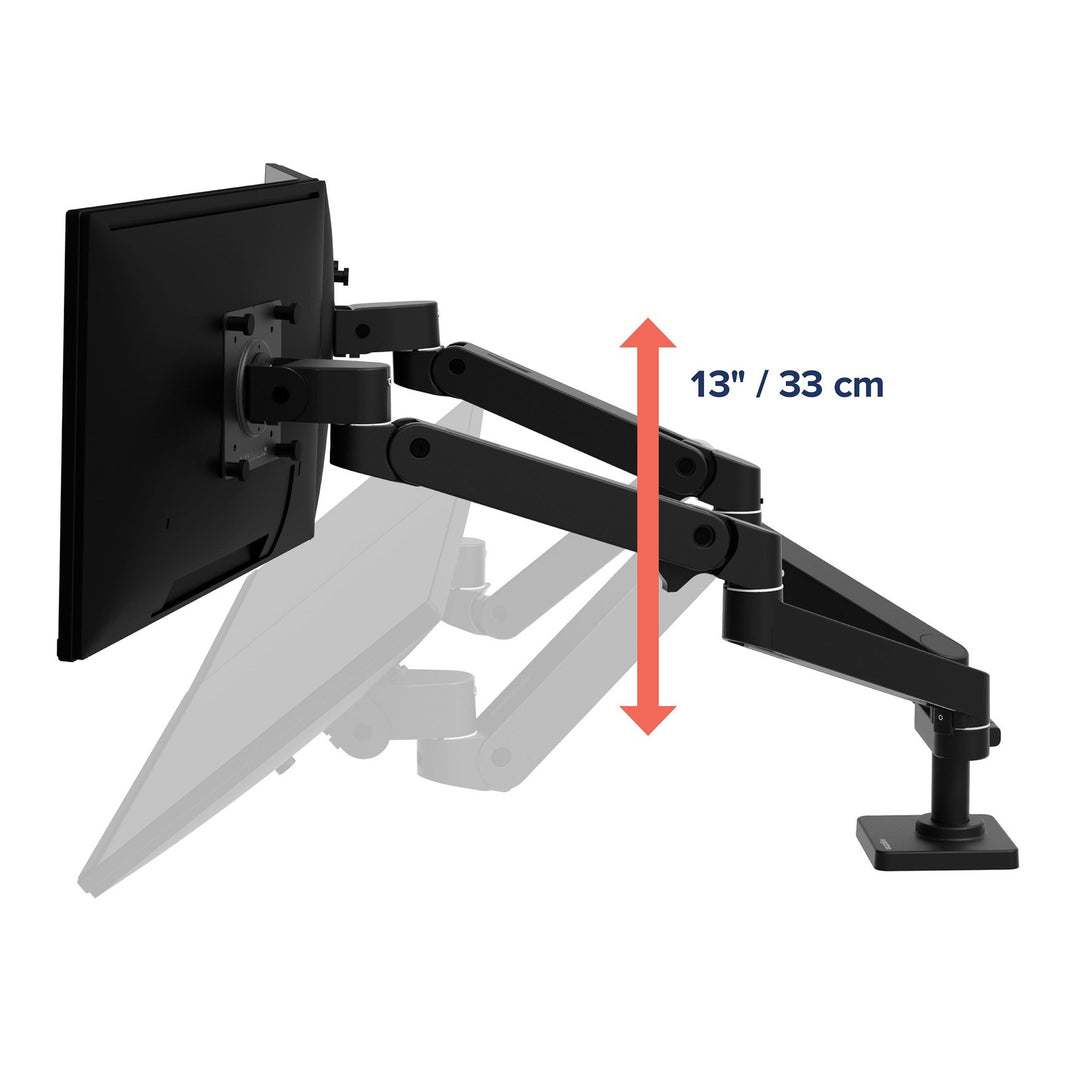

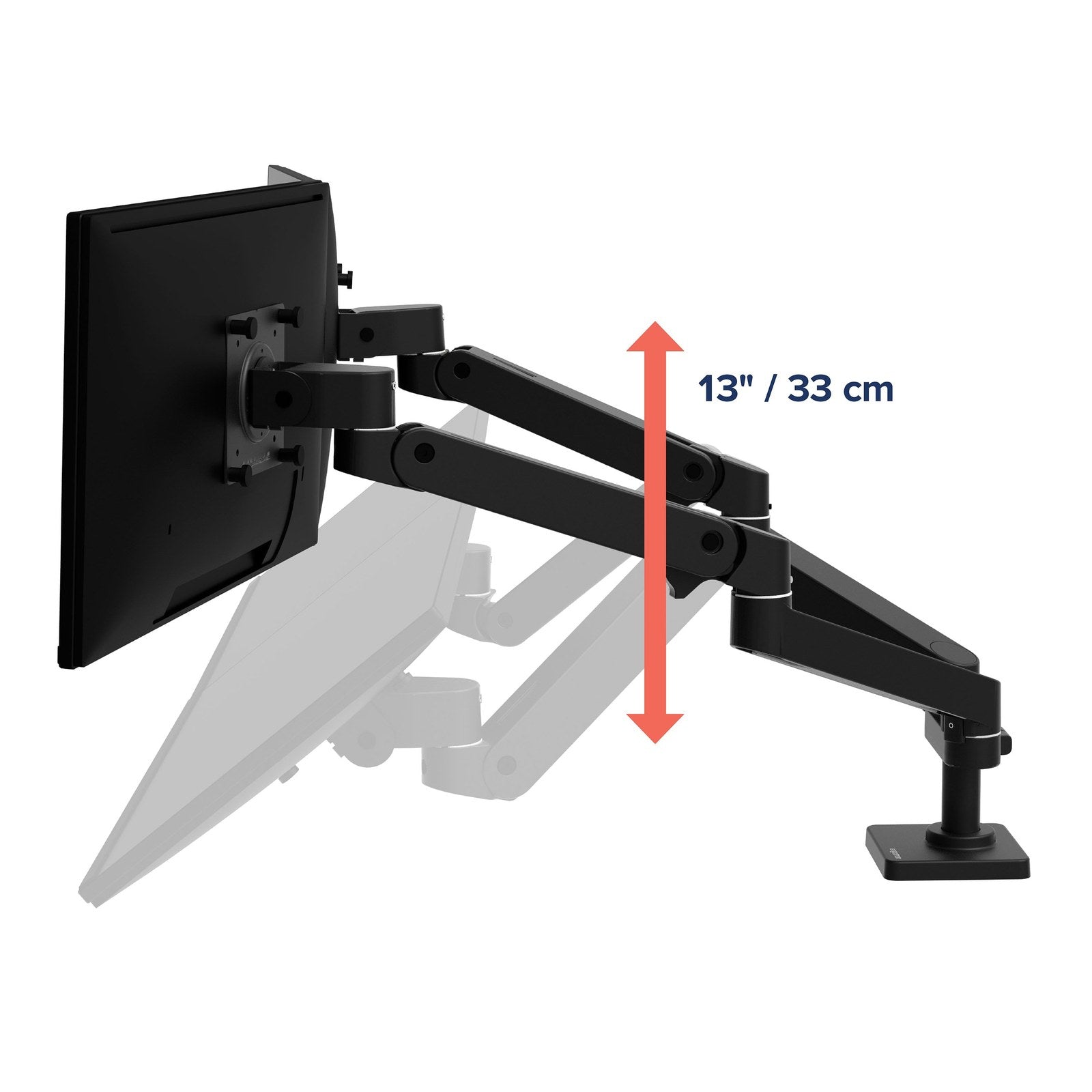

33 cm of Lift Each
Each screen moves on its own Constant Force™ spring.
Edge to Edge
Line two screens up side by side, or set them at different heights.

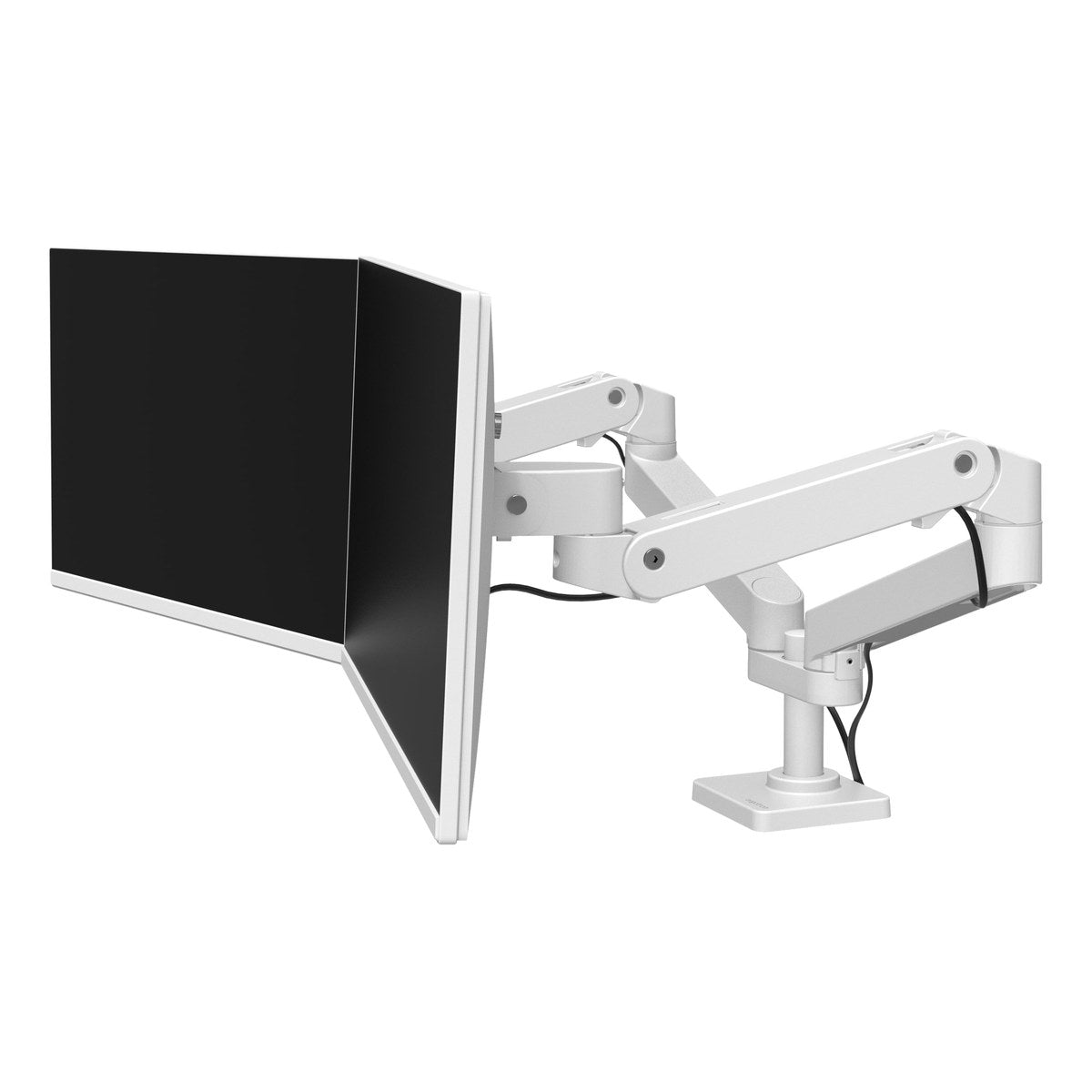

Cable Management
Cables run along the arms and down the pole.
Black or White
Matte black 45-686-292 or white 45-686-290.
The Numbers
- Screen Weight
- 1.8–9 kg each
- Total Weight
- 18.1 kg
- Screen Size
- Up to 27 in
- Lift
- 33 cm
- Extension
- Up to 64 cm
- Warranty
- 10 years
Figures are from Ergotron's LX Pro specification sheets and dimension drawings (2025–2026). Where Ergotron's sheets differ between editions, the lower figure is shown. Weigh your screen without its stand. Ergotron's February 2026 dual sheet gives 65.6 cm of extension against 64 cm on the 2025 sheet.
Who It Suits
Two Screens, Each Set on Its Own
Because each screen has a full arm and extension, one can sit closer for reading while the other stays back, or one can turn to portrait for documents and code. It suits two monitors of up to 27 inches each, 18.1 kg between them.

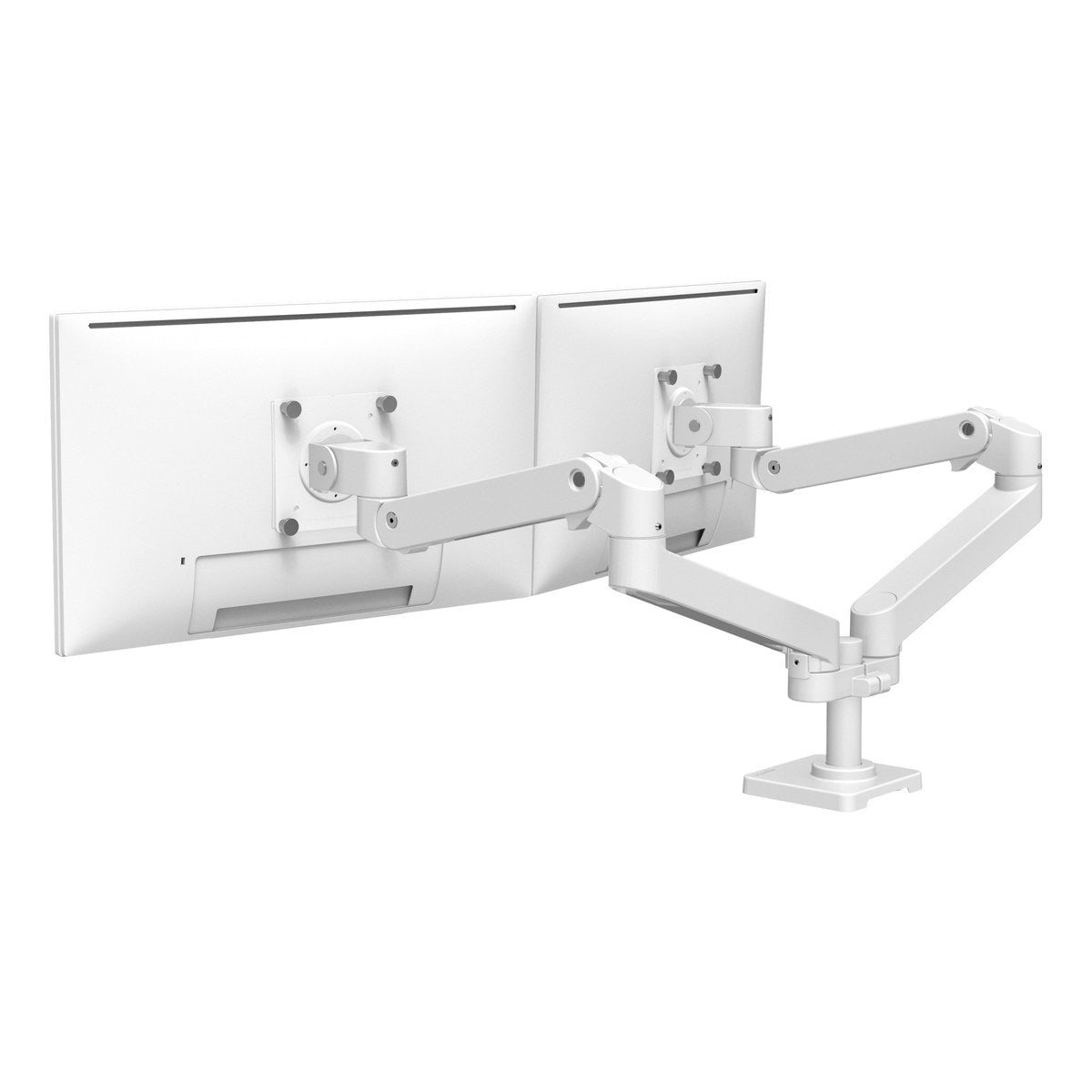

Send us both screen models on 02 9640 0642 and we will check the weights and your desk before you order. The photo shows the white finish.

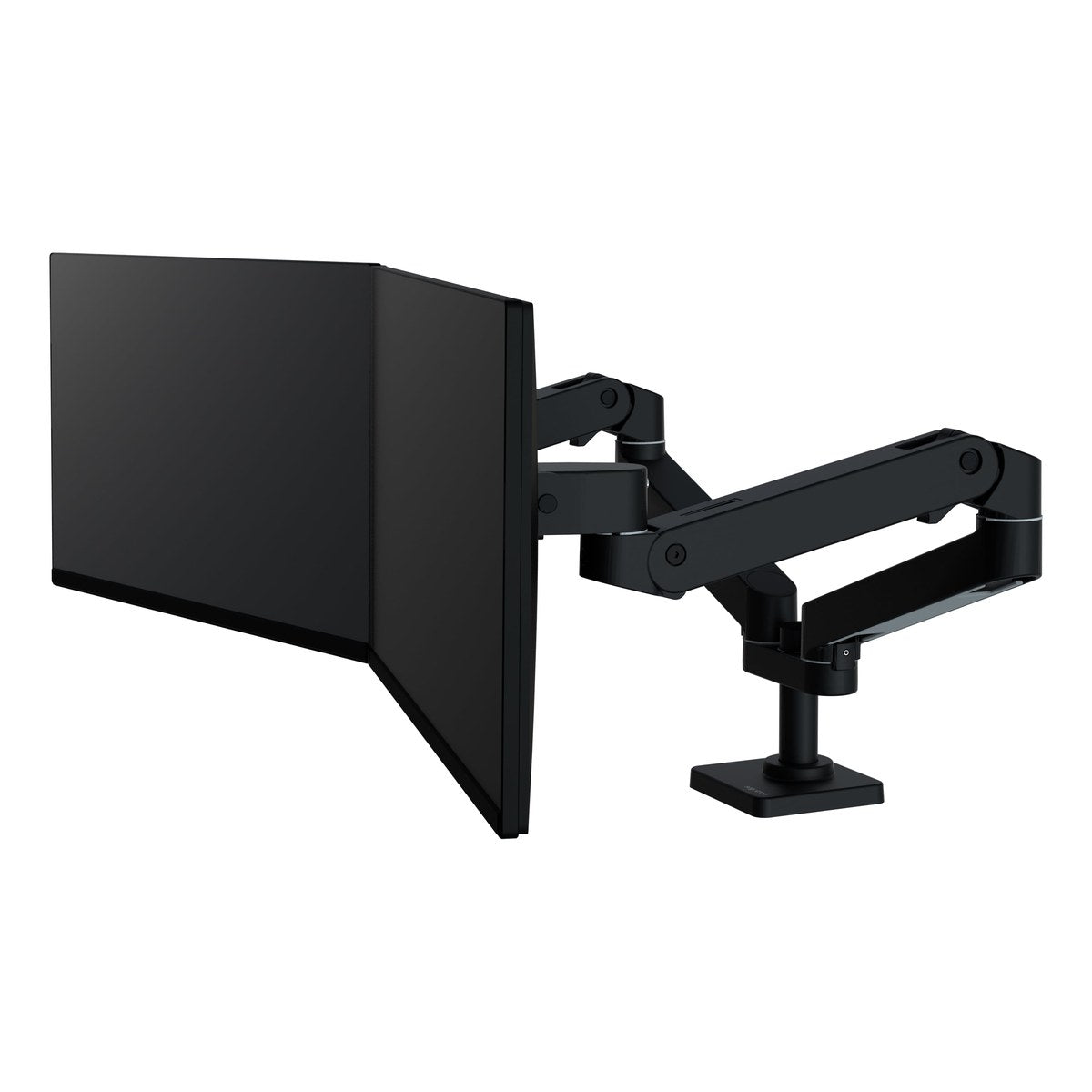

LX Pro Dual, Black or White
This Model
This listing is the Ergotron LX Pro Dual Side-by-Side Arm in matte black (45-686-292) or white (45-686-290). In the box: two arms, two extensions, two monitor pivots, a two-piece desk clamp, standard base, 13.5 cm pole, side-by-side T-bracket and attachment hardware. The grommet mount (98-728) is sold separately.
Prefer the screens stacked? See the LX Pro Dual Stacking Arm.
Why We Stock the Ergotron LX Pro Dual

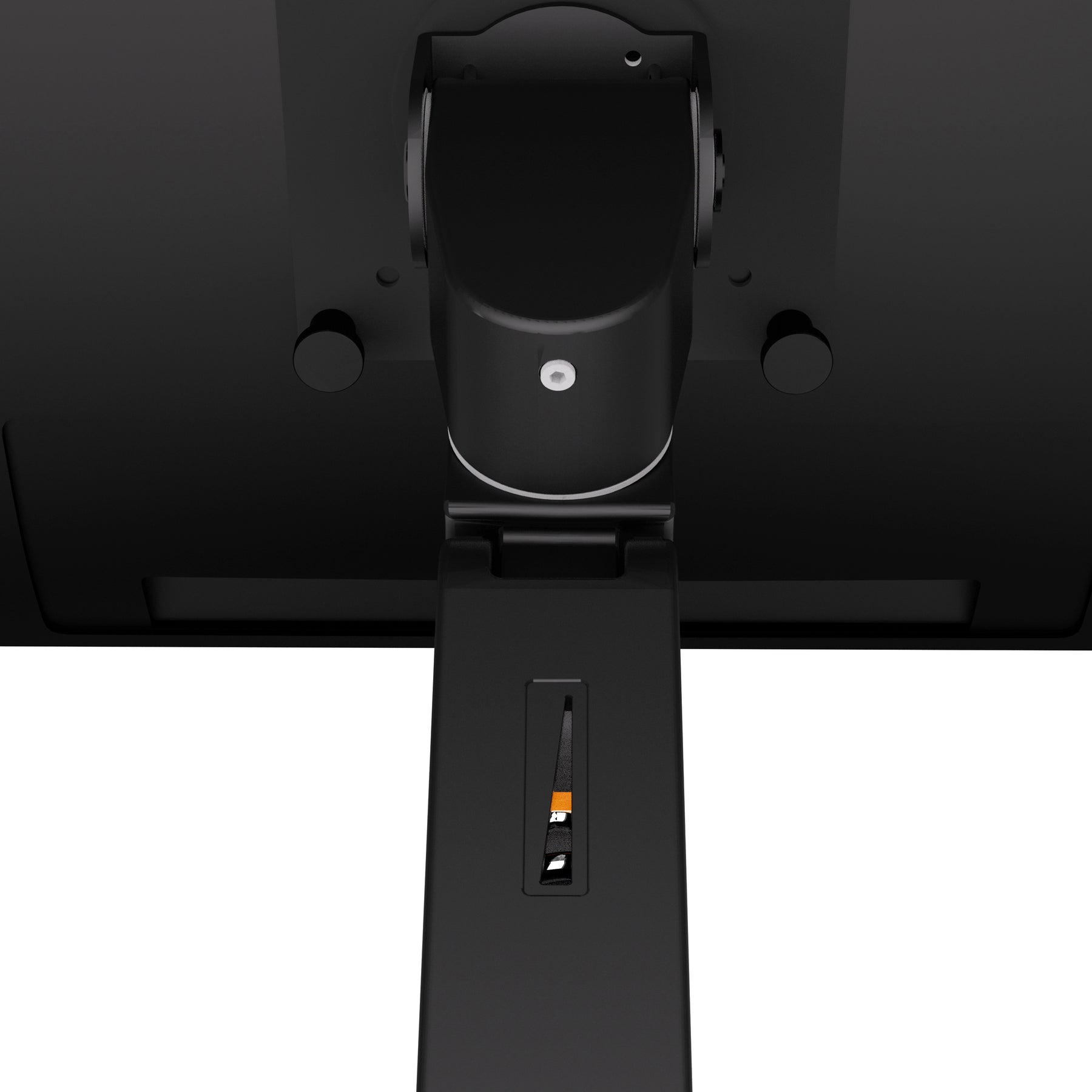

We stock the LX Pro Dual because it gives two screens the full LX Pro movement from one pole and one clamp: Constant Force™ lift, 85° of tilt, a tension indicator on each arm to set the spring before a screen goes on, and a rotation stop at the base.
Ergotron's warranty terms give 10 years on LX monitor arms, including the LX Pro, and claims are handled by Chair Dinkum in Sydney on 02 9640 0642. Your rights under the Australian Consumer Law for faulty or damaged goods are separate and are not limited by it.
Features & Specifications
Key Features
-Two LX Pro arms on one pole with a side-by-side T-bracket
-Screen weight 1.8–9 kg per screen; 18.1 kg total
-Screens up to 27 in each
-Constant Force™ lift: Ergotron's spring mechanism keeps the effort small and even through the range of movement
-Lift 33 cm per screen
-Tilt 85° (70° up / 15° down); monitor pan 180°; base pan 360° (180° with rotation stop engaged); screen rotation 360°
-Extension up to 64 cm (65.6 cm on Ergotron's Feb 2026 sheet)
-VESA 75 × 75 and 100 × 100
-Two-piece desk clamp for desks 10–60 mm thick; grommet mount 98-728 sold separately
-13.5 cm pole
-Product weight 6.3 kg; shipping weight 8.9 kg
-Finishes: matte black 45-686-292; white 45-686-290
-Warranty: 10 years (Ergotron)
Downloads
Chair Dinkum — warrantyLink →Dimensions
Screens2, side by side
Screen Weight1.8–9 kg each
Total Capacity18.1 kg
Screen SizeUp to 27 in each
Lift33 cm
ExtensionUp to 64 cm
Tilt85° (70° up / 15° down)
Screen Rotation360°
Pole13.5 cm
Desk Thickness10–60 mm (clamp)
VESA75 / 100 mm
Product / Shipping Weight6.3 kg / 8.9 kg
Part Numbers45-686-292 black; 45-686-290 white
Warranty10 years
Figures are from Ergotron's LX Pro specification sheets and dimension drawings (2025–2026). Where Ergotron's sheets differ between editions, the lower figure is shown. Weigh your screen without its stand. Warranty terms are on our warranty page.
Frequently Asked Questions
If each screen weighs 1.8 to 9 kg without its stand, is 27 inches or smaller and has 75 or 100 mm VESA holes, it is within Ergotron's rating. Check the weights on the screen maker's specification sheet.
The two-piece clamp takes desks 10 to 60 mm thick and needs a clear back edge. For a grommet hole, Ergotron's grommet mount (98-728) is sold separately; call 02 9640 0642 and we will add it.
Side-by-side puts the screens next to each other, the usual set-up for two 24 to 27-inch screens. The LX Pro Dual Stacking Arm has a taller 30.4 cm pole to put one screen above the other, which saves desk width.
The LX Pro Dual gives each screen its own arm, up to 27 inches and 9 kg each. The HX Dual puts both screens on one heavy-duty arm with a hinged bow and handle and takes 32-inch screens, at a higher price.
10 years. Ergotron's warranty terms give a 10-year warranty on LX monitor arms, and the product's specification sheet states 10 years. Claims are handled by Chair Dinkum in Sydney on 02 9640 0642; full terms are on our warranty page. Your rights under the Australian Consumer Law for faulty or damaged goods are separate and are not limited by it.
Call 02 9640 0642 to check which arms are on display at our Pyrmont showroom, 1/209 Harris Street, before you visit. We can also check your screens and desk over the phone before you order.
