Zgonic ZGX-DS Dual Monitor Arm
Two Screens That Move As One

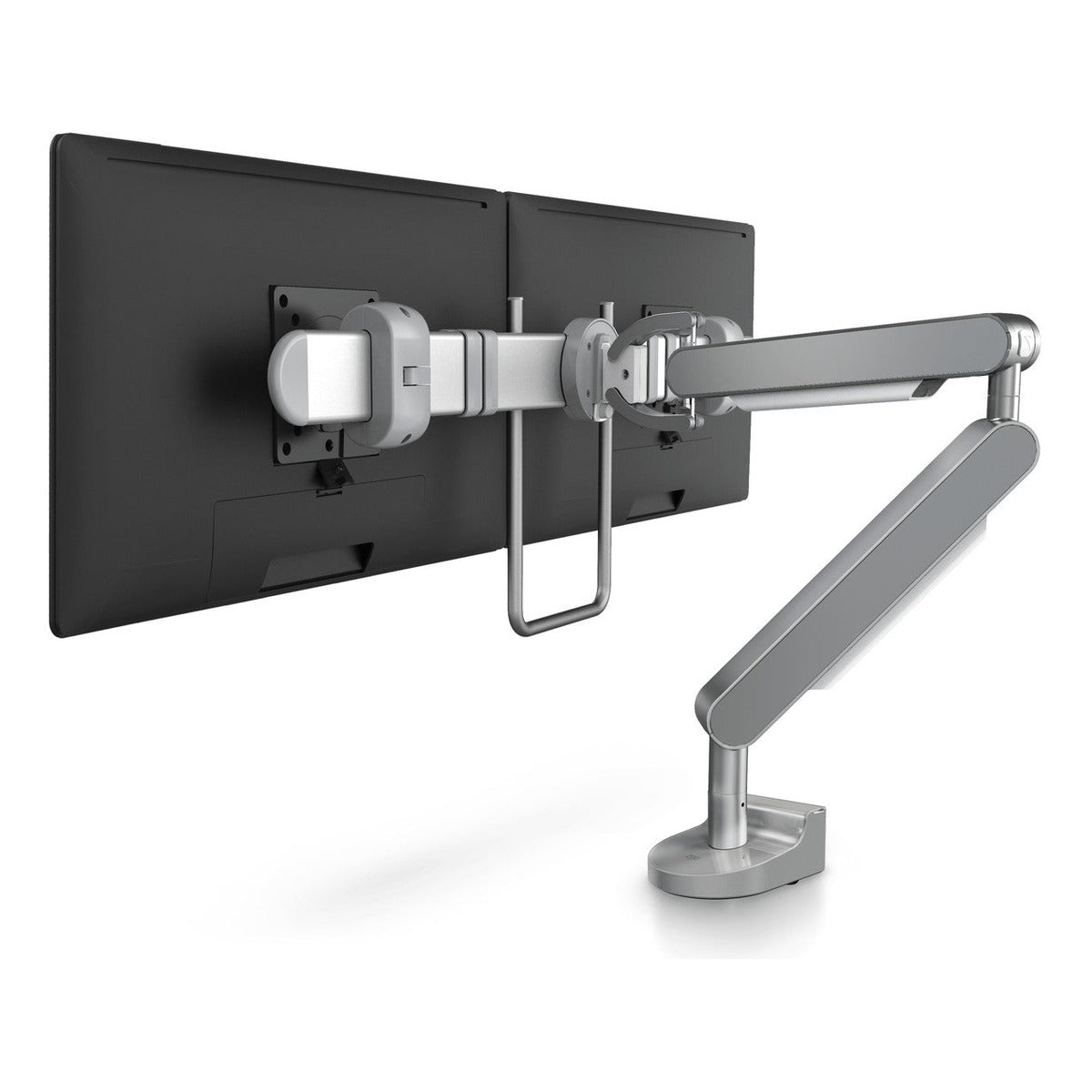

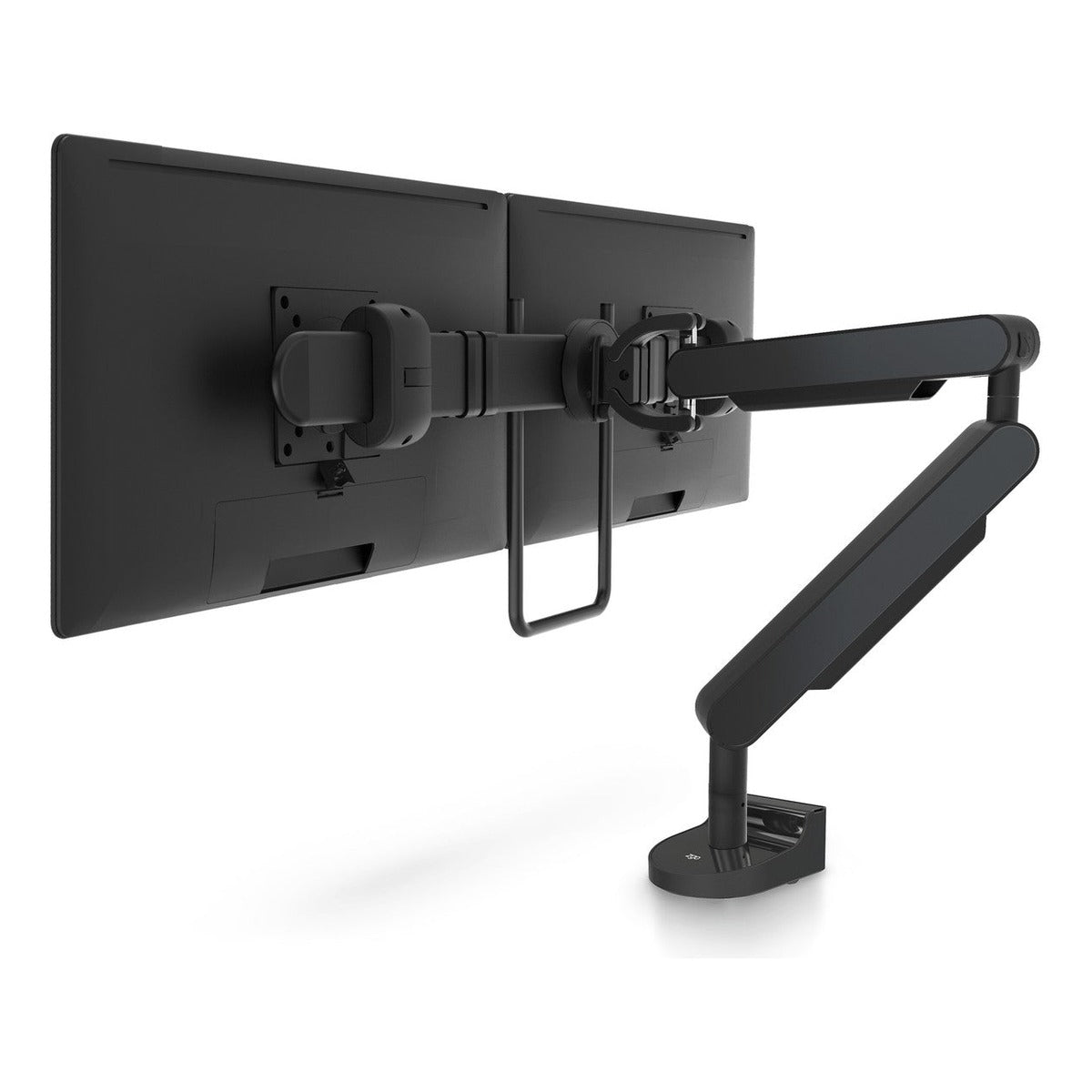

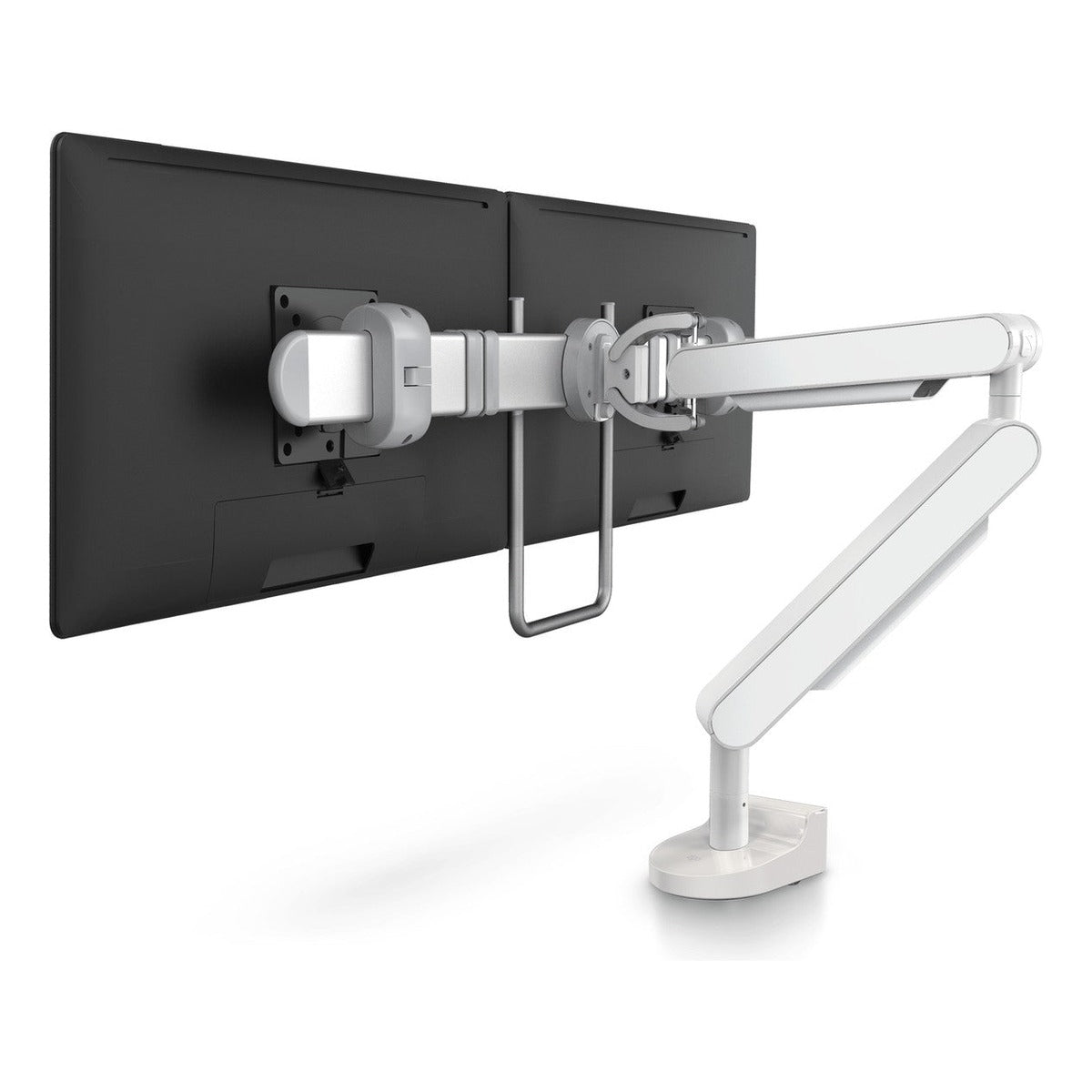

The ZGX-DS puts both monitors on a single crossbar with a grab handle in the middle. That is a different proposition from two independent arms: the pair stays edge to edge and level, and one hand on the handle moves both. For anyone reading across two screens all day — dispatch, trading, monitoring, editing — the seam staying put is the whole point.
Zgonic rates it for two screens of 3 to 4.6 kg each, up to 27 inches, with 674 mm of reach and 290 mm of vertical travel.
Screen Angle
Angling the Pair
Each head has 12 degrees of inward or outward angle, so the two screens can be toed in slightly to face the chair rather than sitting dead flat — which is what stops the outer edges falling away at a viewing angle. Each head also rotates to portrait and tilts 20 degrees either way independently.
Dual rotation stops sit at the centre and rear joints, so the whole assembly can be limited as well as the base.
The Details
Five Things That Make It a ZGX-DS
The crossbar and its handle, the screen angles, the Dial-Stop, the top-down clamp and the conversion path.
The Crossbar and Its Handle
Both monitors sit on one crossbar with a grab handle in the middle, so the pair stays edge to edge and level and one hand moves both. If you read across the seam all day, that is the whole point.
12° of Angle Per Screen
Each head angles 12° in or out, so the pair can be toed in to face the chair rather than sitting dead flat. Each head also rotates to portrait and tilts 20° either way independently.
Dial-Stop
A patent-pending dial at the base limits the swing to 180° or leaves the full 360°, so a pair of screens cannot be swung into a wall behind the desk. Rotation stops also sit at the centre and rear joints.
Fitted From Above the Desk
The top-down clamp goes on from above: one person, one tool, no crawling underneath, and it can be done at a desk somebody is still using. Universal-rail, two-piece and bolt-through clamps are available to order.
Not a One-Way Decision
Black, white or silver, with the crossbar in white or black. The quick-release mount means the same post converts to a ZG1-DS single or a ZG2-DS dual if the desk changes.
The Numbers
- Screens
- Two, on one crossbar
- Screen Weight
- 3–4.6 kg each
- Screen Size
- Up to 27 in each
- Reach
- 674 mm
- Vertical Range
- 290 mm
- Warranty
- 10 years, limited
All figures are Zgonic's own, from its ZGX-DS product page and brochure. Zgonic's page summary says 5 kg per screen while its specification table and brochure both say 3 to 4.6 kg — the lower table figure is used here. Zgonic does not publish a desk-thickness figure specifically for the ZGX-DS. The photographs are Zgonic's own product renders and photography.
Installation
Fitted From Above the Desk
The top-down clamp is the reason Zgonic gets specified for large fit-outs. Most clamps need someone underneath the desk with a spanner, which means clearing the workstation and often moving the desk. Zgonic's goes on from above: one person, one tool, no crawling, and it can be done at a desk that somebody is still using.
It takes 16 to 33 mm or 33 to 50 mm tops depending on which clamp you specify; universal-rail, two-piece and bolt-through clamps are available to order for benching systems and glass tops.
Finishes and Conversion
This Listing, and What It Becomes
Black, white or silver, with the crossbar in white or black. The quick-release mount means the ZGX-DS is not a one-way decision: the same post converts to a ZG1-DS single or a ZG2-DS dual if the desk changes.
Two honest notes. Zgonic's own page summary says 5 kg per screen while its specification table and brochure both say 3 to 4.6 kg — we publish the lower, table figure. And our silver stock is photographed from the previous generation, which does not show the Dial-Stop dial; the alt text on that image says so.
Why We Stock It
Zgonic is an Australian company based in Port Melbourne, and it is the only monitor-arm maker we stock that designs for the Australian market first. The practical upshot is the top-down clamp — fitted entirely from above the desk, by one person, at an occupied workstation — and the Dial-Stop, which solves the specific problem of a desk against a wall.
It also publishes a 10-year warranty, a recycling guide and a 29% recycled, 99% recyclable content claim, and the quick-release mount means a single arm can become a dual or a crossbar later rather than being thrown away. Call 02 9640 0642 for a floor quote, or visit our Pyrmont showroom at 1/209 Harris Street to see what is on the floor.
Zgonic, Port Melbourne
Designed in Australia, Fitted From Above
A clamp one person can fit at an occupied desk, a dial that stops a screen hitting the wall, and a 10-year warranty.
Features & Specifications
Key Features
-Two screens on one crossbar with a grab handle; both move together and stay edge to edge
-3–4.6 kg per screen (Zgonic's specification table and brochure; the page summary says 5 kg), up to 27 in each
-Extended reach 674 mm from the desk edge; vertical range 290 mm
-Patent-pending Dial-Stop 180° / 360° swivel; dual rotation stops at the centre and rear joints
-Two quick-release VESA plates 75 × 75 / 100 × 100 mm; 90° portrait pivot; tilt 20° / 20°; 12° in/out per screen
-Quick-release mount: converts to a ZG1-DS single or a ZG2-DS dual
-Semi-concealed cable management; crossbar in white or black; magnetic side panels
-Top-down desk clamp, 16–33 mm or 33–50 mm tops; universal-rail, two-piece and bolt-through clamps to order
-29% recycled and 99% recyclable content; Australian company (Port Melbourne)
-Warranty 10 years, limited (Zgonic)
Downloads
Zgonic — ZGX-DSLink →Zgonic — ZG1-DS brochure (PDF)PDF ↓Zgonic — warranty termsLink →Dimensions
ScreensTwo, on one crossbar
Screen Weight3–4.6 kg each (table and brochure); page summary says 5 kg
Screen SizeUp to 27 in each
Reach674 mm
Vertical Range290 mm
Swivel360°, with 180° Dial-Stop
Pivot90° portrait
Tilt20° / 20°
Viewing Angle12° in or out per screen
VESA75 × 75 / 100 × 100 mm
Desk Thickness16–33 or 33–50 mm (top-down clamp)
Warranty10 years, limited
All figures are Zgonic's own, from its product page and brochure linked above; where the two differ, the specification-table figure is shown and the other noted. Zgonic does not publish a desk-thickness figure for the ZGX-DS. Warranty terms are on Zgonic's warranty page and our warranty page. Zgonic's page summary and its specification table disagree on the per-screen weight (5 kg against 3 to 4.6 kg); the table figure is used above.
Frequently Asked Questions
Check three things: the screen's weight in kilograms (the number that matters most), its VESA hole pattern on the back, and your desk's thickness where the clamp goes. The weight range is in the specifications above; almost every office monitor is VESA 75 × 75 or 100 × 100. Zgonic's table gives 3 to 4.6 kg per screen and up to 27 inches each, so two 27-inch office monitors are the intended load. Two large ultrawides are not. If your screen has no VESA holes, a VESA adapter plate is usually available for it — send us the model on 02 9640 0642 and we will check before you order.
A crossbar keeps the two screens level and edge to edge and moves them together, which is what you want if you read across the seam. Two independent arms let each screen sit at its own height and angle, which is what you want if one is a main display and the other is a reference screen off to the side. Both are fine; the crossbar is the neater of the two on the desk.
It limits how far the assembly can swing — 180 degrees or the full 360 — from a dial at the base of the post, so a pair of screens cannot be swung into a wall or partition behind the desk. The ZGX-DS also has rotation stops at the centre and rear joints.
Yes. Zgonic's top-down clamp fits entirely from above the desk, so nobody is underneath with a spanner and the workstation does not need clearing. Note that Zgonic does not publish a desk-thickness figure specifically for the ZGX-DS; its ZG1 and ZG2 clamps take 16 to 33 mm or 33 to 50 mm and we will confirm yours on 02 9640 0642.
The spring tension is set for the weight of your screen. If the arm rises on its own the tension is too high; if it sags it is too low. Turn the adjuster in the direction marked until the screen stays wherever you put it. It is a normal setup step, not a fault, and it needs redoing whenever you change screens.
Zgonic publishes a 10-year limited warranty on this arm against defects in materials and workmanship in normal use. Zgonic asks for claims by email to [email protected] with proof of purchase. Claims come to Chair Dinkum on 02 9640 0642 and we lodge and manage them. Full terms are on Zgonic's site and our warranty page, and your Australian Consumer Law rights apply in addition.
Yes — visit our Pyrmont showroom at 1/209 Harris Street to see what is on the floor, and we can put a screen on an arm so you can feel the movement before you commit to a floor's worth. Call 02 9640 0642 first so we can have the one you want set up.
