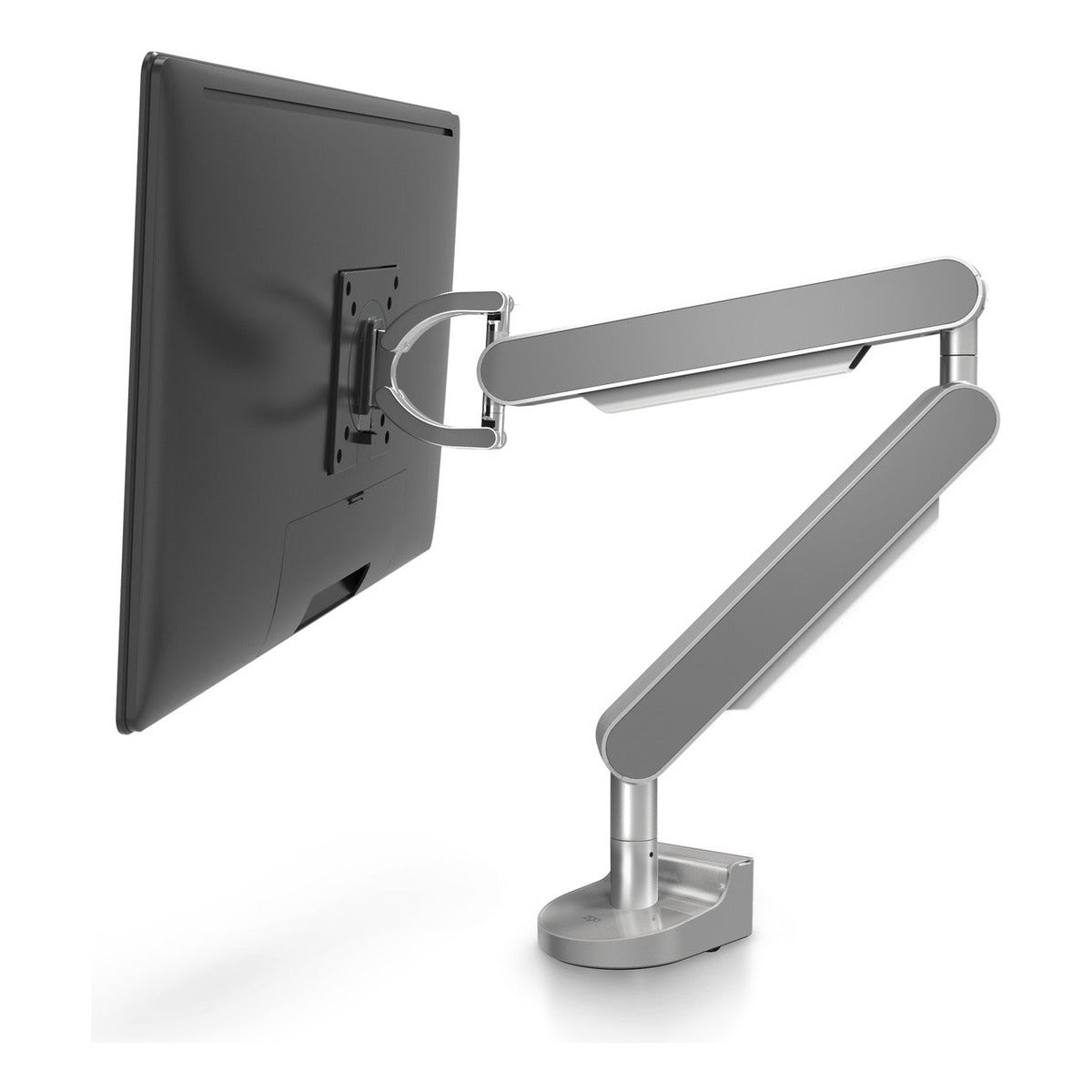

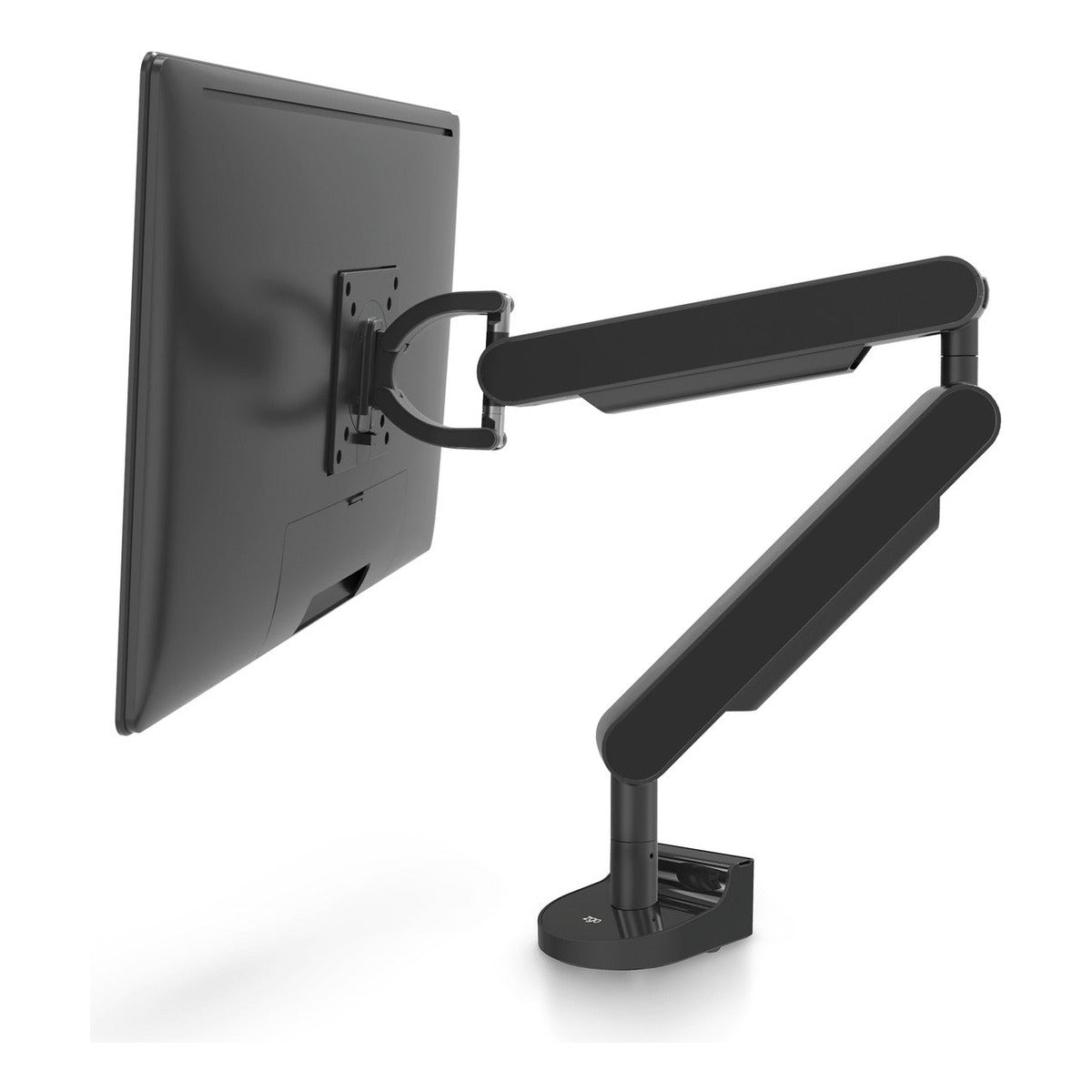

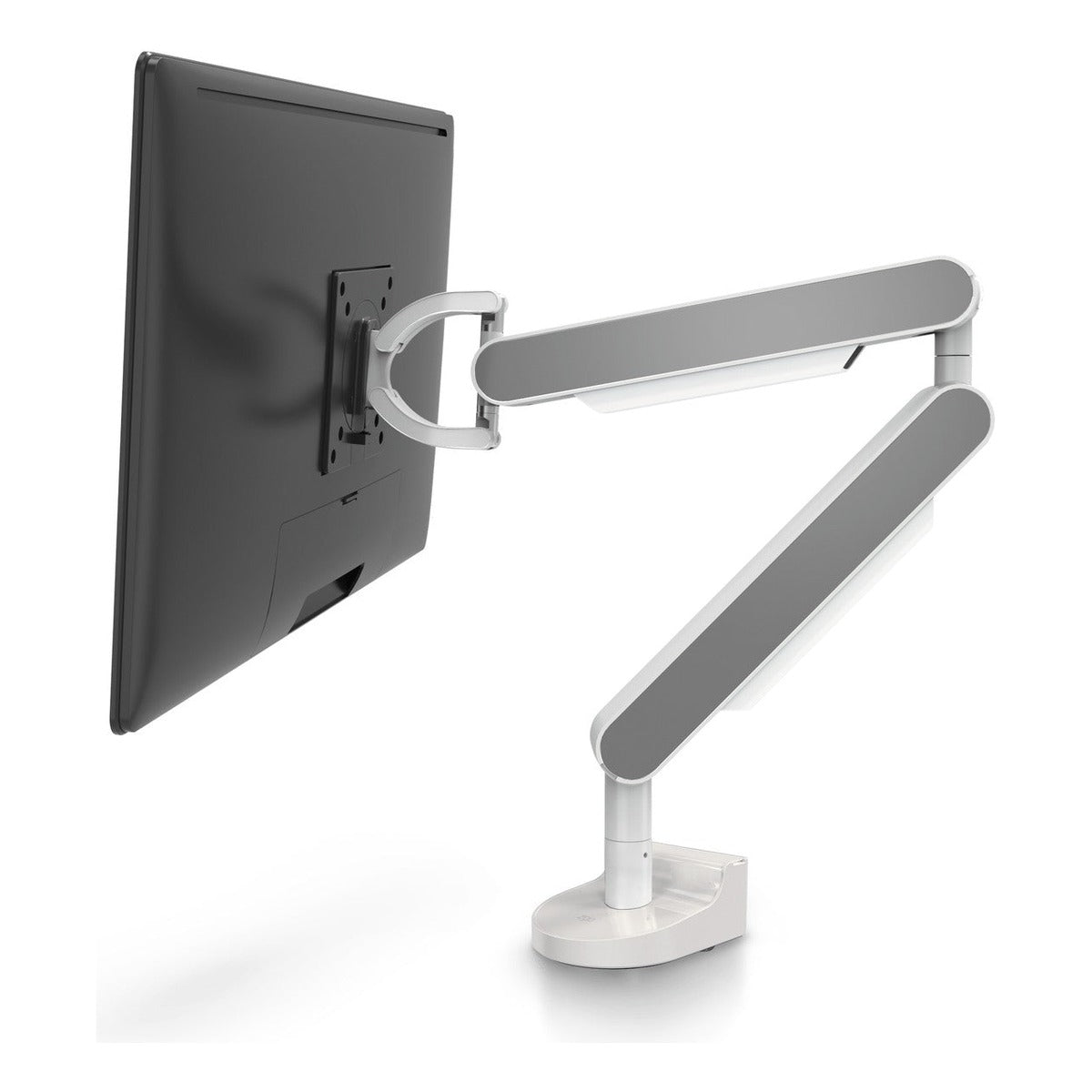

ZG1 Single Monitor Arm
Instantly improve the efficiency of your single monitor workstations with the ZG1 Single Monitor Arm. By raising the monitor off the worksurface and recovering the area directly in front of the users, they get to sit back into their task chair’s back rest with proper posture while they work on the computer, write and reference documents.
This is the healthiest way to work, but it also frees up workspace to be the most effective way to work. And by offering three-dimensional adjustability anywhere over the desktop, with a handle, users can instantly and easily move the monitor (up/down and/or closer/farther) where they need to be most comfortable and effective to accommodate their height and eyesight.
The arm’s movement also allows them to easily collaborate with others by showing them the data on their monitor or the monitor ca be moved out of the way when not in use or when the surface is needed for other things, such as laying out a blueprint. And managing the cables through the entire arm, eliminates all the cable clutter, which will significantly improve the performance of the workstations and the productivity of the employees that use them.
Top Down ClampCan be installed from above the desk, eliminating the need to go under the desk and have a second installer
Customized Side PanelsOffer any PMS colored arm or any design or logo, which is a powerful branding tool, specifically in Retail Operations.
180° LockA Safety feature that prevents the arm from rotation beyond the rear of the surface
|Monitor Size Supportable:||17” to 34”|
|Monitor Weight Supportable:||6.6 to 24.2 lbs|
|Extended Arm Reach (from Desk Edge):||23.6”|
|Vertical Arm Adjustment Range:||11.4”|
|VESA Compliance:||75 x 75mm and 100 x 100mm|
|Arm Swivel Range (CW/CCW):||360°|
|Monitor Pivot Range:||360°|
|Monitor Tilt Range:||Forward 20° / Backward 35°|
|Quick Release for VESA Attachment:||For ease of monitor replacement|
|Quick Release for Mounting Attachment:||For ease of transition to crossbar mounting|
|Desk Fixing Options:||Top-down desk clamp|
|Standard Clamp Thickness Range:||.6” to 2”|
|Warranty Period:||Limited 10 years|
|Sustainability:||29% recycled and 99% recyclable content|
|Cable Management:||Concealed within upper and lower arm|
White body & white side panel cover, Silver body & silver side panel cover, Black body & black side panel cover
