HAT Collective's spring-balanced monitor arm for one screen of 1 to 9 kg and up to 32 inches. It gives 337 mm of height adjustment and 602 mm of extension, mounts from above with the C-clamp or grommet mount (both included) on desks up to 38 mm thick, and carries HAT's 10-year warranty.
HAT Collective E2
A Spring Arm for Everyday Screens
The E2 is HAT Collective's spring-balanced monitor arm, which HAT describes as the next generation of its original Envoy arm. It holds one screen of 1 to 9 kg, up to 32 inches, and moves up, down, in and out with one hand.
It gives 337 mm of height adjustment, a maximum monitor height of 523 mm and 602 mm of extension, so the screen sits at the height and distance you choose rather than where its stand puts it.
Set-Up
Set It Up From Above the Desk
The E2 clamps to the desk edge or fixes through a grommet hole, both from above, on worktops up to 38 mm thick. A VESA 75 and 100 adapter is included, so most screens bolt straight on.
Set the spring with the tension indicator before you mount the screen. The base can be set to rotate through 180 or 360 degrees, which stops the arm swinging into a wall or partition behind the desk.

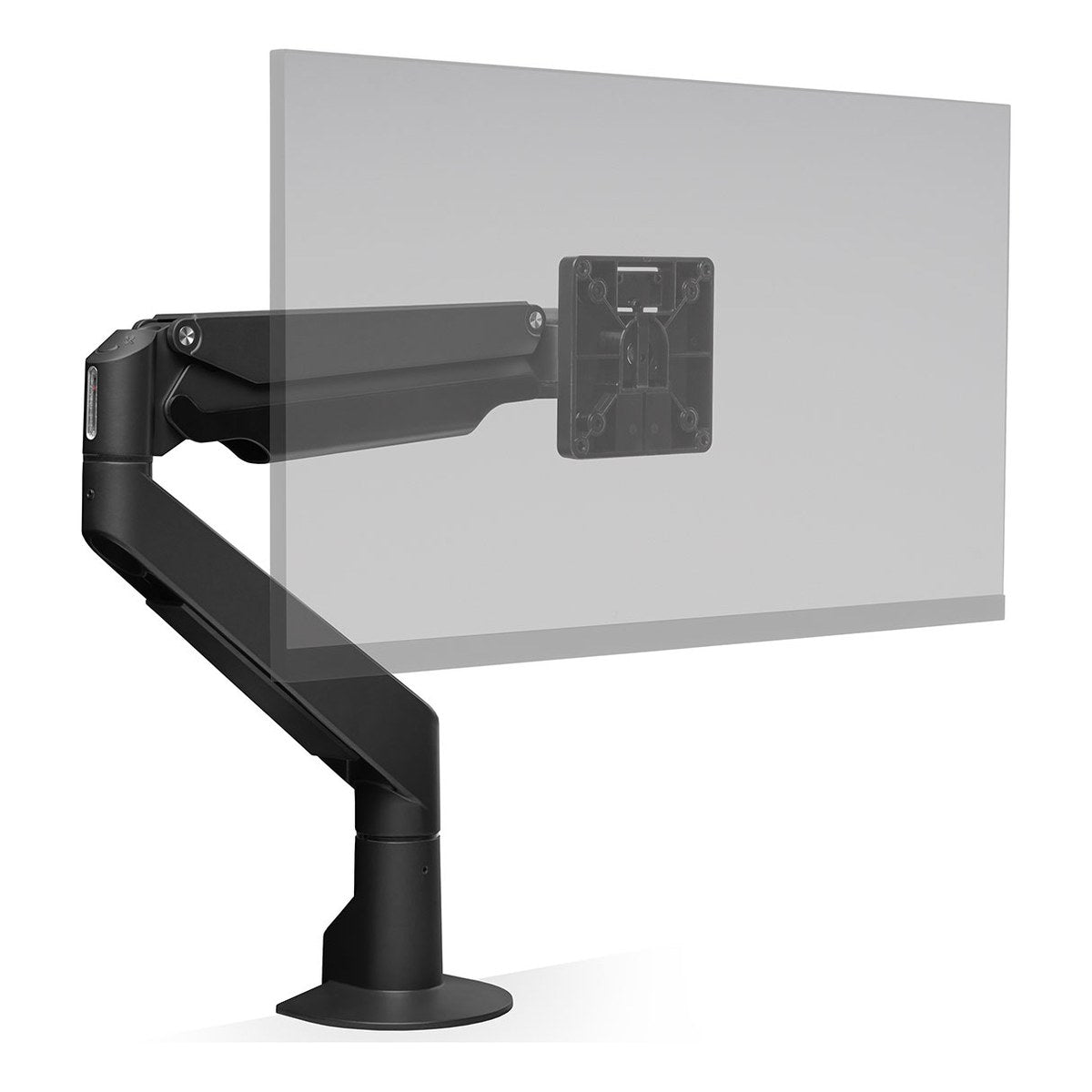

HAT Collective E2 monitor arm
The Details
Five Things That Make It an E2
The rating, the fold, the tension indicator, the finishes and the mount.
One Screen, 1 to 9 kg
Rated by HAT for 1 to 9 kg and screens up to 32 inches; HAT's brochure rates curved screens to 16 lb, about 7.2 kg.

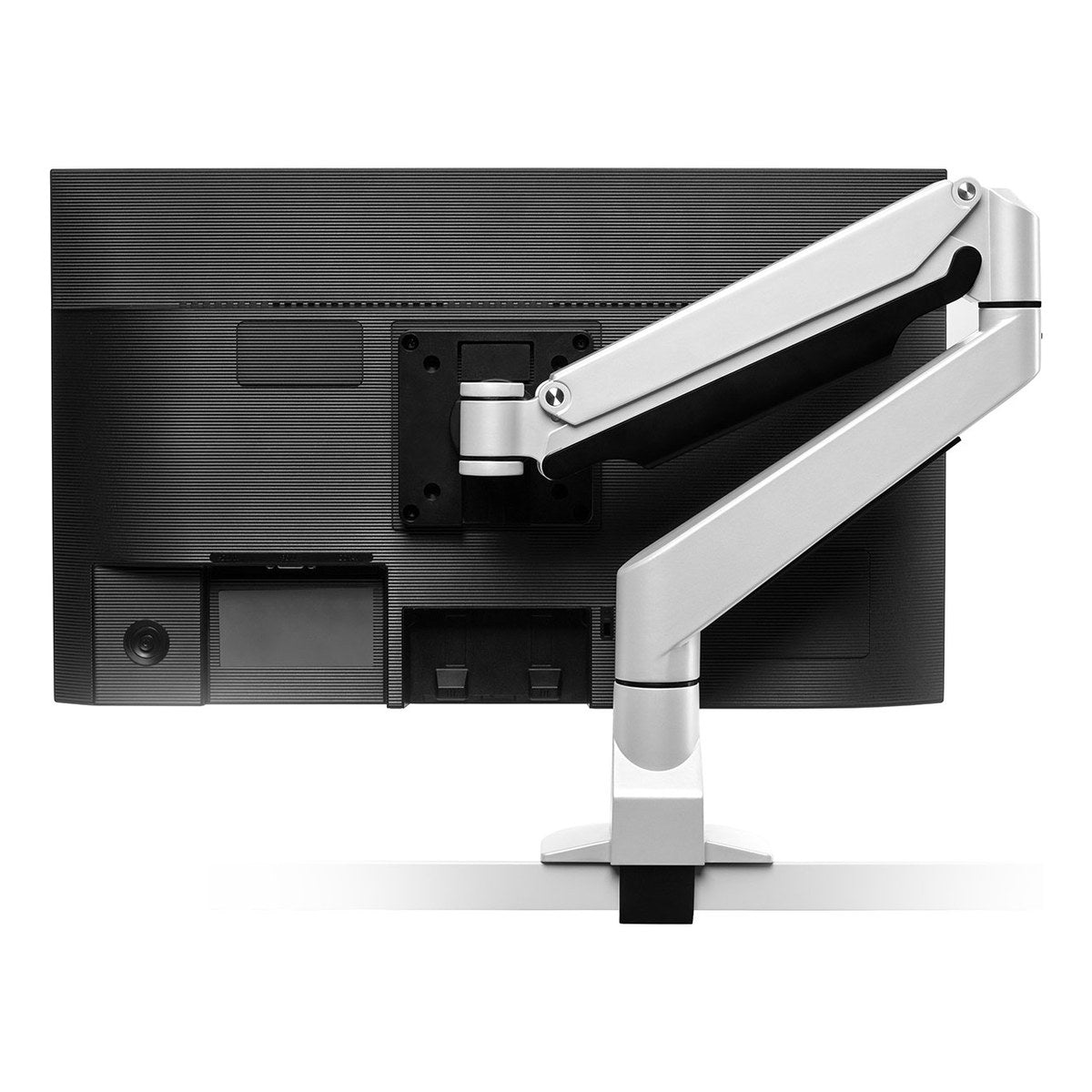

Folds Away
The arm folds in close behind the screen when you want the desk clear.
Tension Indicator
Set the spring to the screen's weight before it goes on the arm. Shown here on the E2 Dual.

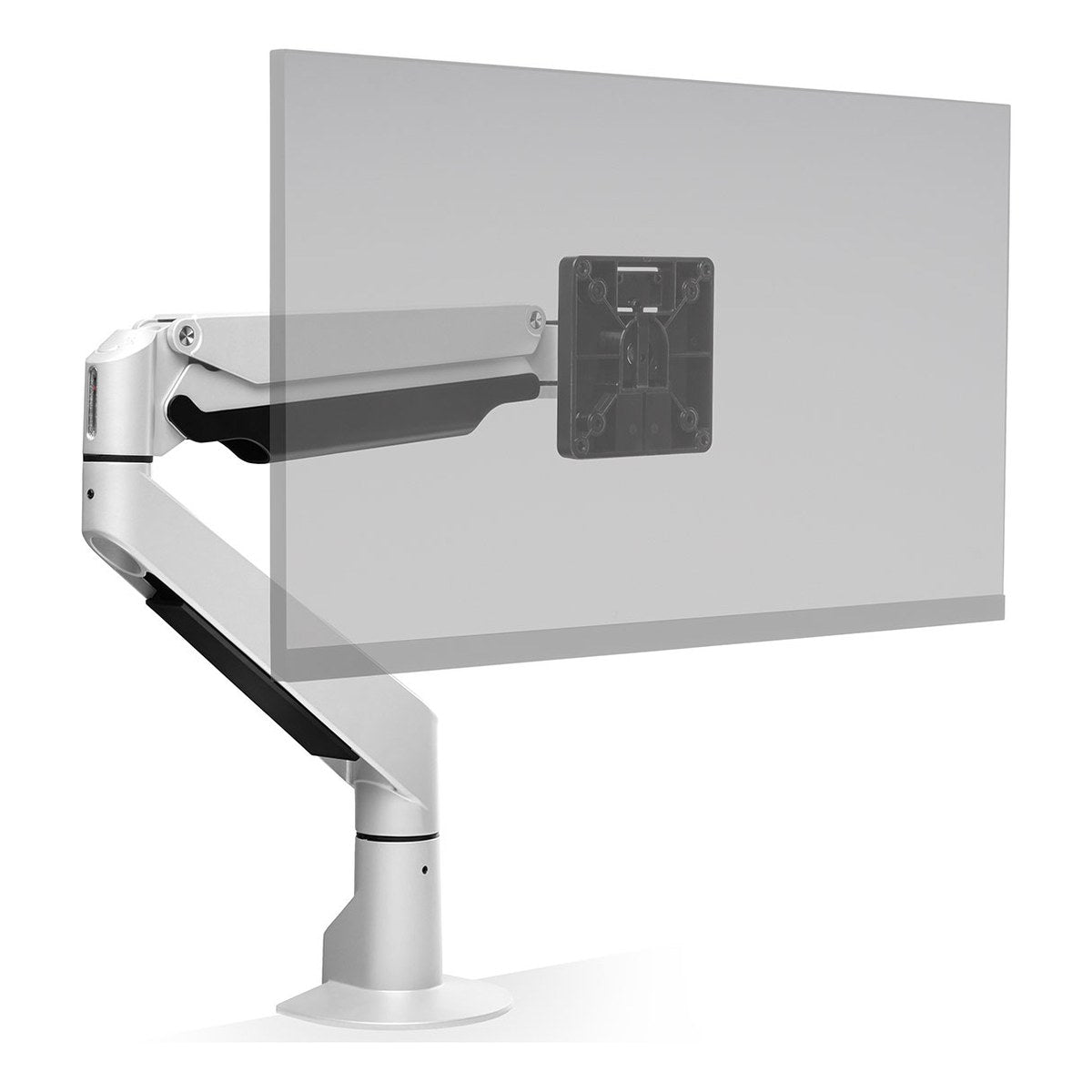

Black or White
Vista Black 104 or Flat White 248, with the screen rotating from landscape to portrait.
Mounts From Above
C-clamp and grommet mount both included, fitted from above on desks up to 38 mm thick.
The Numbers
- Screen Weight
- 1–9 kg
- Screen Size
- Up to 32 in
- Height Adjustment
- 337 mm
- Extension
- 602 mm
- Desk Thickness
- Up to 38 mm
- Warranty
- 10 years
Figures are from HAT Collective's Australian E2 product pages and HAT's E2 brochure (Rev E, 2024). HAT's US page rates the E2 at 2–22 lb. HAT does not publish the arm's own weight, materials or tilt angles. Weigh your screen without its stand.
E2 Single, Black or White
This Model
This listing is the HAT Collective E2 Single in Vista Black (E2-1-104) or Flat White (E2-1-248), with C-clamp, grommet mount and VESA adapter included. Choose the finish above.
Two screens? The E2 Dual carries two screens up to 27 inches on one pole. A heavier screen, up to 20.4 kg, needs the E5 Single Dynamic.
Why We Stock the HAT Collective E2
We stock the E2 as our everyday arm: it suits the 1 to 9 kg screens most desks have, sets up from above the desk with the clamp or grommet mount in the box, and has a tension indicator so the spring is right before the screen goes on.
HAT backs the E2 with a 10-year warranty under normal use of a 40-hour, five-day week, and claims are handled by Chair Dinkum in Sydney on 02 9640 0642. Your rights under the Australian Consumer Law for faulty or damaged goods are separate and are not limited by it.
Features & Specifications
Key Features
-Spring-balanced monitor arm for one screen
-Screen weight 1–9 kg (HAT Australia); curved screens up to 16 lb, about 7.2 kg (HAT brochure)
-Screens up to 32 in (81.2 cm)
-Height adjustment 337 mm; maximum monitor height 523 mm
-Extension 602 mm
-Portrait-to-landscape screen rotation; base rotation set to 180° or 360°
-Tension indicator to pre-set the spring to the screen's weight
-C-clamp and grommet mount included, installed from above, desks up to 38 mm
-VESA 75 × 75 and 100 × 100 adapter included
-Optional Flexmount (8524-FM-CK) and Thru-Desk (8524-TM-CK) kits (ask us)
-Finishes: Vista Black (104), Flat White (248)
-Warranty: 10 years (HAT Collective)
Downloads
Chair Dinkum — warrantyLink →Dimensions
Screens1
Screen Weight1–9 kg
Curved ScreensUp to about 7.2 kg (16 lb)
Screen SizeUp to 32 in
Height Adjustment337 mm
Maximum Monitor Height523 mm
Extension602 mm
Base Rotation180° or 360°
Desk ThicknessUp to 38 mm
VESA75 / 100 mm
MountingC-clamp and grommet, included
CodesE2-1-104 black; E2-1-248 white
Warranty10 years
Figures are from HAT Collective's Australian E2 product pages and HAT's E2 brochure (Rev E, 2024). HAT's US page rates the E2 at 2–22 lb. HAT does not publish the arm's own weight, materials or tilt angles. Weigh your screen without its stand. Warranty terms are on our warranty page.
Frequently Asked Questions
If the screen weighs 1 to 9 kg without its stand (about 7.2 kg or less if it is curved), is no larger than 32 inches and has 75 or 100 mm VESA holes, it is within HAT's rating. Check the weight on the screen maker's specification sheet.
It clamps to the desk edge or fixes through a grommet hole on worktops up to 38 mm thick, installed from above. If your top is thicker, or a beam or modesty panel sits at the back edge, call 02 9640 0642 before you order.
The E2 is a straightforward spring arm for everyday screens up to 9 kg. The E5 Single Dynamic is HAT's heavier-duty arm: up to 20.4 kg and 49 inches, with a quick-disconnect VESA plate and a 15-year warranty, at a higher price.
This arm carries one screen. The E2 Dual carries two screens of up to 27 inches each on one pole and one clamp.
10 years. HAT Collective's published warranty covers E2 monitor arms for 10 years under normal use of a 40-hour, five-day week. Claims are handled by Chair Dinkum in Sydney on 02 9640 0642; full terms are on our warranty page. Your rights under the Australian Consumer Law for faulty or damaged goods are separate and are not limited by it.
Call 02 9640 0642 to check which arms are on display at our Pyrmont showroom, 1/209 Harris Street, before you visit. We can also check your screen and desk over the phone before you order.
