CBS Flo Monitor Arm
The Arm Everyone Copies
The Flo has been the reference office monitor arm since 2011, and CBS rebuilt it in 2025 rather than restyling it. The current arm (CBS code FLO/013/010) takes a screen of 2 to 7 kg up to 34 inches, flat or curved to a 1000R radius, with 584 mm of horizontal reach and 483 mm of vertical travel — which is enough to put a screen at standing height on a converter or drop it right down for a shared desk.
It moves with one hand, holds where you leave it, and rotates to portrait at the head without tools. Silver, white or black.
The Mechanism
The Dual Rate Spring
CBS's patent-pending Dual Rate Spring is the difference between this and the generation before it. A single-rate spring is a compromise: set it for a light screen and a heavy one sags, set it for a heavy one and a light screen floats. A dual-rate spring changes its effective rate through the travel, so one arm covers 2 to 7 kg and holds position properly at both ends of that range.

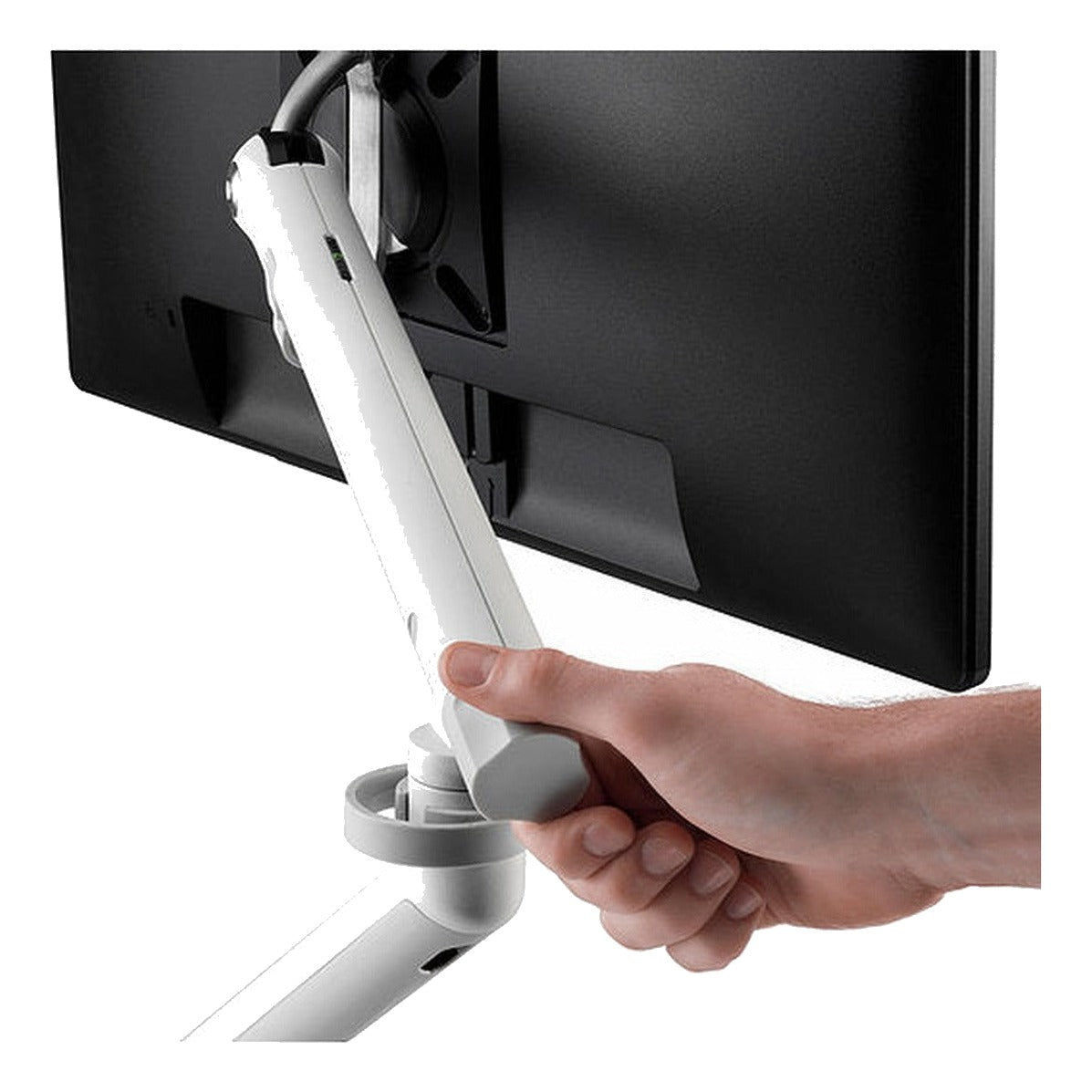

You set it with the diamond D-ring on the arm, against a printed weight gauge, rather than by counting turns of an allen key. It takes seconds and you can see what you have set it to.
The Details
Five Things That Make It a Flo
The spring, the D-ring, the VESA head, the cable route and the desk fittings — the five parts of the arm you actually deal with.

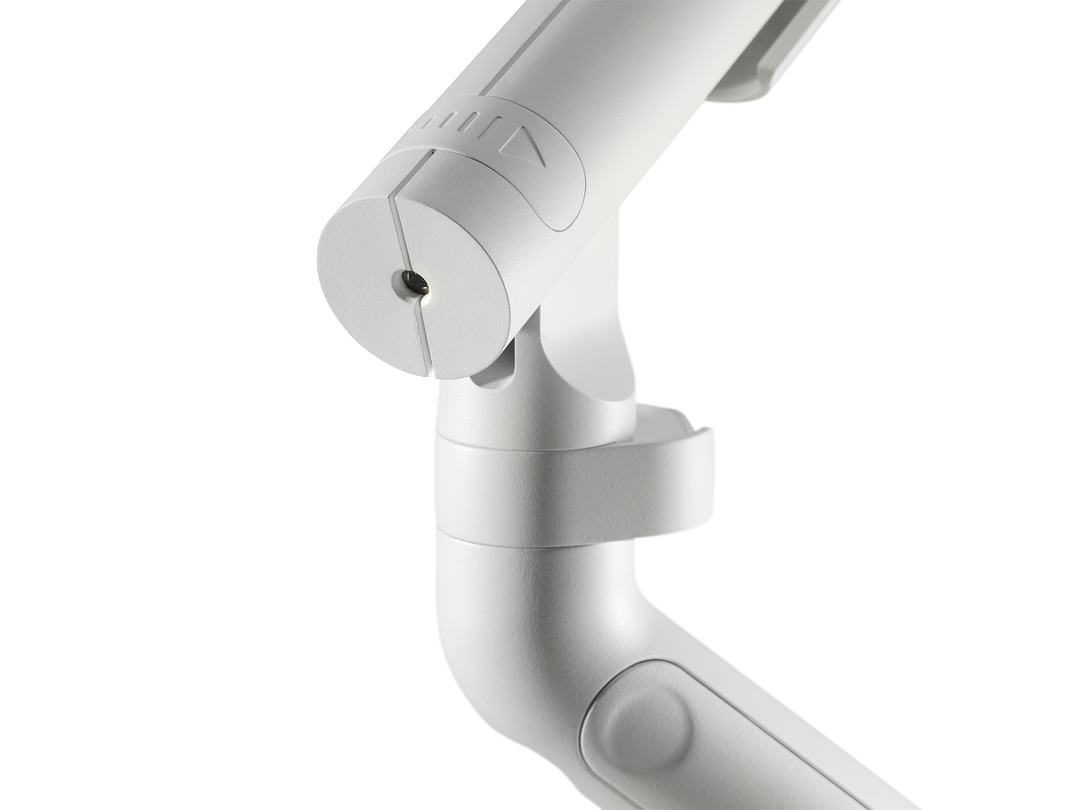

The Dual Rate Spring
A single-rate spring is a compromise. CBS's patent-pending dual-rate spring changes its effective rate through the travel, so one arm covers 2–7 kg and holds position at both ends of that range.

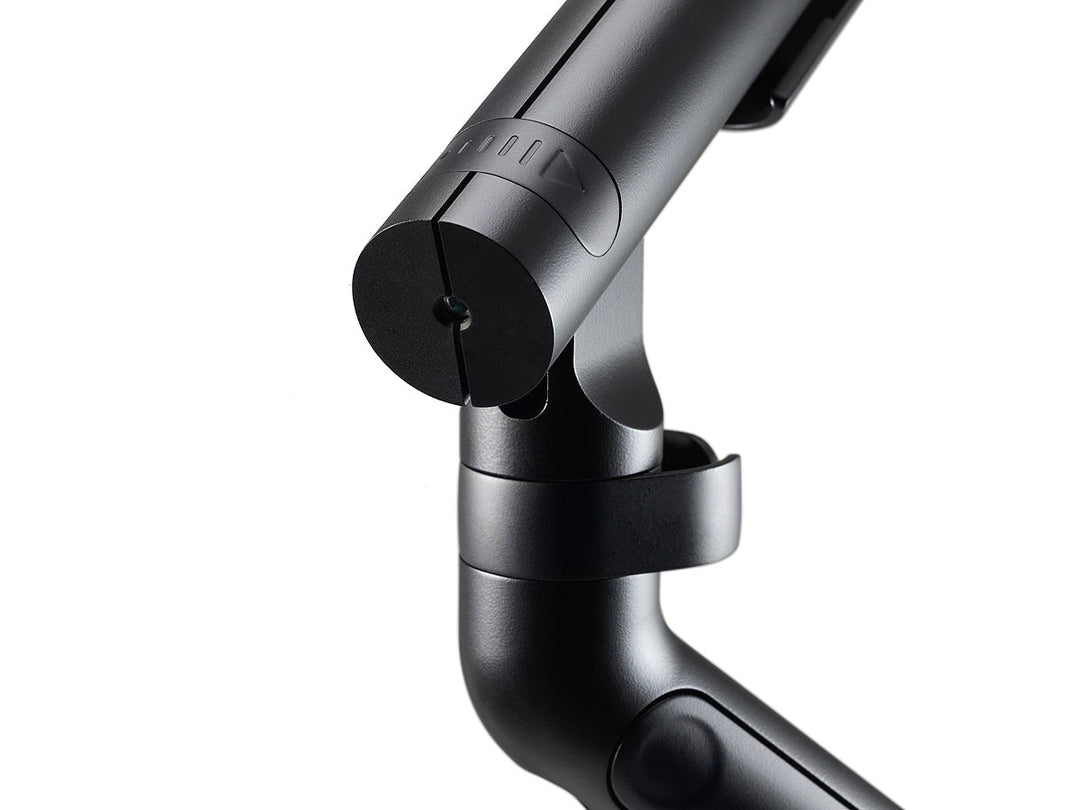

The D-Ring Adjuster
Tension is set with the diamond D-ring on the arm, against a printed weight gauge, instead of by counting turns of an allen key. It takes seconds and you can see what you have set it to.
The VESA Head
VESA 75 and 100 compliant, turning between portrait and landscape on fingertip pressure with no lock to release first. A 180° stop function keeps the screen from swinging into the desk beside you.
Three-Point Cable Management
Cables clip in at the head, run through the forearm and drop at the post through a cradle that holds the loop. The mid clip on the current generation is what stops the slack bellying out.
Three Desk Fittings
Split clamp 0–65 mm, top-mount clamp 12–25 mm, or a grommet fitting 10–35 mm through an existing cable port. The fittings are shared across the CBS range, so a mixed floor takes one set of spares.
The Numbers
- Screen Weight
- 2–7 kg
- Screen Size
- Up to 34 in, flat or 1000R curved
- Horizontal Reach
- 584 mm
- Vertical Travel
- 483 mm
- VESA
- 75 and 100
- Warranty
- 12 years
All figures are Colebrook Bosson Saunders' own, from its Flo product page and the MillerKnoll press material. The photographs are CBS's own product photography.

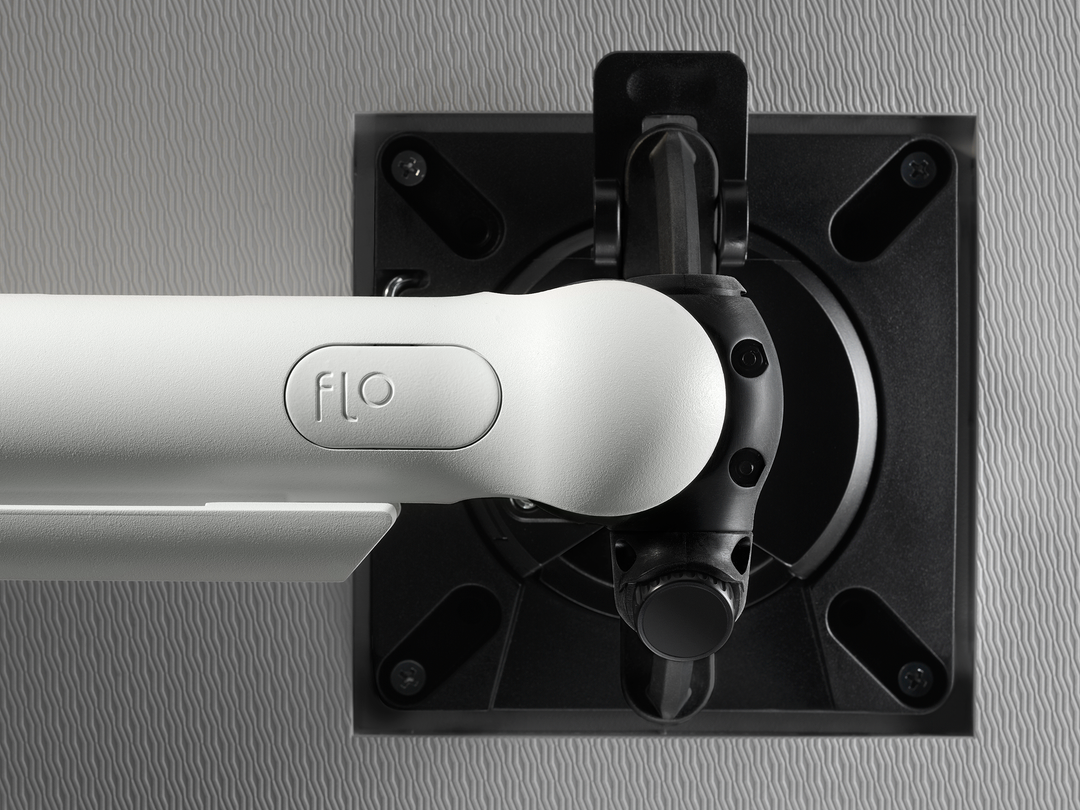

The Head
Portrait in One Movement
The head is VESA 75 and 100 compliant and rotates between portrait and landscape with fingertip pressure — no lock to release first. Developers and anyone reading long documents turn a screen on its side and leave it there; on a shared desk the next person turns it back.
There is a 180-degree stop function on the arm, which matters when the desk is against a wall or in a bank: it stops a screen swinging into the person beside you.

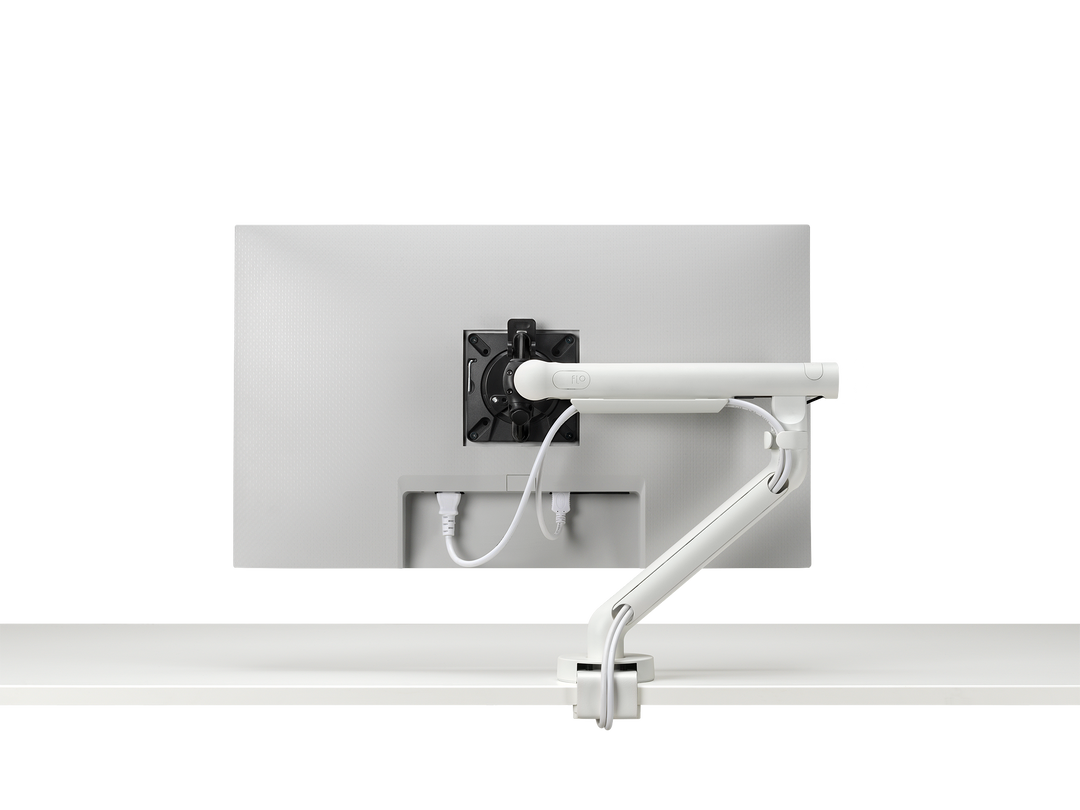

Cable Management
Cables, Properly
Three-point cable management: the cables clip in at the head, run through the forearm, and drop at the post through a cradle that holds the loop instead of letting it swing. CBS added a mid clip on the current generation, which is the bit that stops the slack bellying out when the screen is pushed back.
The side panels come off and can be swapped, so the arm can be re-finished rather than replaced if a floor changes colour scheme.
Why We Stock It
Colebrook Bosson Saunders has been designing monitor arms in London since 1990 and is now part of MillerKnoll. Its arms turn up in the fit-outs where somebody cared: the mechanism is quiet, the cable route is properly thought through, and the 12-year warranty says what CBS thinks of its own tolerances.
We stock CBS because it sits in the gap between a cheap arm that sags in a year and a Humanscale at twice the price, and because the desk fittings are shared across the range — so a floor with Flo and Ollin arms takes one set of spares. Call 02 9640 0642 for a floor quote, or visit our Pyrmont showroom at 1/209 Harris Street to see what is on the floor.
Colebrook Bosson Saunders
Designed and Engineered in Britain
Thirty-five years of monitor arms, a 12-year warranty, and desk fittings that are shared across the range.
Features & Specifications
Key Features
-Patent-pending Dual Rate Spring Technology; one diamond D-ring tension adjuster with a weight gauge
-Screen weight 2–7 kg (4.4–15.4 lb); screens up to 34 in, flat or curved to a 1000R radius
-Horizontal reach 584 mm; vertical travel 483 mm; 180° stop function
-VESA 75 and 100 compliant; fingertip portrait-to-landscape rotation
-Three-point integrated cable management with a smart cable cradle and mid clip; interchangeable side panels
-Desk fittings: split clamp 0–65 mm, top-mount clamp 12–25 mm, or grommet 10–35 mm
-49% recycled content; designed to be 100% recyclable; plastic-free packaging (CBS)
-Red Dot Design Award 2011 and 2025; Good Design Award (GDA Japan) 2025; designed and engineered in Britain
-Warranty 12 years (CBS)
Downloads
Colebrook Bosson Saunders — Flo monitor armLink →Colebrook Bosson Saunders — Flo ModularLink →MillerKnoll — CBS reimagines the Flo monitor arm (April 2025)Link →MillerKnoll — Flo wins Good Design Award 2025Link →Chair Dinkum — warrantyLink →Dimensions
Screen Weight2–7 kg (4.4–15.4 lb) per arm
Screen SizeUp to 34 in, flat or curved to 1000R
Horizontal Reach584 mm
Vertical Travel483 mm
Stop Function180°
VESA75 and 100 compliant
Desk ThicknessSplit clamp 0–65 mm; top mount 12–25 mm; grommet 10–35 mm
Recycled Content49% (CBS)
Warranty12 years
All figures are Colebrook Bosson Saunders' own, from its Flo product page and the MillerKnoll press releases linked above. CBS does not publish a per-fitting weight or a recycled-content figure for the Ollin. Warranty terms are on CBS's site and our warranty page.
Frequently Asked Questions
Check three things: the screen's weight in kilograms (the number that matters most), its VESA hole pattern on the back, and your desk's thickness where the clamp goes. The weight range is in the specifications above; almost every office monitor is VESA 75 × 75 or 100 × 100. CBS gives 2 to 7 kg and up to 34 inches for the Flo. If your screen has no VESA holes, a VESA adapter plate is usually available for it — send us the model on 02 9640 0642 and we will check before you order.
Yes — CBS states up to 34 inches, flat or curved to a 1000R radius, within the 2 to 7 kg weight range. A curved panel puts its mass further from the VESA plate than a flat one of the same weight, so set the tension with the screen actually fitted rather than guessing.
Measure the desk where the arm will go. The split clamp takes 0 to 65 mm and is the default; the top-mount clamp takes 12 to 25 mm and sits more discreetly; the grommet fitting takes 10 to 35 mm and goes through an existing cable port. If the desk has a thick edge beam or a return in the way, send us a photo on 02 9640 0642 and we will tell you which one works.
Weight range and mechanism. The Flo uses a dual-rate spring and covers 2 to 7 kg with 584 mm of reach. The Ollin is cord-balanced and covers 0 to 9 kg with 674 mm of reach and no minimum weight — which is what you want for a tablet, a laptop tray or a very light screen. For a normal office monitor either works; the Flo is the more compact of the two on the desk.
The spring tension is set for the weight of your screen. If the arm rises on its own the tension is too high; if it sags it is too low. Turn the adjuster in the direction marked until the screen stays wherever you put it. It is a normal setup step, not a fault, and it needs redoing whenever you change screens.
Colebrook Bosson Saunders publishes a 12-year warranty on this arm against defects in materials and workmanship in normal use. Claims come to Chair Dinkum on 02 9640 0642 and we lodge and manage them. Full terms are on Colebrook Bosson Saunders's site and our warranty page, and your Australian Consumer Law rights apply in addition.
Yes — visit our Pyrmont showroom at 1/209 Harris Street to see what is on the floor, and we can put a screen on an arm so you can feel the movement before you commit to a floor's worth. Call 02 9640 0642 first so we can have the one you want set up.
