An ergonomic workstation for architects and CAD designers starts with a screen that is easy to position, a chair that suits the way you move between tasks, and a desk height that supports relaxed forearms. Set the monitor top at eye level or just below, begin at roughly an arm’s length away, and keep the keyboard and mouse close to the front edge of the desk. Then choose equipment that makes those positions repeatable when you switch from modelling to mark-ups, meetings, and material research.
Architecture and design work is screen-intensive, but it is not one static task. A typical day can move between a dual-screen Revit model, a large drawing set, a Wacom tablet, a physical sketchbook, a video call and a desk-side review with a colleague. The right ergonomic workstation does not lock you into one ideal pose. It gives you a sound neutral starting position, then makes small changes easy as the task changes.
What makes an ergonomic workstation for architects?
A practical CAD workstation has three priorities: clear viewing geometry, supported hands and forearms, and enough range to change position without rebuilding the desk. WorkSafe Queensland recommends setting the monitor at eye level or below, beginning at about an arm’s length from the eyes, keeping the keyboard and mouse directly in front of the user, and changing posture regularly rather than remaining seated or standing continuously.[1] Those are useful starting points, not rigid measurements. Screen size, prescription lenses, desk depth and the detail of the drawing all affect the final position.
For most architects and designers, the most effective order is simple: position the display for the work, set the desk or keyboard surface to support the arms, then adjust the chair to support the feet, hips and back. Starting with the chair alone often leads to an awkward compromise where the display remains too low, too far away or off-centre.
Start with viewing geometry, not chair height
When you are working from a detailed plan or a 3D model, the monitor needs to be in front of you often enough that repeated turning does not become the default. Place the primary display centrally. If you use a second monitor for schedules, email or reference images, position it immediately alongside rather than far out to one side. Angle both screens gently towards you. If a second display is only used occasionally, move it away between tasks instead of leaving your head turned for hours.
CAD users often sit closer to the screen while inspecting dense drawings. That can be appropriate if it is comfortable for the eyes, but do not solve a readability problem only by leaning forward. Increase application zoom, review operating-system scaling and move the screen closer using an adjustable arm. For bifocal or progressive lenses, lower the display enough that you can look through the appropriate part of the lens without tilting your head back. WorkSafe Queensland specifically notes that monitor height should be adjusted for the type of glasses worn.[1]
A monitor arm lets the display position follow the work rather than forcing the user to follow the monitor stand. The CBS Flo Single Monitor Arm is a sensible starting point for a single-screen design desk, while the CBS Flo Dual Monitor Arm suits two matched displays. For a heavier or unusually wide display, review the monitor weight, VESA mounting pattern, desk thickness and arm specification before ordering. The CBS Ollin is worth considering when you need a broader adjustment range, but compatibility must still be checked against the exact monitor.
Build screen freedom into the desk
Architectural software rewards desk space. A raised monitor creates room for a drawing tablet, sketch pad, scale ruler or printed set without moving the keyboard to the side. CBS describes the Flo as a fully articulated arm for single or dual-screen arrangements, with a stated supported screen-weight range of 2 to 7 kg.[3] That range is only one part of a buying decision. Confirm the display’s weight without its original stand, the VESA plate, the desk edge or grommet-mount option, and whether there is enough space behind the desk for the arm to move.
Do not treat the arm as a decoration. Adjust it at the start of the day and again when the task changes. Pull a reference screen closer for a fine detail review, push it back for a presentation, or swing it aside to clear space for a physical model. If you are uncertain between arm types, the CBS Flo versus Ollin comparison guide explains the practical differences in a little more depth. You can also browse the complete monitor arms collection to compare mounting and display options.
Choose a chair for the way you actually work
Architects rarely sit in one position all day. You may perch while reviewing a board, lean forward for annotation, sit upright for a drawing session, or turn to a material library beside the desk. Your chair should support adjustment without becoming a distraction. Look for a reliable seat-height range, easy access to controls, a backrest that matches the way you sit, and clearance under the desk for your knees and armrests.

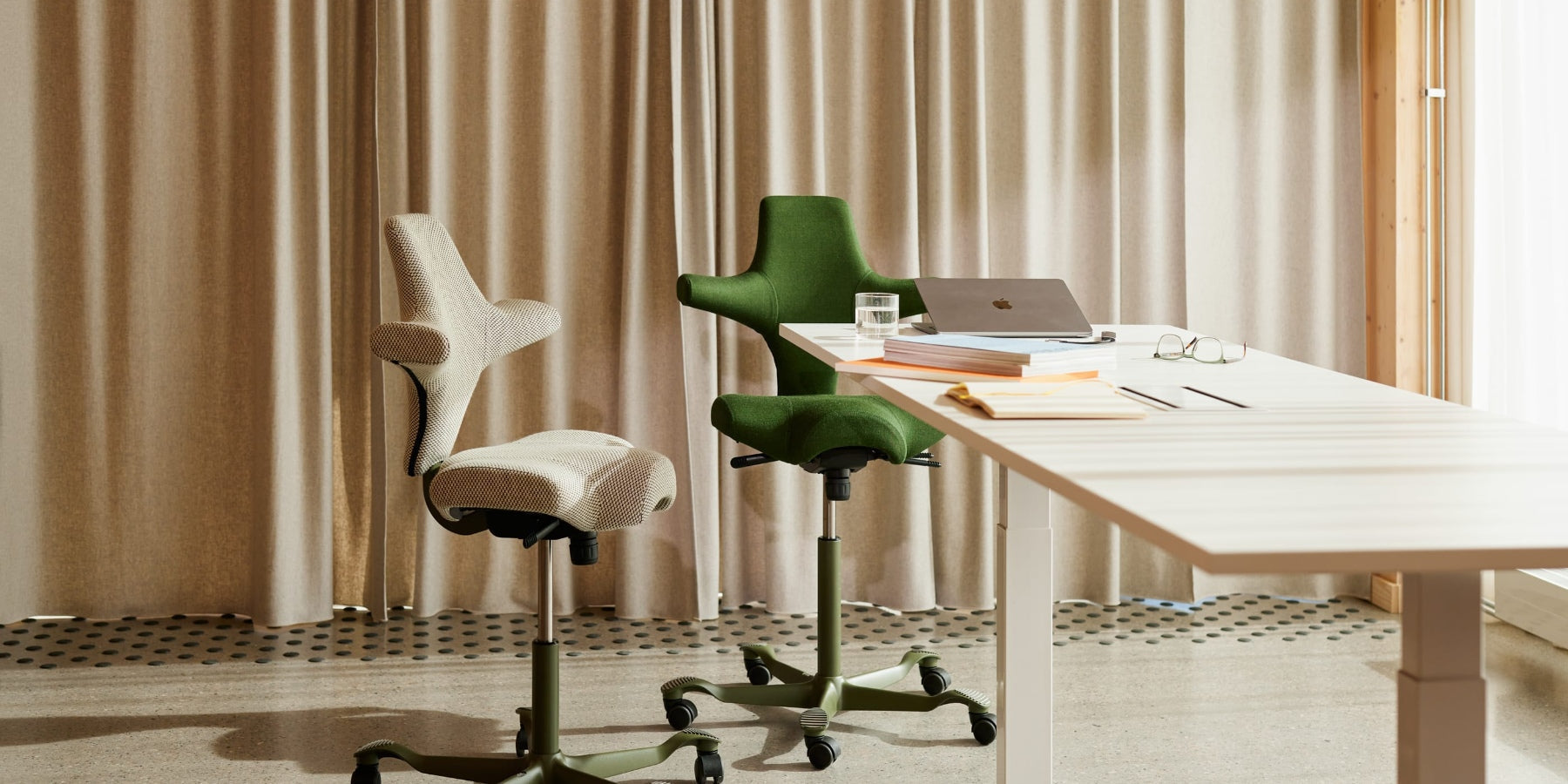

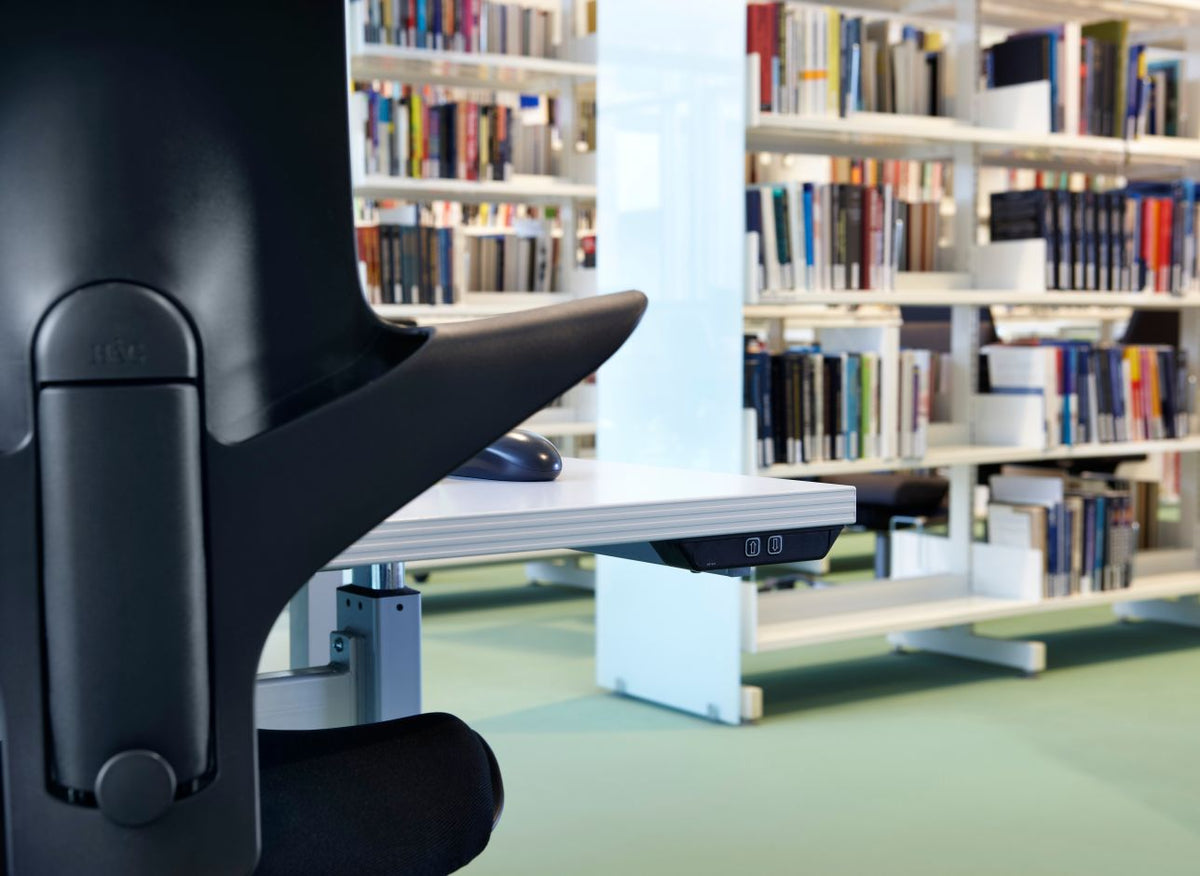

The HÅG Capisco Saddle Chair 8106 is a useful option for work that involves regular position changes. HÅG describes the Capisco’s saddle seat as encouraging active sitting and multiple positions, including forward, backward and sideways.[2] That does not make it the right chair for every person or every desk. It is especially important to choose a gas lift that suits the desk height. If you use a higher work surface or a sit-to-stand desk, the optional HÅG StepUp footring can provide a stable place for the feet when seated higher.
If your CAD work consists mainly of long, forward-facing sessions and you prefer a conventional seat, compare models in the broader task chair collection. Try a chair at your own desk height where possible. Your feet should rest securely on the floor or a stable footrest, your hips and knees should be comfortable, and your forearms should not be pushed upward to reach the keyboard. WorkSafe Queensland also recommends a footrest if the feet cannot rest comfortably on the floor after chair adjustment.[1]
Comparison: match the workstation to the task
| Design task | Main adjustment to prioritise | Practical starting point | Check before buying |
|---|---|---|---|
| Single-screen CAD and documentation | Display height, depth and tilt | CBS Flo Single with an adjustable task chair | Monitor weight, VESA pattern, desk-edge clearance |
| Dual-screen modelling and reference work | Central primary screen and even second-screen position | CBS Flo Dual or comparable dual-arm solution | Combined monitor weight, desk width, cable routing |
| Mark-ups, sketching and material review | Clear desk surface and freedom to turn or perch | HÅG Capisco with the screen moved out of the work zone | Desk height, selected gas lift, foot support |
| Long render reviews and video meetings | Visual comfort and regular posture change | Sit-to-stand desk paired with a monitor arm | Display height in both seated and standing positions |
Build the workstation in the right order
First, place the primary monitor in front of you and set its top edge around eye level or slightly lower. Second, set the keyboard surface so your shoulders can stay relaxed and the forearms have support. Third, adjust the chair so your feet are supported, then use a footrest if required. Finally, tune the monitor arm and chair through a normal week of tasks. A setting that works for 30 minutes of Revit navigation may need a slight change for a two-hour drawing review.
Try not to turn every adjustment into a rule. The objective is reduced strain and greater ease, not a perfect-looking workstation photograph. The standing desk setup guide is useful if you are adding movement to a CAD workflow, while the guide to ergonomic desk accessories can help with supporting items such as footrests and document holders.
Who is this workstation approach for?
This approach suits an architect splitting time between BIM modelling, mark-ups and consultant meetings. It also works for interior designers working with image references and samples, drafters who switch between documentation and detail work, and visualisation specialists operating wide or dual displays. Small studios can apply the same principles desk by desk. Start with the primary screen, the individual user and the task that consumes most of the day, then standardise only where the actual monitors and desk dimensions match.
Persistent discomfort, numbness, or pain that continues beyond a reasonable adjustment period needs professional health advice. Equipment can support a more comfortable work setup, but it is not a substitute for individual clinical assessment.
Frequently asked questions
How high should a monitor be for CAD work?
Start with the top of the display at eye level or just below, then adjust for your screen size, desk height and prescription lenses. WorkSafe Queensland recommends this starting point and notes that people wearing different types of glasses may need a different monitor height.[1]
Should architects use one monitor or two?
One monitor can work well when desk space is tight or the task is focused. Two screens are useful when you routinely keep a model, drawing set, reference image or schedule open at the same time. The important point is to keep the primary screen centred and position the second screen close enough that repeated head turning is not required.
Do I need a monitor arm for a sit-to-stand desk?
A monitor arm is not mandatory, but it makes it easier to maintain useful screen placement when the desk moves between seated and standing heights. Check that the arm’s height range, weight capacity and mounting method suit the monitor and desk before ordering.
Is the HÅG Capisco suitable for a drafting-height desk?
It can be, provided the selected gas lift, desk height and foot support suit the individual user. A higher seat position needs stable foot support. For higher work surfaces, discuss the right Capisco configuration and footring option with the Chair Dinkum team before purchasing.
How often should I change position during CAD work?
WorkSafe Queensland suggests changing posture every 30 minutes. That may be a small chair adjustment, a brief walk, a change from sitting to standing, or simply moving to another task. The aim is regular variation, not extended standing in one fixed position.[1]
What should I check before buying a monitor arm?
Confirm the monitor weight without its stand, VESA mounting pattern, number of screens, desk thickness, mounting location and cable path. If you use an ultrawide or curved display, also check the manufacturer’s guidance for the monitor’s centre of gravity and compatible arm configuration.
Make the next adjustment practical
Start with one change that removes a daily annoyance, whether that is lifting a monitor clear of the desk, replacing a chair that does not fit the desk height, or adding a footrest to support the feet. Browse Chair Dinkum monitor arms, explore the HÅG range, or contact the Chair Dinkum team for help matching a chair, monitor arm and desk setup. For project and product advice, call 02 9640 0642.
