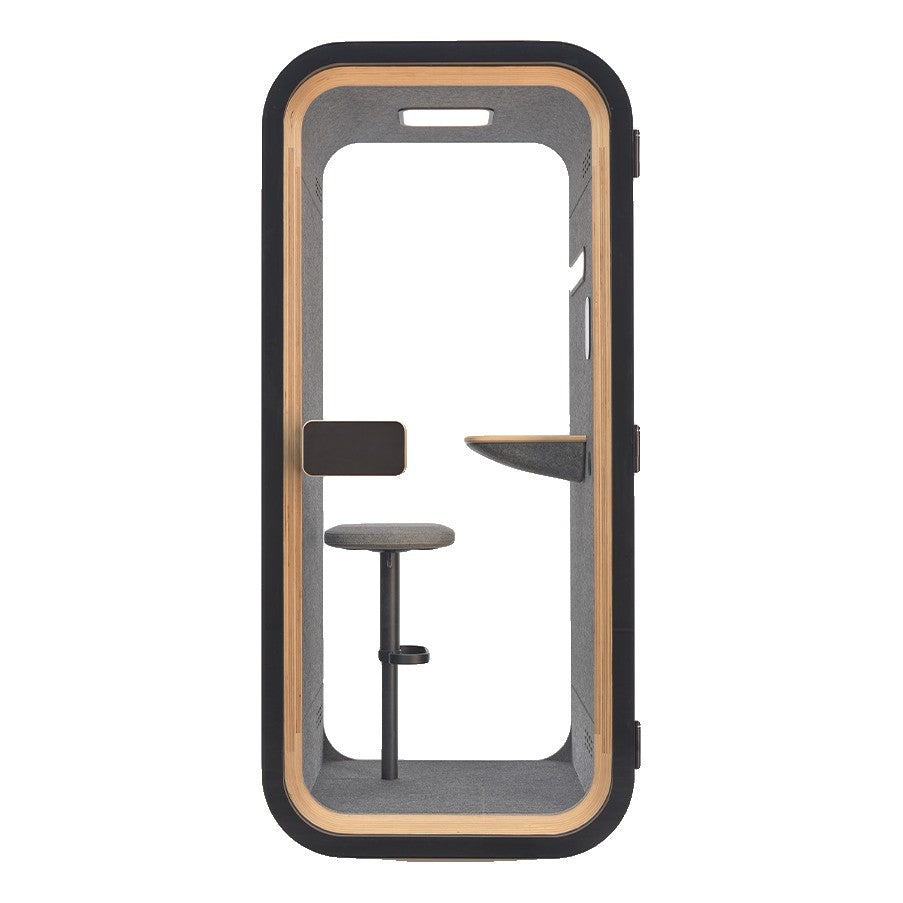

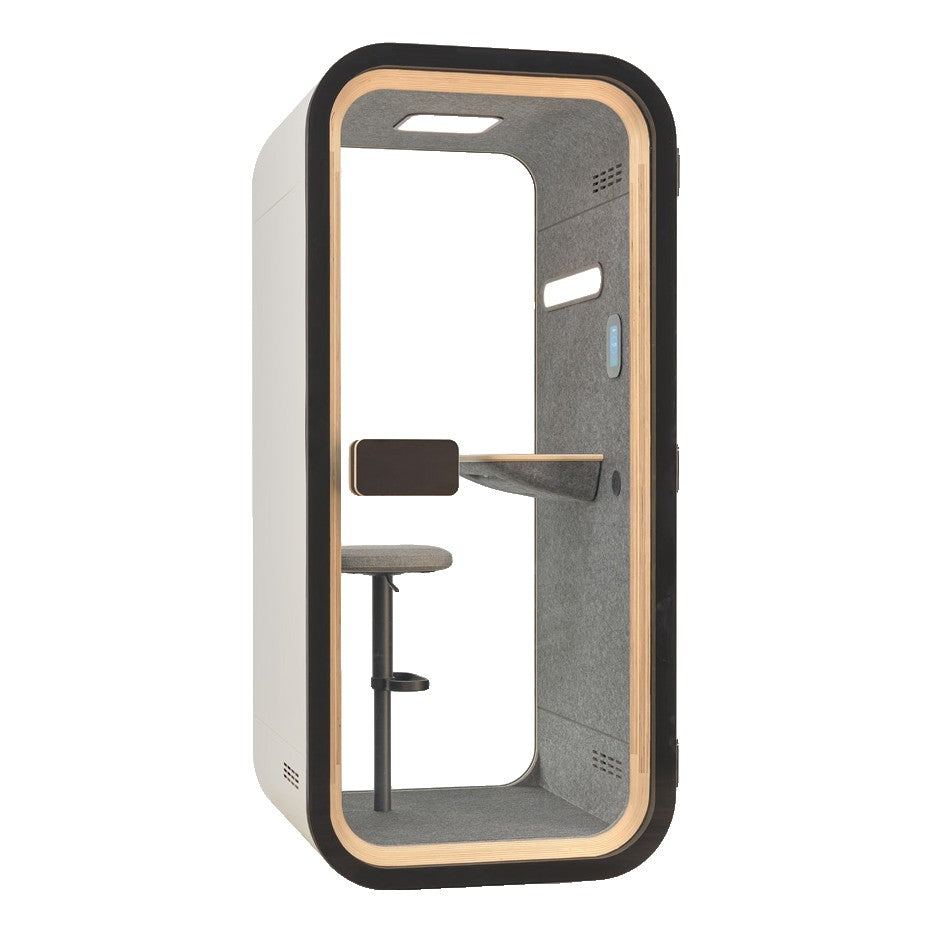

The YADO 100 is a single-person phone booth: a compact, closed room for calls, video meetings and short spells of focused work. A black glass door with a concealed frame and birch plywood handles, a dedicated video light, and a touchscreen for light, air and room booking. In white or black.
YADO 100
Step Out of the Open Plan
Open offices are good at conversation and poor at privacy. The YADO 100 gives one person a closed room on less than a square metre of floor: step in, close the door, take the call.

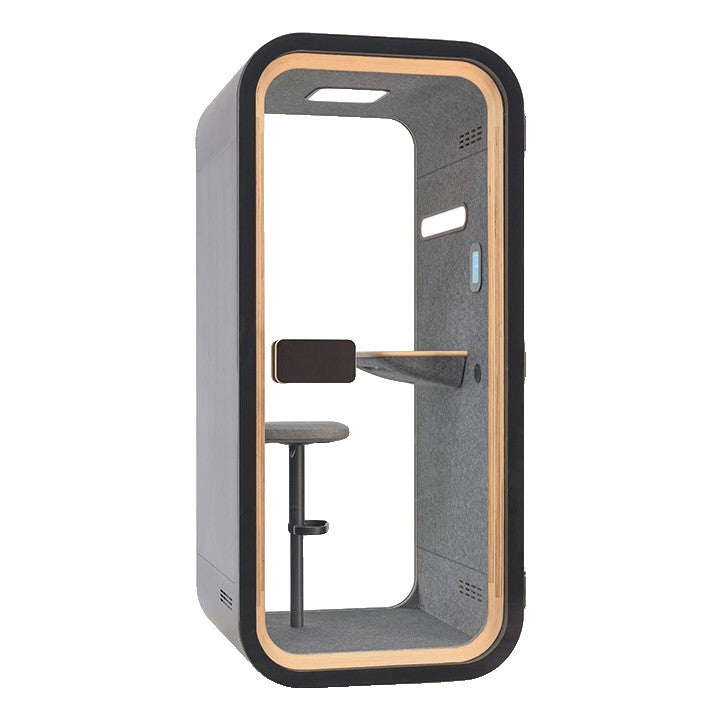

Inside is a high stool and a birch-ply desk shelf, sized for calls, video meetings and short stretches of focused work rather than a full day. For longer sessions, the YADO 120 adds width and a sit-stand desk.
YADO 100
A Quiet Door
The door is black enamelled glass with its frame concealed behind it, finished with birch plywood handles that are easy to push or pull from any side. A birch plywood frame inside the door opening carries the same warm material into the booth.
The manufacturer publishes a speech level reduction of about 30 dB D(S,A) under ISO 23351-1. No pod is completely soundproof; this is a private room for the conversations an open floor shouldn't hear.
YADO 100
Five Things That Make It a YADO 100
Door, light, air, power and finish.
A Black Glass Door
Enamelled glass with a concealed frame and birch plywood handles.
Light for the Camera
A 1000 lm video light alongside a 1700 lm ceiling light.
Touchscreen Control
Set light and ventilation, use presets, and book the booth.
Power at the Desk
A power outlet, USB-A and USB-C charging, and a USB-C data extension.
White or Black
A white or black exterior and a choice of interior felt colours.
The Numbers
- Capacity
- 1 person
- Exterior
- 1000 × 990 × 2200 mm
- Footprint
- 0.99 m²
- Weight
- 405 kg
- Airflow
- Up to 47 L/s
- Power use
- 28 W typical
Figures are the manufacturer's published specifications. Allow 2400 mm of room height.
YADO 100
Plan the Space

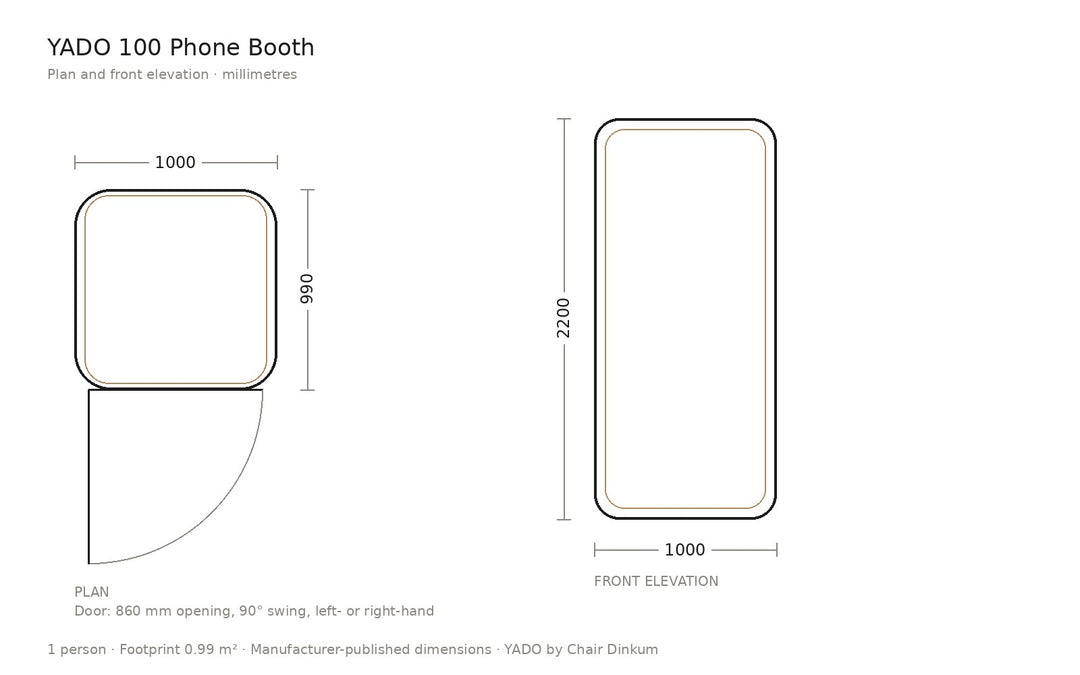

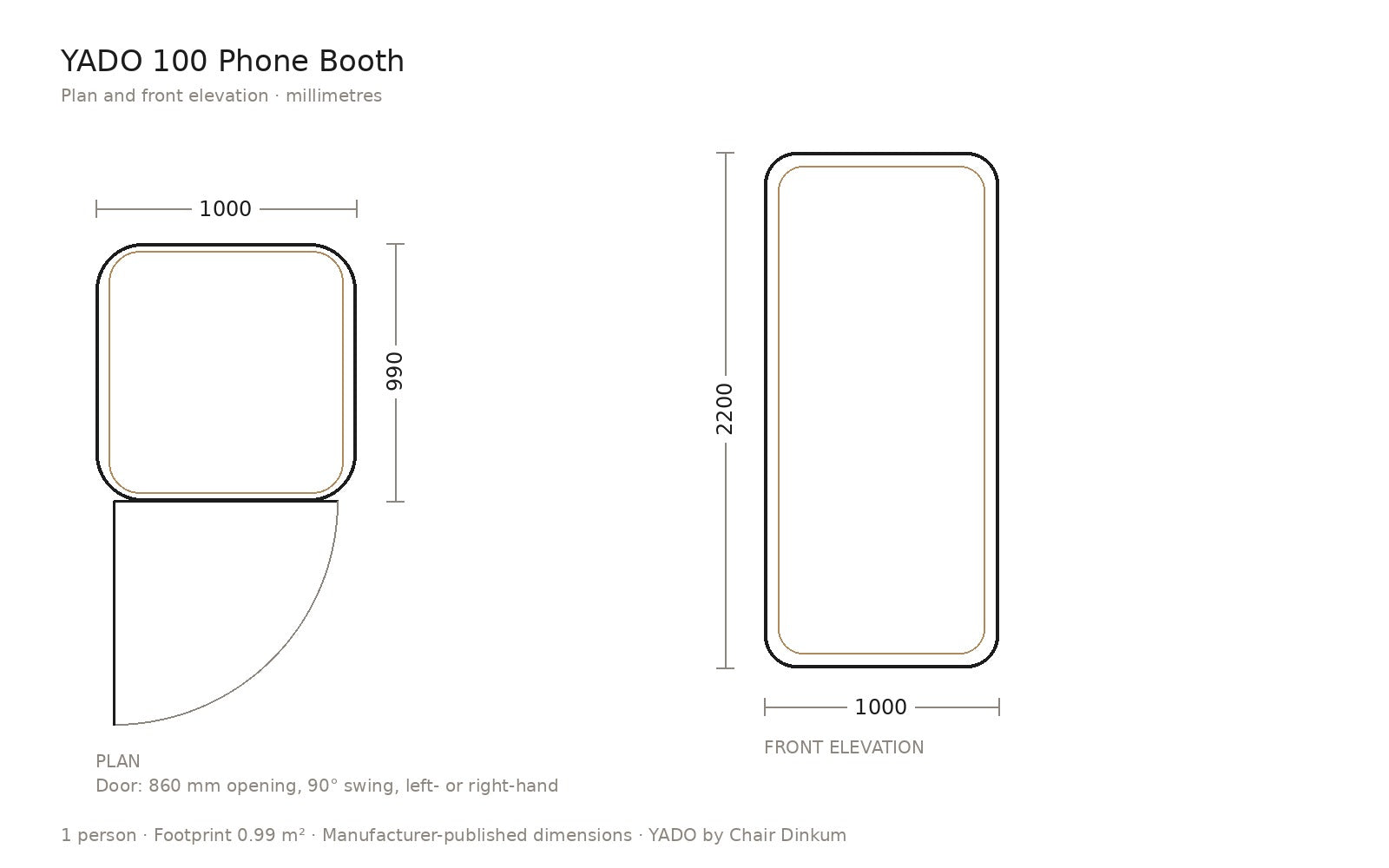

The YADO 100 is 1000 mm wide, 990 mm deep and 2200 mm high, on a footprint of 0.99 m². Allow 2400 mm of room height and 1900 mm front to back so the door can open fully. The door can hang left or right.
It weighs 405 kg and arrives in one crate (2270 × 1130 × 930 mm). We check the lift, corridors and floor with you as part of the quote.
YADO 100
Light, Air and Power, Built In
Two lights do two jobs: a 1700 lm ceiling light brings the desk up to 500 lux, and a separate 1000 lm video light puts up to 400 lux on your face, so you look like yourself on camera.
A presence sensor brings light and air up when someone steps in. Ventilation runs up to 47 L/s and is set on the touchscreen, which also handles room booking. A power outlet, USB-A and USB-C charging sit at the desk.
YADO
Find your YADO
Three sizes, one design language. Compare them on what decides the fit.
| Model | YADO 100Phone booth | YADO 120Focus pod | YADO 220Meeting pod |
|---|---|---|---|
| Best for | Calls, video calls and short focus | Long focus sessions and video calls | Meetings for two to four |
| People | 1 | 1 | 2–4 |
| Exterior (W × D × H) | 1000 × 990 × 2200 mm | 1200 × 990 × 2200 mm | 2200 × 1230 × 2200 mm |
| Footprint | 0.99 m² | 1.19 m² | 2.71 m² |
| Speech privacy | About 30 dB (ISO 23351-1) | Class A, 30 dB | Tested to ISO 23351-1; figure not published |
| Work surface | Desk shelf, high stool | Electric sit-stand desk, adjustable seat | Table for four, two facing sofas |
| Ventilation | Up to 47 L/s, touchscreen | Adjustable dual fan, presence sensing | 4-channel, up to 132 L/s, 30 s air change |
| Lighting | 1700 lm ceiling light + video light | 1700 lm ceiling light + video light | 2500 lm, video preset |
| Power | Outlet, USB-A, USB-C | Outlet, USB-A, USB-C | Outlet, USB-A, USB-C |
| Weight | 405 kg | 405 kg | 671 kg |
Phone booth · this model
YADO 100
The smallest footprint in the range.
- Best for
- Calls, video calls and short focus
- People
- 1
- Footprint
- 0.99 m²
- Speech privacy
- About 30 dB (ISO 23351-1)
- Work surface
- Desk shelf, high stool
Focus pod
YADO 120
200 mm wider inside than the 100, with a desk that moves.
- Best for
- Long focus sessions and video calls
- People
- 1
- Footprint
- 1.19 m²
- Speech privacy
- Class A, 30 dB
- Work surface
- Electric sit-stand desk, adjustable seat
Meeting pod
YADO 220
Seats up to four around a table.
- Best for
- Meetings for two to four
- People
- 2–4
- Footprint
- 2.71 m²
- Speech privacy
- Tested to ISO 23351-1; figure not published
- Work surface
- Table for four, two facing sofas
Features & Specifications
Key Features
-Phone booth for 1 person: calls, video calls and short focus sessions
-Speech privacy: the manufacturer publishes a speech level reduction of about 30 dB D(S,A) under ISO 23351-1 (figures of 29.4 and 30 dB both appear)
-Ventilation: Ventilation adjustable on the touchscreen, up to 47 L/s (170 m³/h); full air change in under 60 seconds
-Lighting: Ceiling light 4000 K, CRI over 90, 1700 lm, up to 500 lux at the desk; video light 4000 K, 1000 lm, up to 400 lux on the face
-Furniture: High stool and a birch-ply desk shelf
-Controls: Touchscreen control of light and ventilation, with presets and room booking; presence sensor
-Glass: Black enamelled glass door with a concealed frame
-Door: Black enamelled glass door with a concealed frame and birch plywood handles; 860 × 2046 mm opening, 90° swing, left- or right-hand
-Power use: 28 W typical, 37 W maximum, 6 W standby
-Powder-coated steel exterior on a solid birch plywood frame
-Acoustic PET felt interior, laminated with recycled polyester fabric
-Low-pile, antistatic, stain-resistant carpet
-Presence sensor: light and ventilation respond when someone is inside
-Power outlet, USB-A and USB-C charging (25 W) and a USB-C data extension; optional extra outlet, 45 W USB and LAN
-Input 100–240 VAC, 50–60 Hz
-3D-adjustable hinges; self-closing door available
-Options: castor kit for moving on the same floor, anchoring kit, occupancy light
-Exterior: White (RAL 9016) or Black (RAL 9005); Light Grey, Green, Salmon Orange, Traffic Red and Cobalt Blue on request
-Interior acoustic felt in 14 colours
-Country of manufacture: China
Dimensions
Capacity1 person
Exterior (W × D × H)1000 × 990 × 2200 mm
Interior (W × D × H)800 × 930 × 2000 mm
Footprint0.99 m²
Weight405 kg
Room height needed2400 mm
Speech privacyAbout 30 dB D(S,A), ISO 23351-1
Power use28 W typical
ShippingOne crate, 2270 × 1130 × 930 mm, 452 kg
The manufacturer publishes ISO 23351-1 figures of 29.4 and 30 dB D(S,A) for this model; ask us for the latest test information. No pod is completely soundproof. Dimensions, weights and power figures are the manufacturer's published specifications. Warranty terms are confirmed with your quote.
Frequently Asked Questions
The manufacturer publishes a speech level reduction of about 30 dB D(S,A) under ISO 23351-1 for this model (figures of 29.4 and 30 dB both appear). Conversation inside becomes much harder to understand from outside, and office noise is reduced for the person inside. No pod is completely soundproof; ask us for the latest test information.
Choose the YADO 100 for calls, video meetings and short focus sessions at a desk shelf with a high stool, on the smallest footprint (0.99 m²). Choose the YADO 120 for longer work: it is 200 mm wider inside and has an electric sit-stand desk and an adjustable seat.
Yes. The touchscreen controls light and ventilation and includes room booking, so the booth can be reserved and its status seen at a glance. An occupancy light on top is available as an option.
No. The YADO 100 is freestanding. A seismic anchoring kit is available where your building or certifier asks for one, and a castor kit lets the booth be moved on the same floor without dismantling it.
Yes. The light, fans and charging outlets run from mains power (100–240 VAC input, 28 W typical), so the booth needs a power point within reach of its cable. We confirm the connection for your site with your quote.
The booth arrives in one crate and is assembled in position. We quote delivery and installation for your site, Australia-wide, and check access, lifts and floor loading with you first. In New South Wales, Building Commission NSW guidance treats an office pod as a room, so installation is building work and your certifier's requirements apply; we can supply the product information we hold. Call 02 9640 0642.
