Will a Monitor Arm Fit My Desk? A 4-Step Compatibility Checklist
You want to reclaim your desk space and improve your posture, but you are not sure if a monitor arm will actually attach to your desk. It is the most common question we get from home office buyers, and getting it wrong means returning a heavy, bulky product.
The short answer: yes, a monitor arm will fit your desk if your desk surface is flat, made of solid material (not glass), within the clamp range published for the arm you are buying, and your monitor has four square mounting holes on the back. Published clamp ranges vary widely — the CBS Flo split clamp covers 0 to 65 mm, the Chair Dinkum Float covers 10 to 50 mm — so check the arm rather than assuming a universal figure.
Before you buy, run through this practical four-step checklist to guarantee your new monitor arm will clamp securely and hold your screen safely.
Step 1: Check Your Desk Material
Everything the arm holds is carried by one small patch of desktop, so clamp over solid material and, where you can, near a leg or frame member.
A monitor arm acts as a lever. When you pull the screen toward you, it exerts significant twisting force on the desk surface. Therefore, the material of your desk is the most critical factor.
Materials that work perfectly: Solid timber, high-quality MDF, thick plywood, and bamboo. These materials can easily withstand the clamping pressure without cracking.
Materials to avoid: Glass desks will shatter under the pressure of a C-clamp. Very thin hollow-core desks (like some cheap flat-pack furniture) can crush or cave in when the clamp is tightened. If you have a hollow-core desk, you must use a metal reinforcement plate to distribute the load.
Step 2: Measure Your Desk Thickness and Edge
Thickness is only half the measurement. The clamp also needs flat, unobstructed surface top and bottom — a bevel, a lip or a frame rail under the edge will defeat it.
Most monitor arms attach using a clamp that wraps around the back edge of your desk. You need to verify two things: the thickness of the desktop and the shape of the edge.

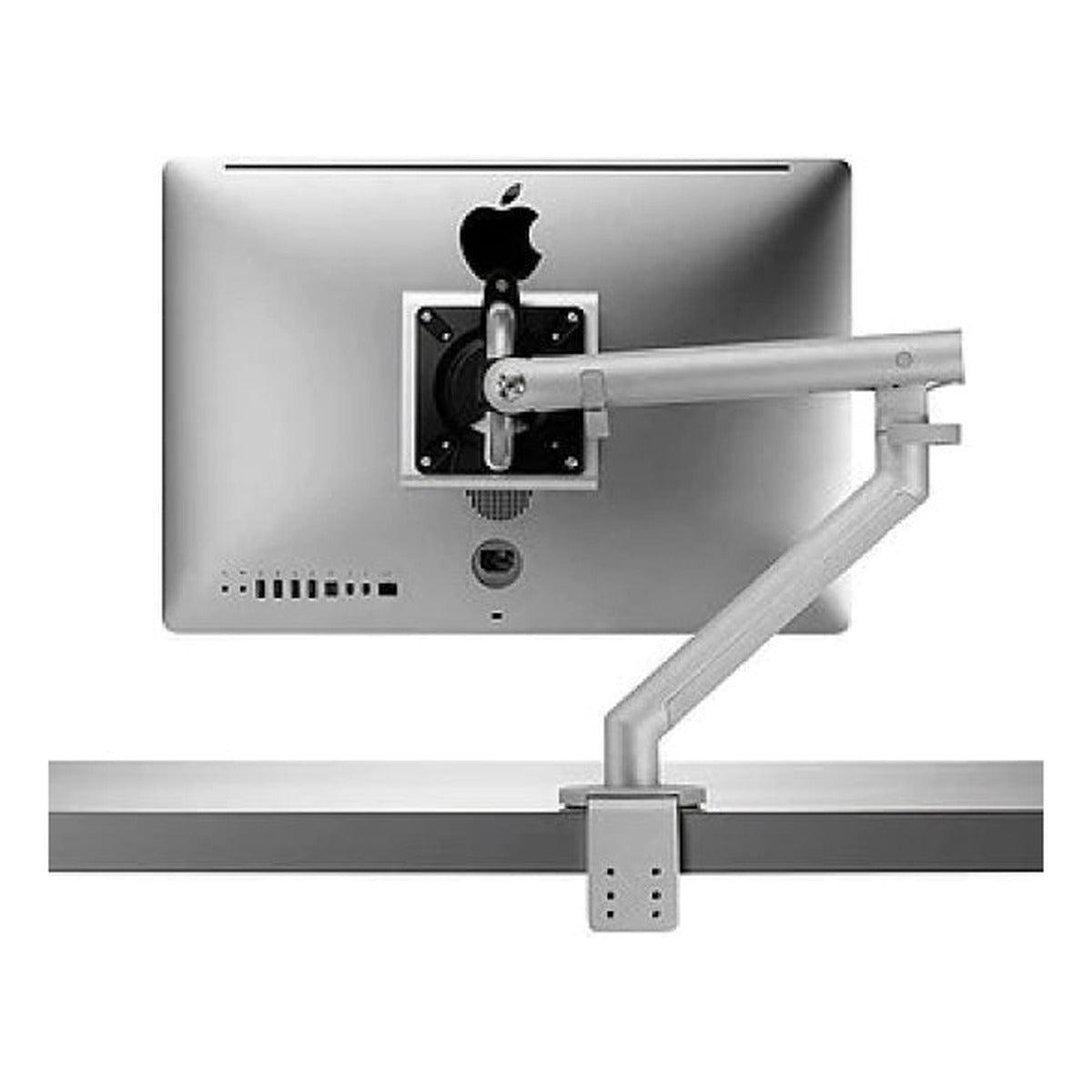

The CBS Flo Single Monitor Arm uses a split clamp rated for desk tops from 0 to 65 mm, with a top-mount option for 12 to 25 mm and a grommet option for 10 to 35 mm. The Chair Dinkum Float covers 10 to 50 mm and ships with both a clamp and a grommet kit in every box. Whichever arm you choose, measure your desktop and check it against that arm's published range rather than a general rule of thumb.
Equally important is the edge profile. The clamp needs a flat surface on both the top and bottom of the desk to grip securely. If your desk has a bevelled edge, a lip, or a metal support frame running directly under the back edge, a standard clamp may not have enough flat surface area to bite onto. In these cases, you will need to use a grommet mount instead.
Step 3: Clamp vs Grommet Mounting
Float ships with clamp and grommet kits for 10–50 mm tops and is fitted entirely from above, which is the difference between a ten-minute job and an afternoon on your back.
If the back edge of your desk is blocked, you have a second option: grommet mounting.
A grommet mount requires drilling a small hole (usually 8mm to 12mm) directly through your desktop. A bolt passes through this hole and secures the arm from underneath. While drilling a hole sounds permanent, it offers two major advantages: it provides the most secure mount possible, and it allows you to position the monitor arm exactly where you want it, rather than being restricted to the back edge.
Most premium arms, including the CBS Ollin, come with both clamp and grommet mounting hardware in the box. So does the Chair Dinkum Float, which has one further advantage worth knowing about if you dislike crawling around under furniture: it installs entirely from above the desk surface, so every fixing is reached from the top and you never have to lie underneath the desk to tighten a clamp you cannot see.
Step 4: Check Your Monitor (VESA and Weight)
Finally, check the monitor itself. Look at the back of your screen. You should see four threaded screw holes arranged in a square. This is the VESA mount standard. Almost all modern monitors use either a 75mm x 75mm or 100mm x 100mm square pattern. If your monitor does not have these holes, it is not compatible with standard monitor arms.
Next, check the weight of your monitor (without its factory stand). Monitor arms use gas or spring tension to hold the screen in place, and they have strict weight limits.
| Monitor Arm Model | Weight Capacity | Desk Thickness | Best For |
|---|---|---|---|
| CBS Ollin | 0 kg to 9 kg | Split clamp 0–65 mm, grommet 10–35 mm | Lightweight monitors and laptops |
| CBS Flo | 2 kg to 7 kg | Split clamp 0–65 mm, grommet 10–35 mm | Standard 24" to 27" office monitors |
| ZGONIC ZG1-DS | 3 kg to 11 kg | Top-down clamp 16–33 mm and 33–50 mm | Heavier or ultrawide screens |
| Chair Dinkum Float | 2 kg to 11 kg (curved 2 kg to 10 kg) | 10–50 mm, clamp and grommet both included | 17" to 40" screens, tricky desks, top-down install |
If your monitor is too light, the arm will spring upward and refuse to stay down. If it is too heavy, the screen will sag to the desk.
Frequently Asked Questions
Can I use a monitor arm on a standing desk?
Yes, and it is highly recommended. As noted in our standing desk setup guide, your posture changes when you stand. A monitor arm allows you to quickly adjust the screen height when you transition from sitting to standing.
Will a monitor arm damage my desk?
A quality clamp will not damage a solid wood or MDF desk. However, to prevent scratching the surface, most premium clamps feature a rubber or foam pad. If you are concerned about a soft timber finish, you can place a thin piece of felt or a metal reinforcement plate between the clamp and the desk.
What if I cannot get underneath my desk to install the arm?
Choose an arm that installs from above. The Chair Dinkum Float is fitted entirely from the top of the desk surface, so nothing has to be reached or tightened from underneath. That matters on built-in furniture, on desks with deep cable trays, and for anyone who would rather not spend twenty minutes on their back under a workstation.
Do I need a dual arm for two monitors?
If you use two screens, a dedicated dual monitor arm is cleaner and requires only one mounting point on your desk. However, using two separate single arms gives you slightly more flexibility in positioning, especially if you have a very deep desk.
The Bottom Line
Checking compatibility takes two minutes and saves hours of frustration. Verify your desk material, measure the edge thickness, check for VESA holes on your screen, and confirm the weight capacity.
