The YADO 220 is a meeting pod for two to four people: a room within the room for private meetings, collaboration and video conferences. A black glass front with concealed frames, facing sofas and a table inside, 4-channel ventilation that changes the air in 30 seconds, and a touchscreen with room booking. In white or black.
YADO 220
The Meeting Room Without the Booking Fight
Most conversations that need privacy don't need a boardroom. The YADO 220 puts a room for two to four people on the open floor, so a one-to-one, a client call or a small team check-in can happen where the team already works.
It stands on 2.71 m², needs no construction, and can be planned into an existing fit-out.
YADO 220

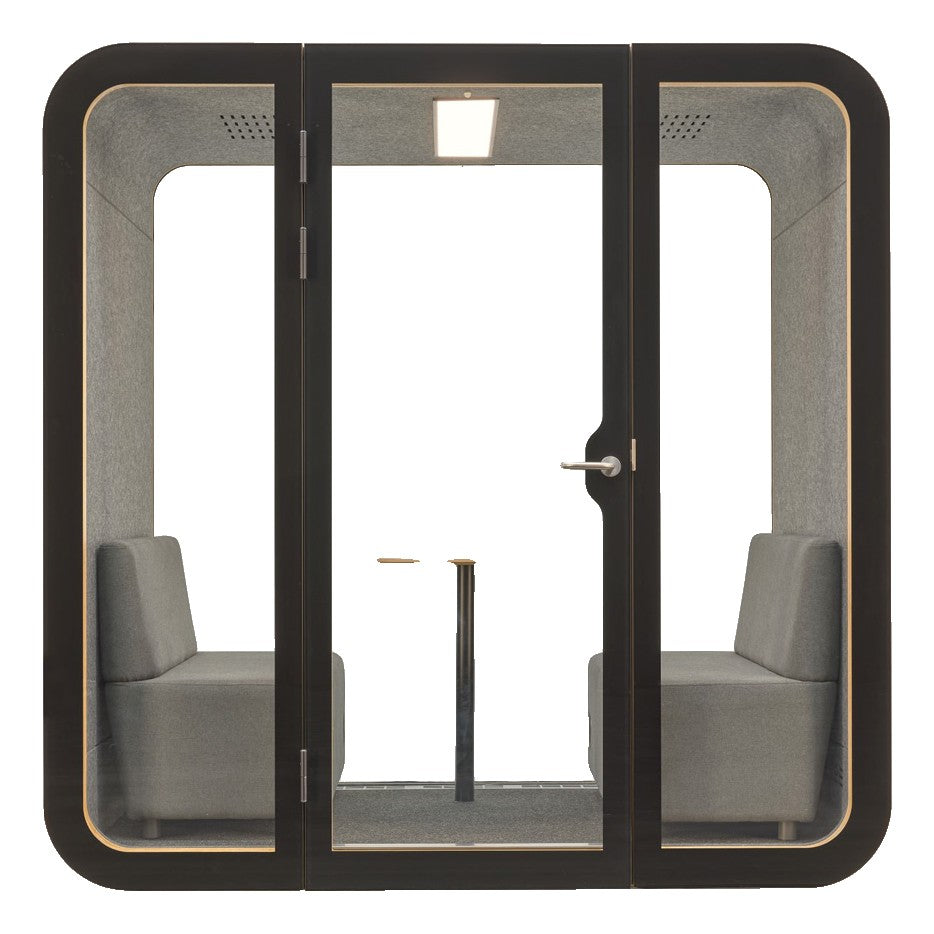

A Quiet Front
The front is 8 mm enamelled glass with the door and window frames concealed behind it, so the pod reads as one calm surface rather than a grid of frames. The rear is 5 + 5 mm laminated sound-control glass.

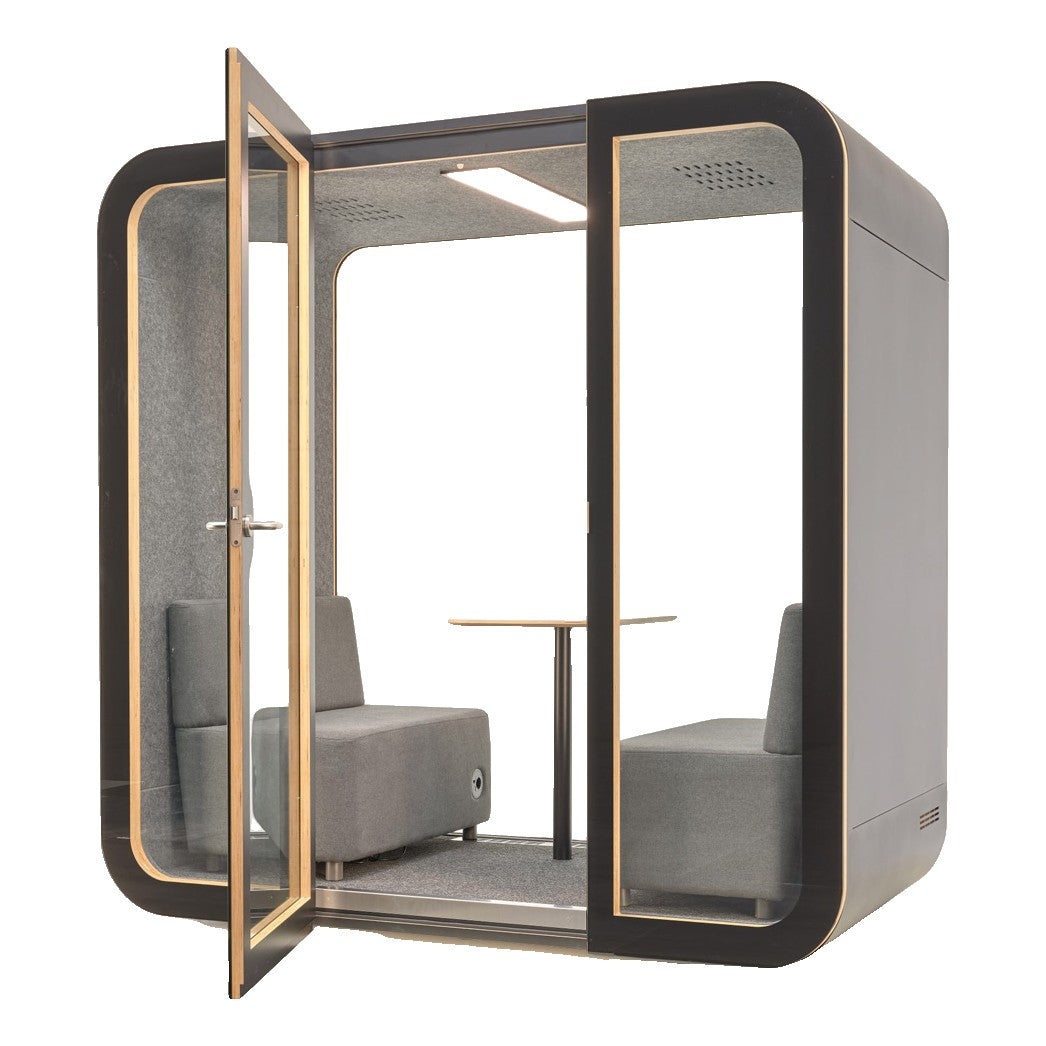

A single glazed door in the centre opens through 180°, and an occupancy light on top shows from across the floor whether the room is free, booked or in use.
YADO 220
Five Things That Make It a YADO 220
Front, air, light, booking and finish.
A Black Glass Front
8 mm enamelled glass with concealed frames and a single centre door.
Air for Four
66 L/s by default, up to 132 L/s; a full air change in 30 seconds.
Light for Video Calls
4000 K, CRI over 90, 2500 lm, with standard and video-call presets.
Bookable
Book the pod from a phone or PC, or at the pod, and extend on the touchscreen.

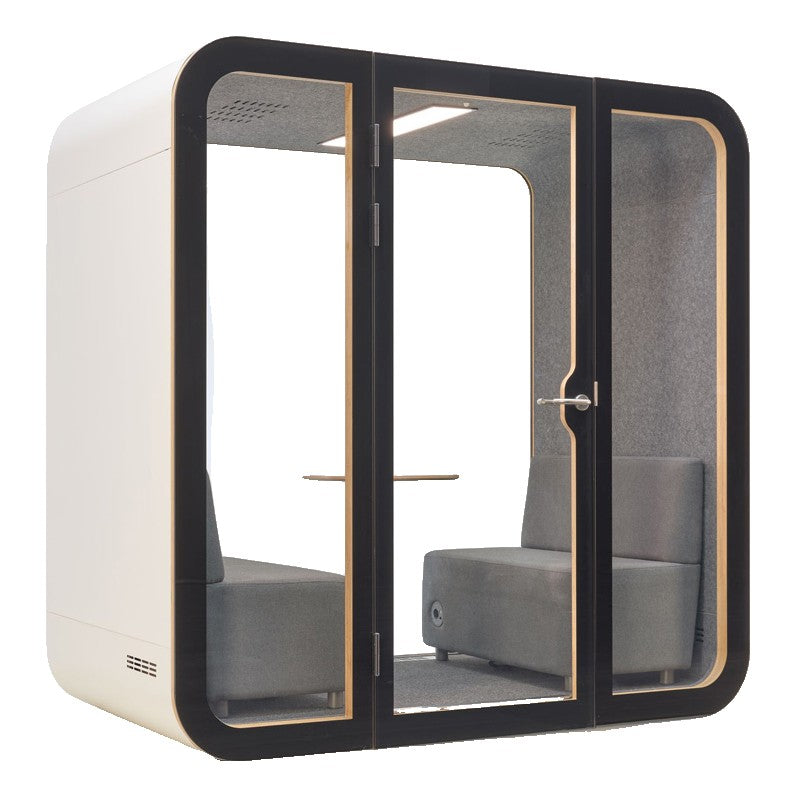

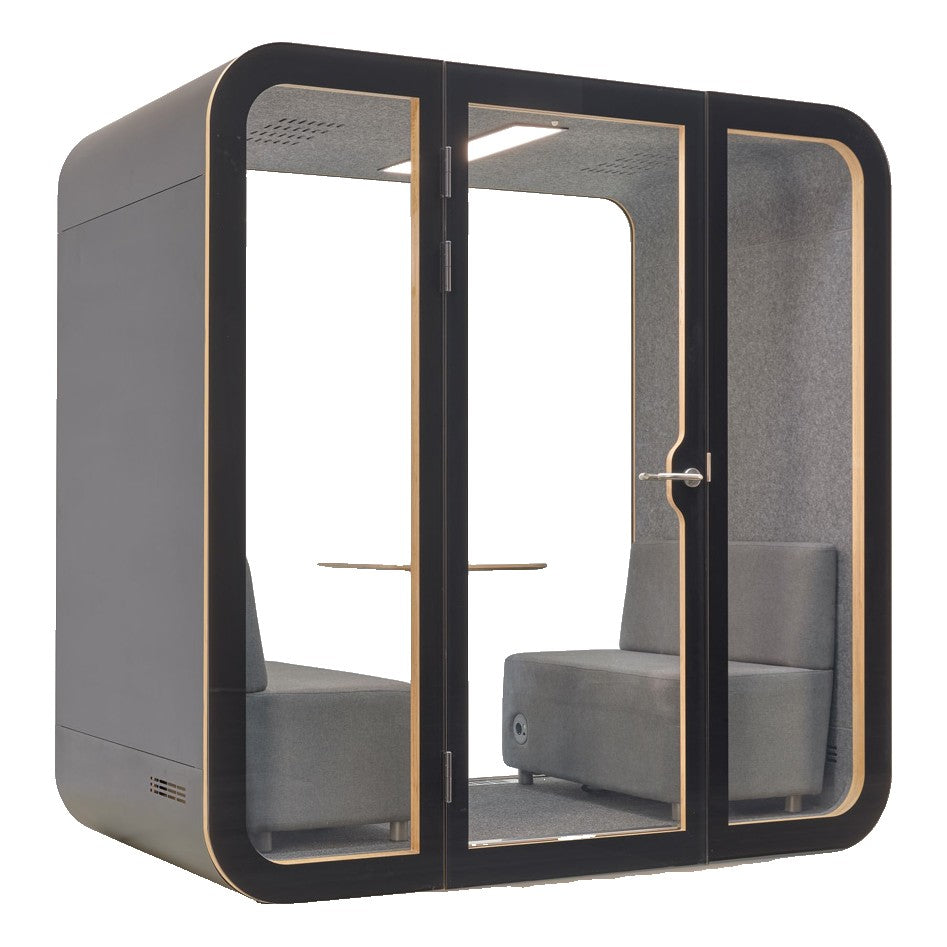

White or Black
A white or black exterior behind the black glass front, and 14 interior felt colours.
The Numbers
- Capacity
- 2–4 people
- Exterior
- 2200 × 1230 × 2200 mm
- Footprint
- 2.71 m²
- Weight
- 671 kg
- Air change
- 30 seconds
- Airflow
- Up to 132 L/s
Figures are the manufacturer's published specifications. Allow 2400 mm of room height.
YADO 220
Face to Face, With Fresh Air
Two upholstered sofas face each other across a 700 × 530 mm table, with a 440 mm seat height for a relaxed conversation or an hour with laptops open. Four people fit; two have room to spread out.
Four fan channels with vibration damping move 66 L/s by default and up to 132 L/s, and the manufacturer states a full air change takes 30 seconds. The 2500 lm, 4000 K light has standard and video-call presets on the touchscreen.
YADO 220
Plan the Space

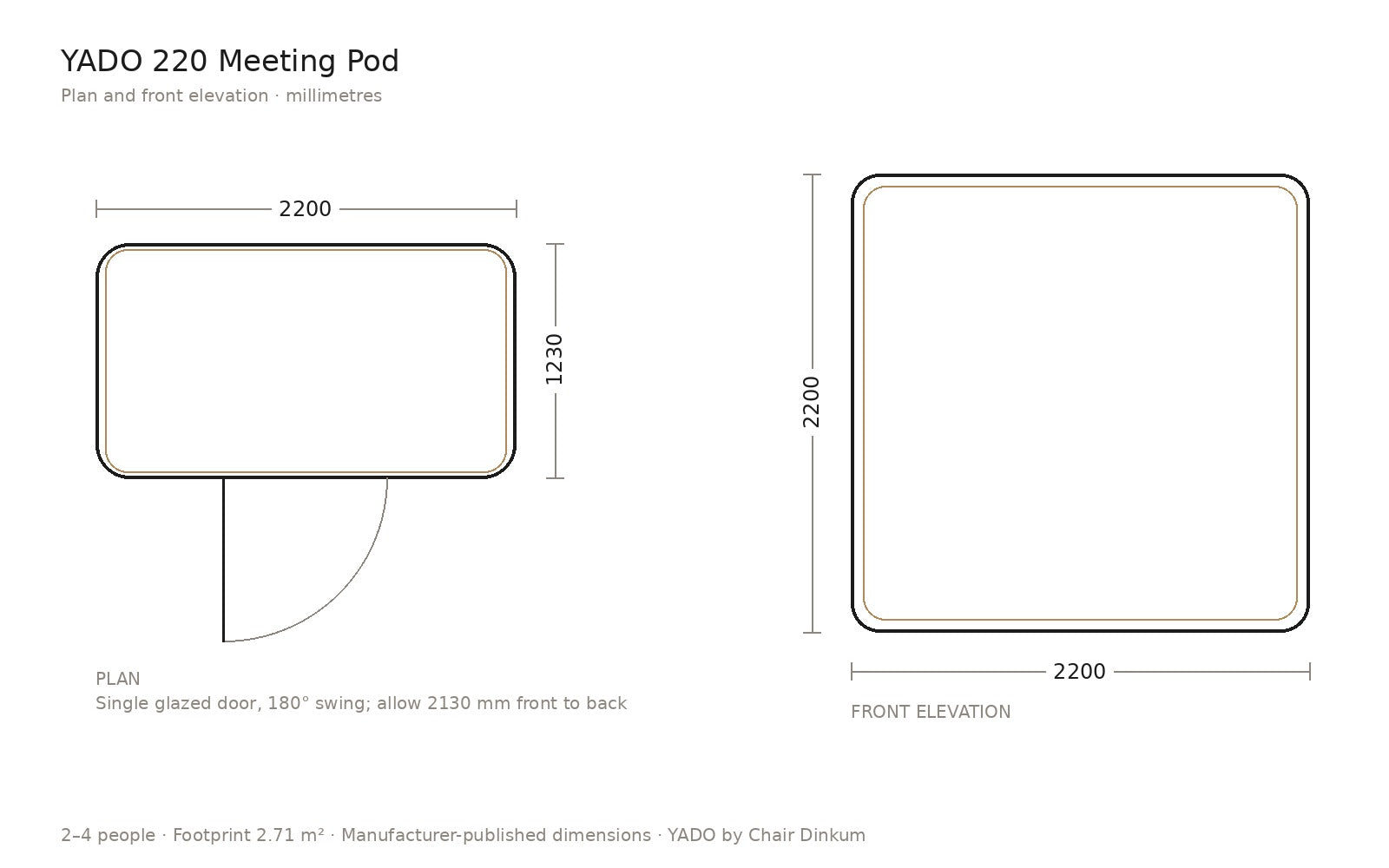

The YADO 220 is 2200 mm wide, 1230 mm deep and 2200 mm high. Allow 2400 mm of room height, 2130 mm front to back for the door, and 500 mm around the pod for installation.
It weighs 671 kg and arrives in two crates (2270 × 1020 × 1320 mm at 712 kg, and a smaller crate of 46 kg). We check the lift, corridors and floor loading with you as part of the quote.
YADO
Find your YADO
Three sizes, one design language. Compare them on what decides the fit.
| Model | YADO 100Phone booth | YADO 120Focus pod | YADO 220Meeting pod |
|---|---|---|---|
| Best for | Calls, video calls and short focus | Long focus sessions and video calls | Meetings for two to four |
| People | 1 | 1 | 2–4 |
| Exterior (W × D × H) | 1000 × 990 × 2200 mm | 1200 × 990 × 2200 mm | 2200 × 1230 × 2200 mm |
| Footprint | 0.99 m² | 1.19 m² | 2.71 m² |
| Speech privacy | About 30 dB (ISO 23351-1) | Class A, 30 dB | Tested to ISO 23351-1; figure not published |
| Work surface | Desk shelf, high stool | Electric sit-stand desk, adjustable seat | Table for four, two facing sofas |
| Ventilation | Up to 47 L/s, touchscreen | Adjustable dual fan, presence sensing | 4-channel, up to 132 L/s, 30 s air change |
| Lighting | 1700 lm ceiling light + video light | 1700 lm ceiling light + video light | 2500 lm, video preset |
| Power | Outlet, USB-A, USB-C | Outlet, USB-A, USB-C | Outlet, USB-A, USB-C |
| Weight | 405 kg | 405 kg | 671 kg |
Phone booth
YADO 100
The smallest footprint in the range.
- Best for
- Calls, video calls and short focus
- People
- 1
- Footprint
- 0.99 m²
- Speech privacy
- About 30 dB (ISO 23351-1)
- Work surface
- Desk shelf, high stool
Focus pod
YADO 120
200 mm wider inside than the 100, with a desk that moves.
- Best for
- Long focus sessions and video calls
- People
- 1
- Footprint
- 1.19 m²
- Speech privacy
- Class A, 30 dB
- Work surface
- Electric sit-stand desk, adjustable seat
Meeting pod · this model
YADO 220
Seats up to four around a table.
- Best for
- Meetings for two to four
- People
- 2–4
- Footprint
- 2.71 m²
- Speech privacy
- Tested to ISO 23351-1; figure not published
- Work surface
- Table for four, two facing sofas
Features & Specifications
Key Features
-Meeting pod for 2–4 people: private meetings, collaboration and video conferences
-Speech privacy: tested to ISO 23351-1 by SGS, according to the manufacturer; no figure or class is published for this model
-Ventilation: 4-channel ventilation with vibration damping: 66 L/s (238 m³/h) by default, up to 132 L/s (476 m³/h); full air exchange in 30 seconds
-Lighting: 4000 K LED, CRI over 90, 2500 lm over a 1500 cm² panel, up to 500 lux at the table; standard and video-call presets
-Furniture: Two facing sofas (1050 × 600 mm, seat height 440 mm) in polyester fabric, and a table (700 × 530 mm, 660 mm high)
-Controls: Touchscreen for light and ventilation, with room booking over Wi-Fi; presence sensor; external occupancy light
-Glass: Front: 8 mm enamelled glass with concealed door and window frames. Rear: 5 + 5 mm laminated sound-control glass
-Door: Single glazed door in the centre of the front, 180° swing; opening 860 × 2046 mm
-Power use: 28 W typical, 59 W maximum, 6 W standby
-Powder-coated steel exterior on a solid birch plywood frame
-Acoustic PET felt interior, laminated with recycled polyester fabric
-Low-pile, antistatic, stain-resistant carpet
-Presence sensor: light and ventilation respond when someone is inside
-Power outlet, USB-A and USB-C charging (25 W) and a USB-C data extension; optional extra outlet, 45 W USB and LAN
-Input 100–240 VAC, 50–60 Hz
-3D-adjustable hinges; self-closing door available
-Options: castor kit for moving on the same floor, anchoring kit, occupancy light
-Exterior: White (RAL 9016) or Black (RAL 9005); Light Grey, Green, Salmon Orange, Traffic Red and Cobalt Blue on request
-Interior acoustic felt in 14 colours
-Country of manufacture: China
Dimensions
Capacity2–4 people
Exterior (W × D × H)2200 × 1230 × 2200 mm
Interior (W × D × H)2000 × 1210 × 2000 mm
Footprint2.71 m²
Weight671 kg
Room height needed2400 mm
Speech privacyTested to ISO 23351-1; figure not published
Power use28 W typical
ShippingTwo crates: 2270 × 1020 × 1320 mm (712 kg) and 1100 × 900 × 900 mm (46 kg)
The manufacturer states this model holds an SGS Performance Tested mark under ISO 23351-1 but does not publish a D(S,A) figure or class; ask us for the latest test information. No pod is completely soundproof. Dimensions, weights and power figures are the manufacturer's published specifications. Warranty terms are confirmed with your quote.
Frequently Asked Questions
The manufacturer states the YADO 220 holds an SGS Performance Tested mark for quiet performance under ISO 23351-1, but it does not publish a speech level reduction figure or class for this model. Ask us for the latest test information before you order. No pod is completely soundproof.
Two to four. There are two facing sofas (1050 × 600 mm each) and a table of 700 × 530 mm. Four people fit for a meeting; two have room to work face to face.
The manufacturer publishes 66 L/s by default and up to 132 L/s from four fan channels, with a full air change in 30 seconds. Ventilation and light are set on the touchscreen.
Yes. It has a touchscreen and a booking system: the pod can be reserved from a phone or PC, or at the pod, and a booking can be extended on the touchscreen. It connects over Wi-Fi. We confirm how it fits your IT setup with your quote.
No. The YADO 220 is freestanding. A seismic anchoring kit is available where your building or certifier asks for one, and an optional mobility kit with six low-profile wheels lets it be moved on the same floor.
The pod arrives in two crates and is assembled in position. It needs a power point within reach of its cable (28 W typical). We quote delivery and installation for your site, Australia-wide, and check access, lifts and floor loading with you first. In New South Wales, Building Commission NSW guidance treats an office pod as a room, so installation is building work and your certifier's requirements apply; we can supply the product information we hold. Call 02 9640 0642.
